STANDARD CONFIGURATION
Please use "notes" field below to specify any additions or modifications on your order. You may also include specific colors. We will contact you upon receipt of your order
FEATURED ADD ONS
DESIGN MODIFICATIONS
1-800-GO SOTAR

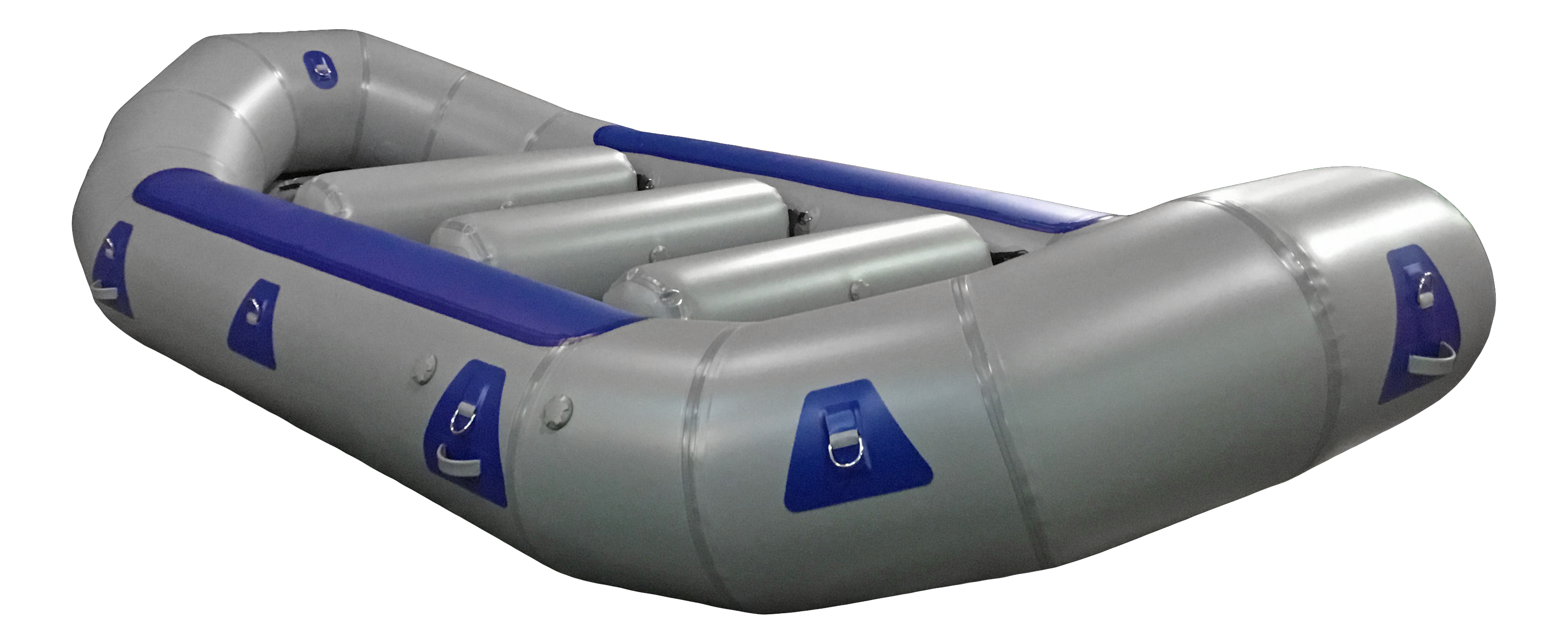

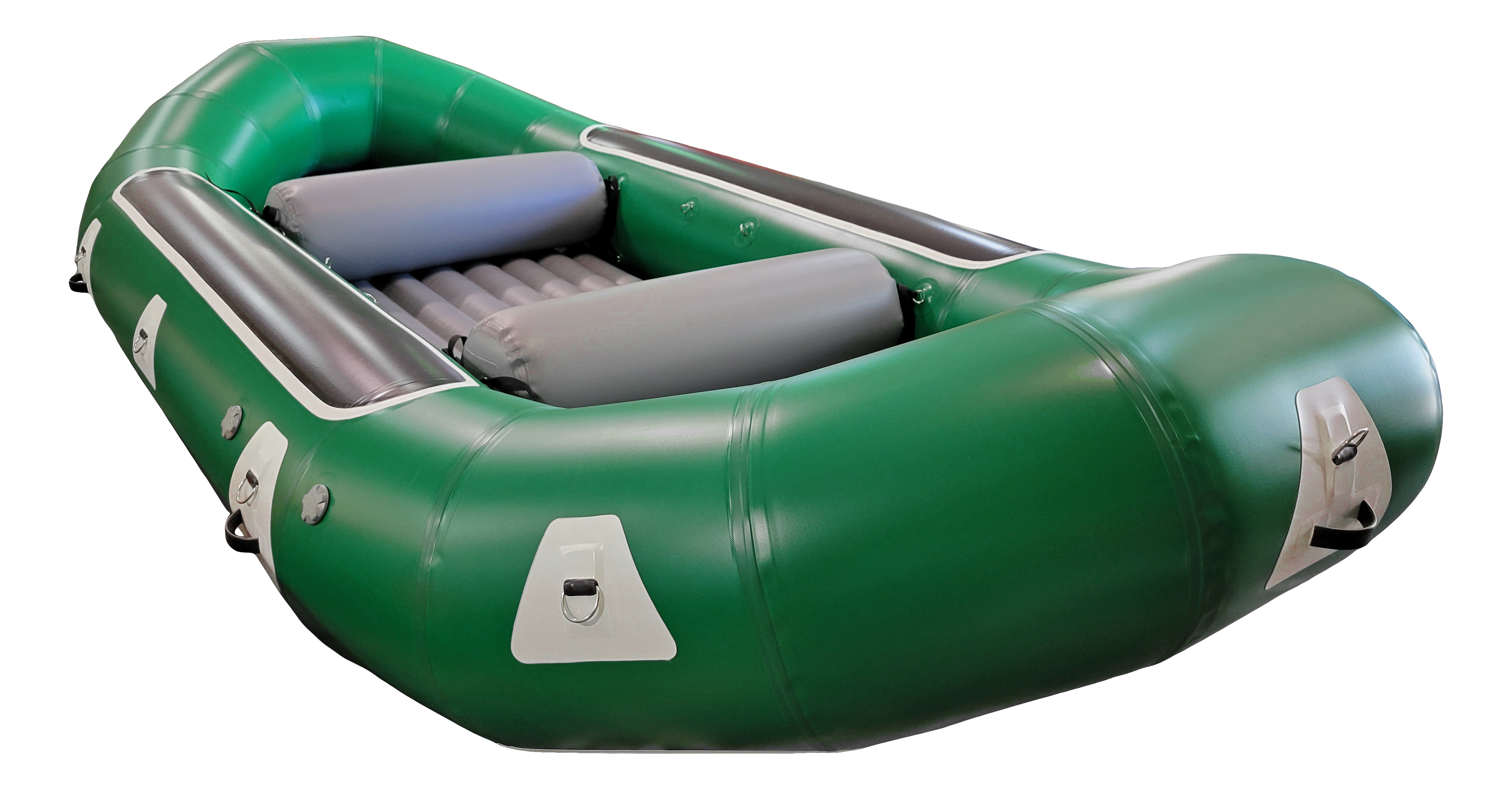

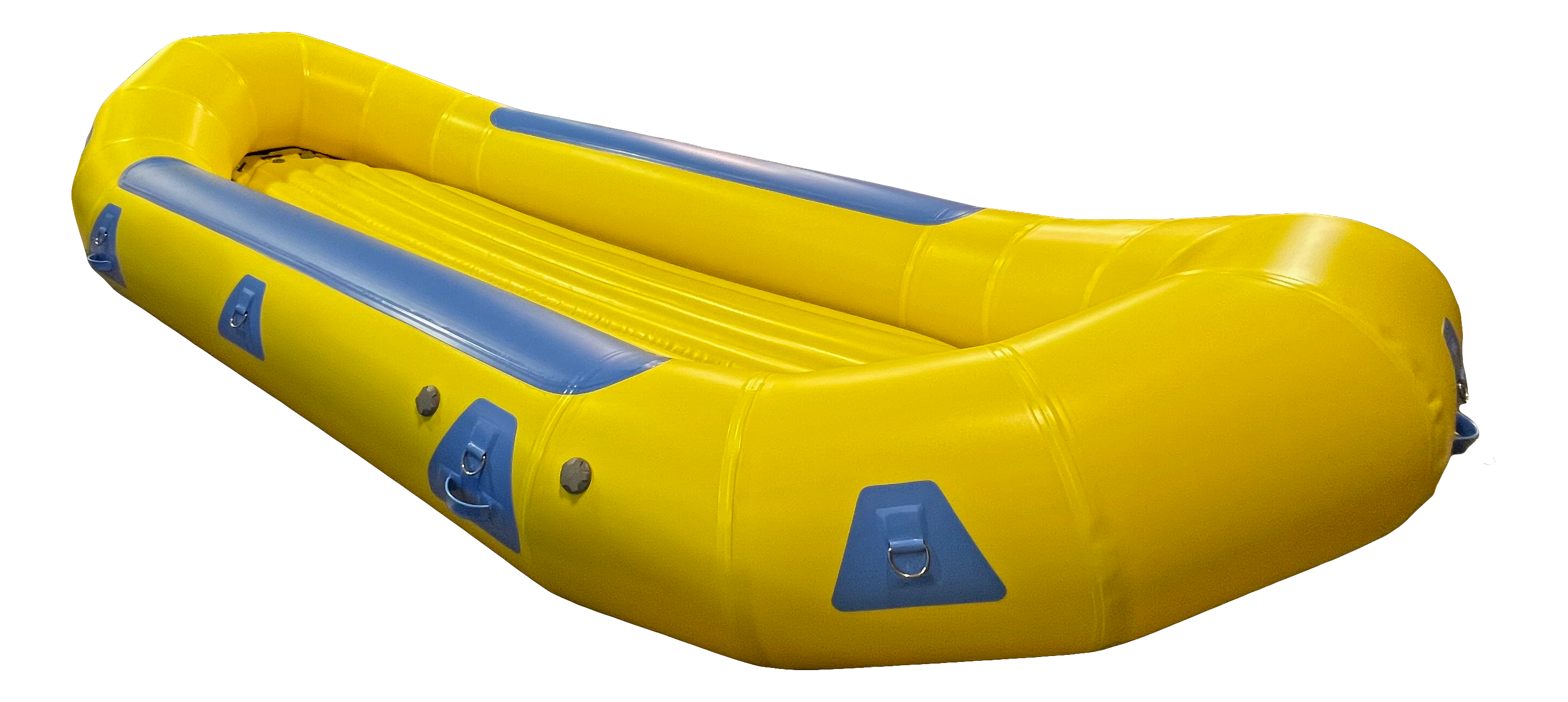

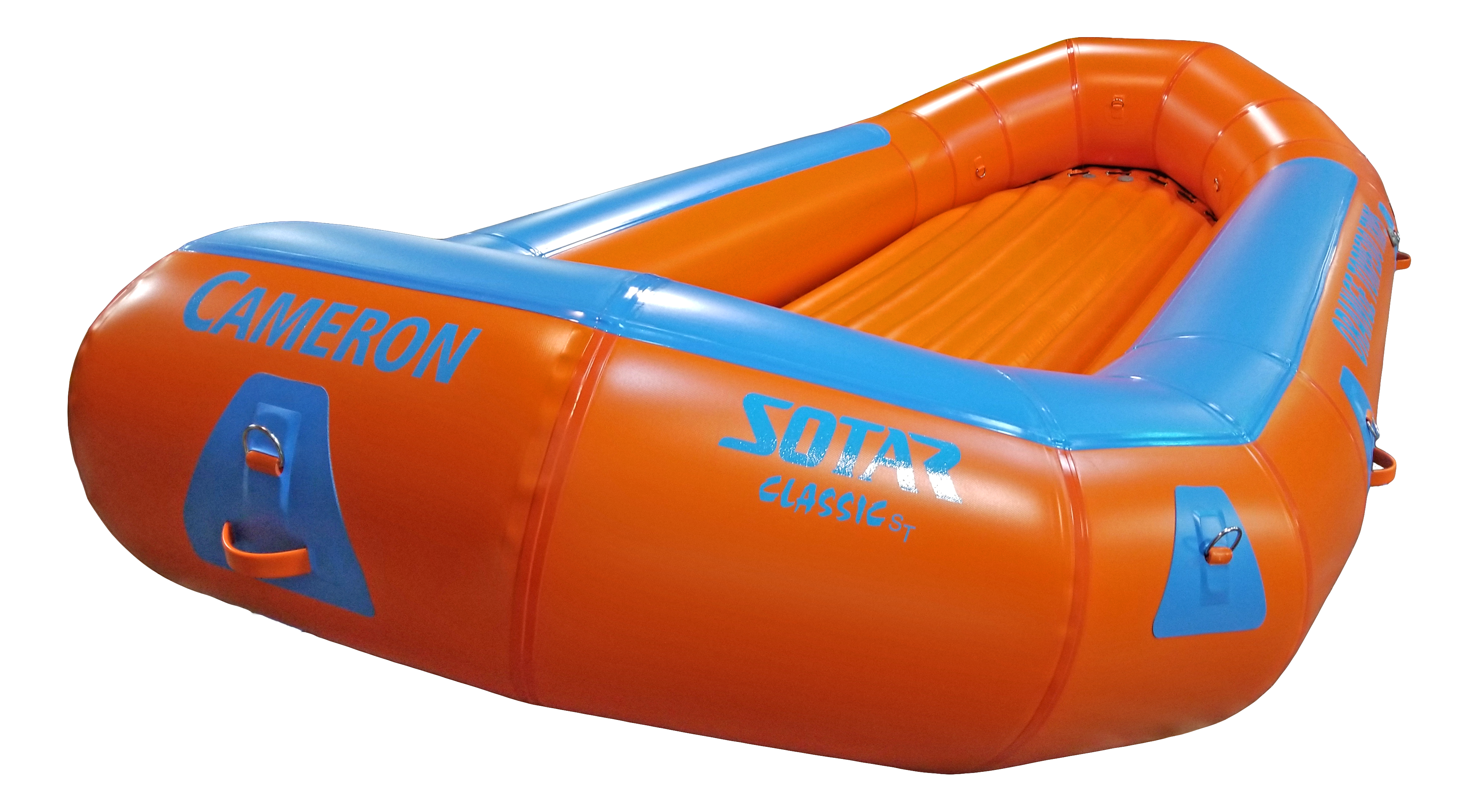

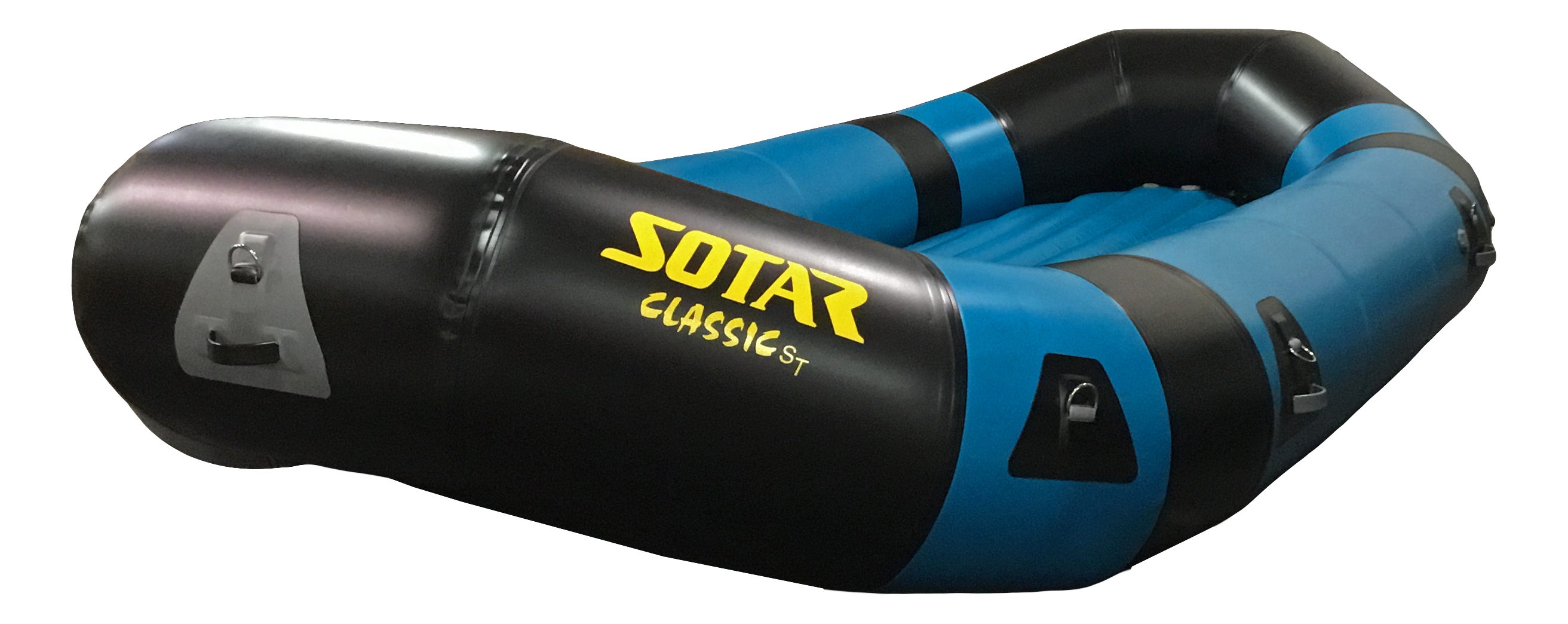

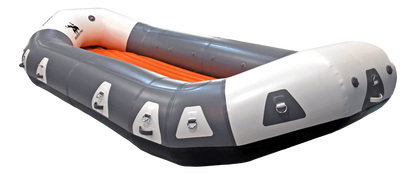

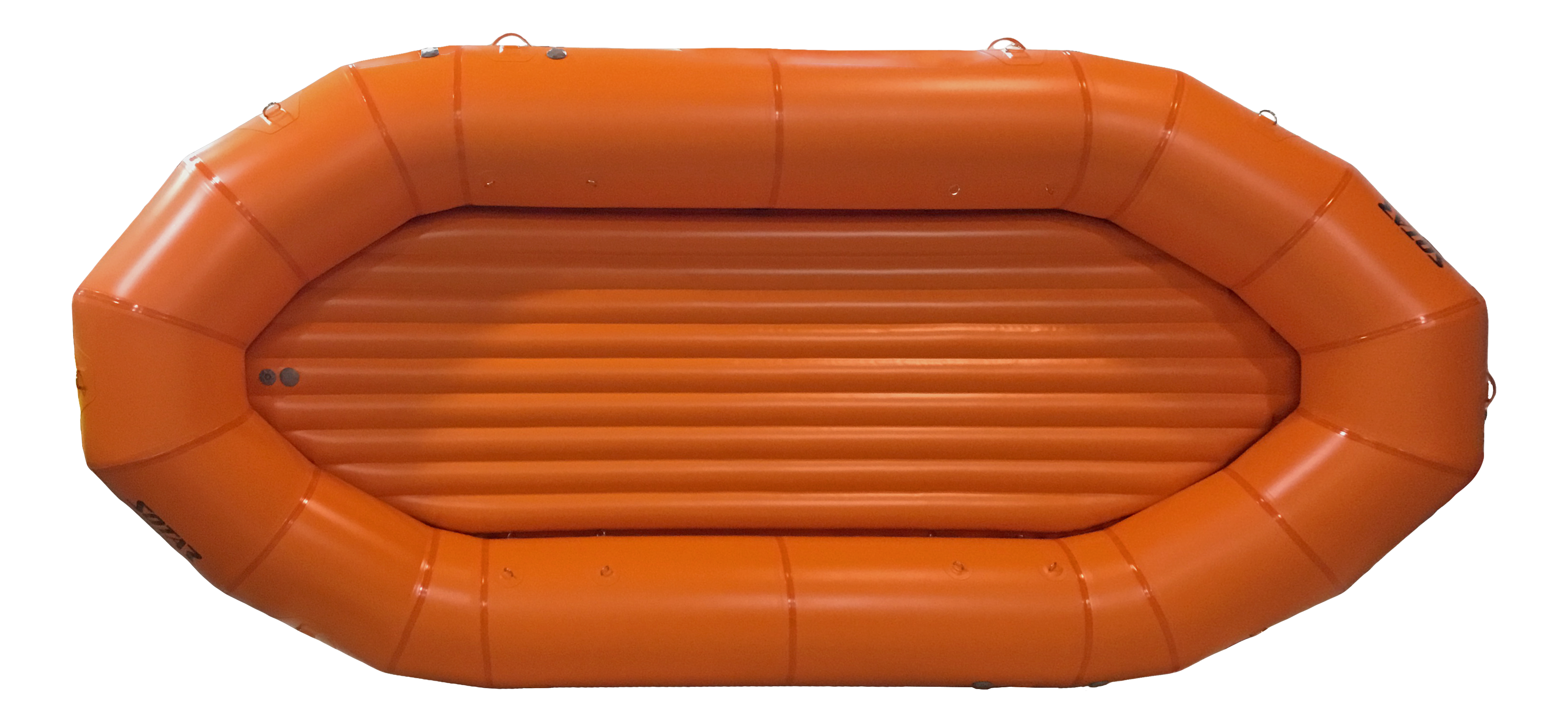

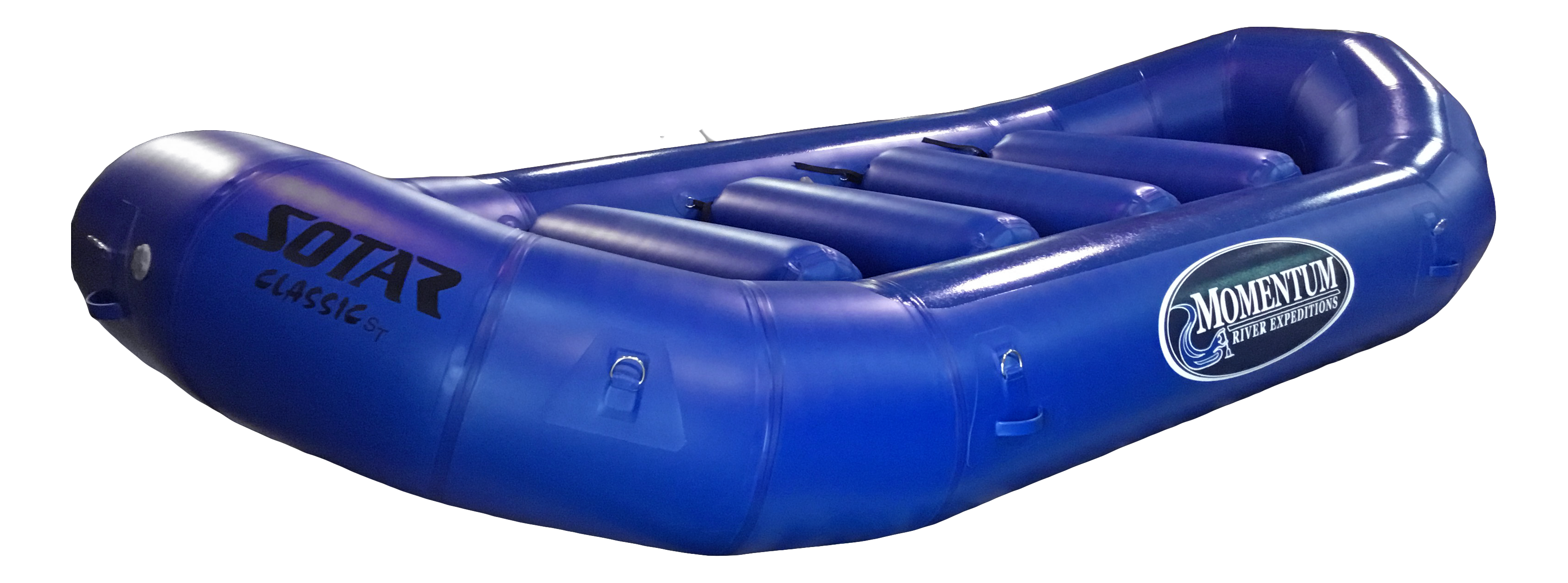

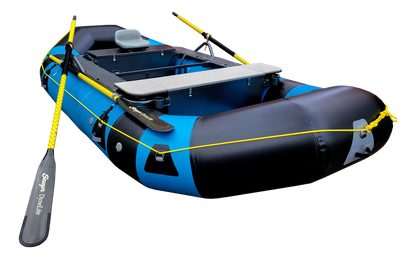

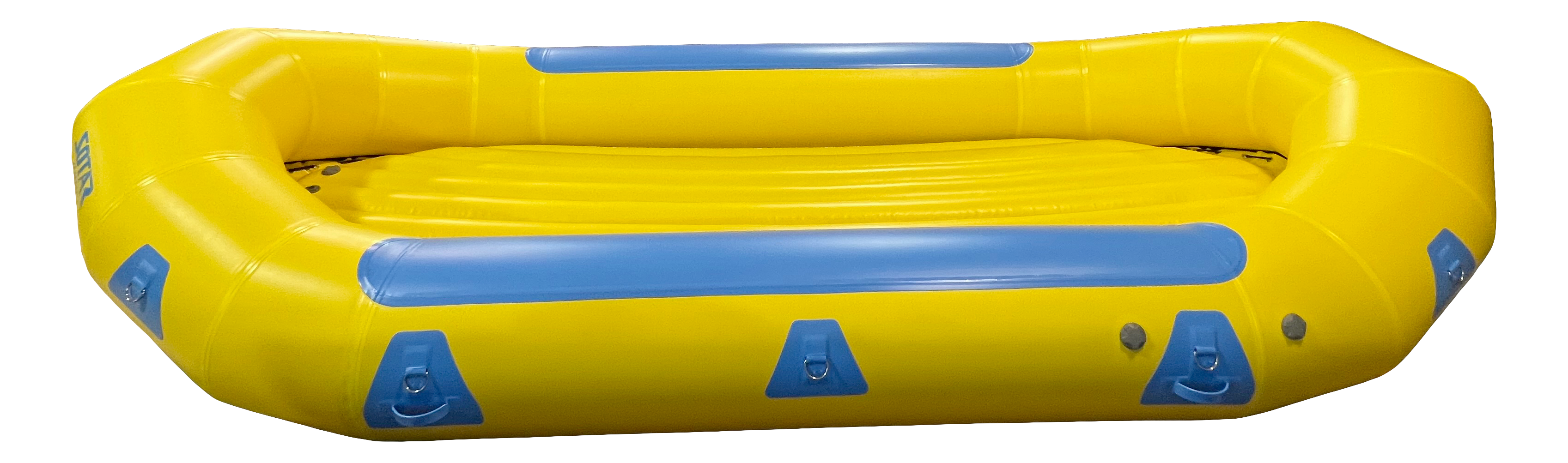

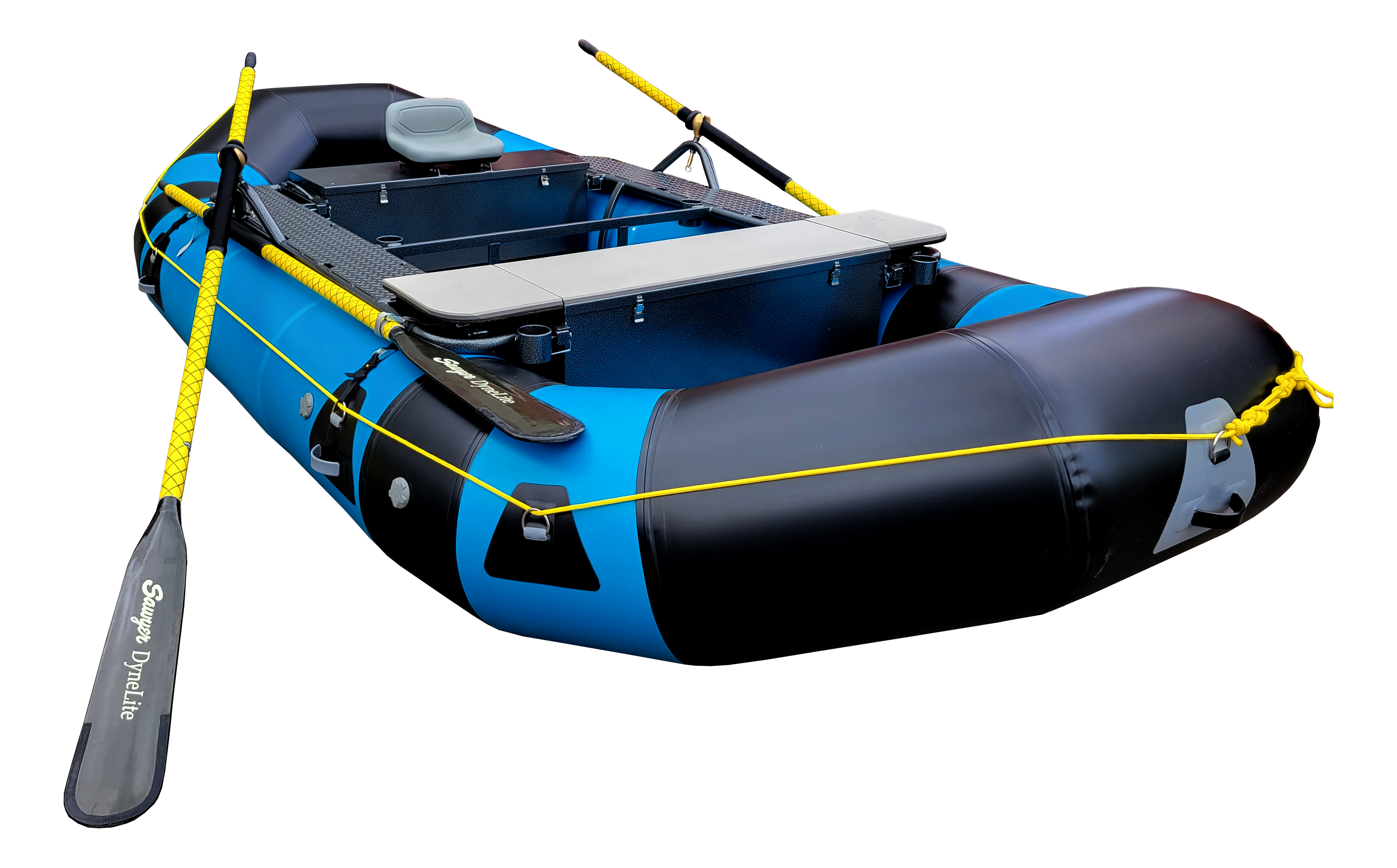

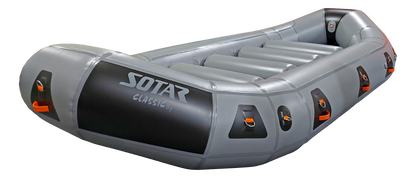

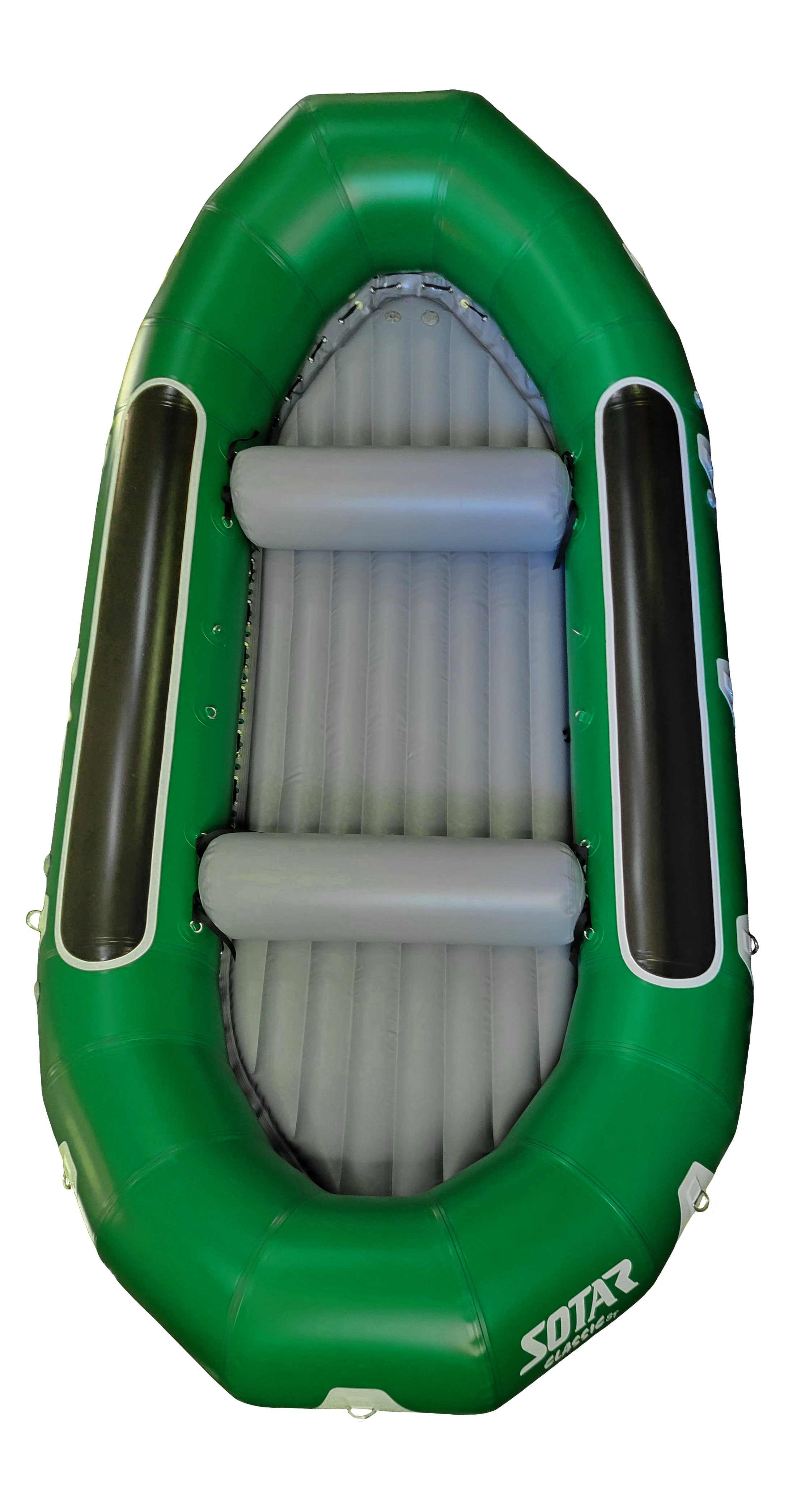

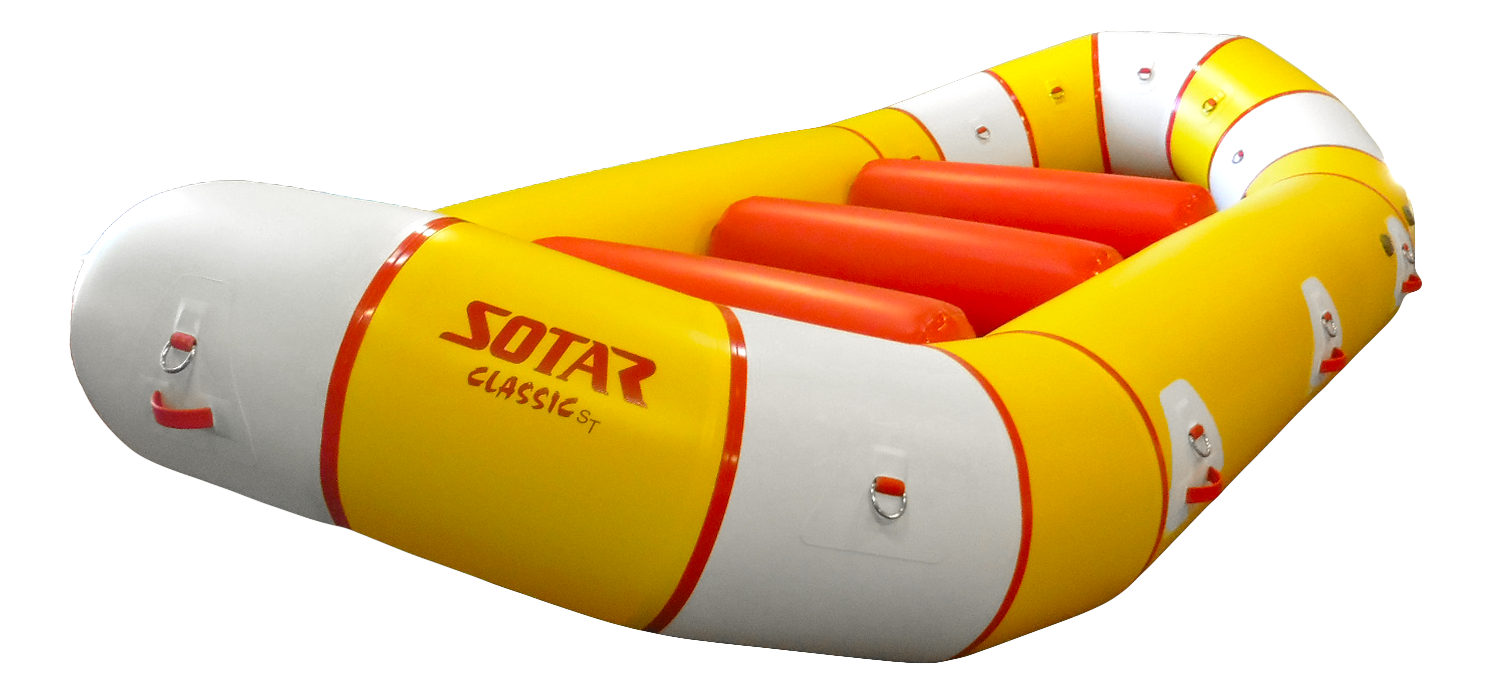

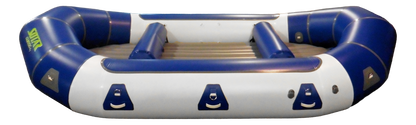

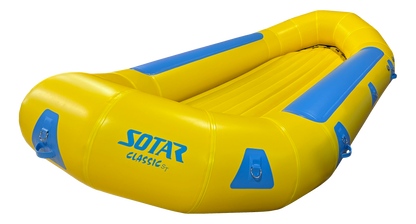

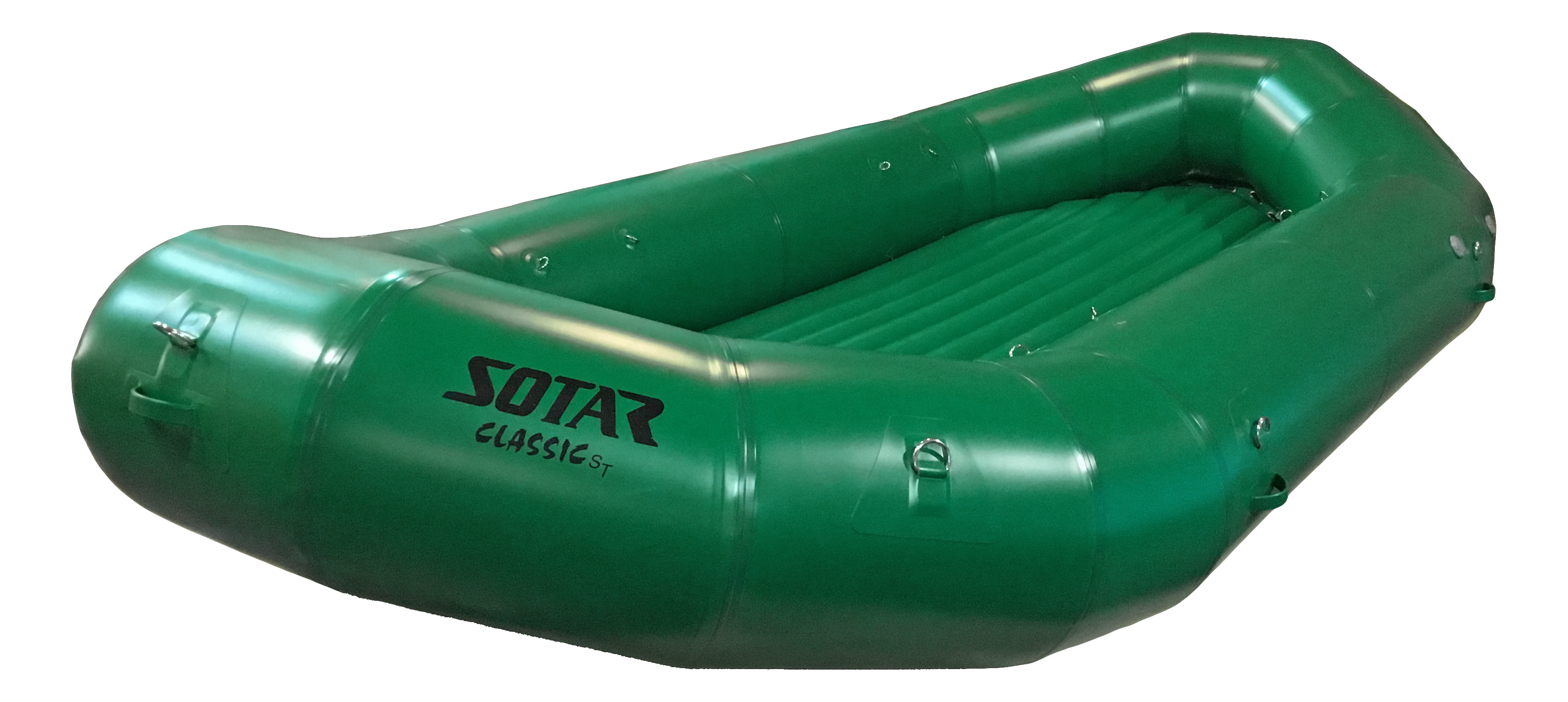

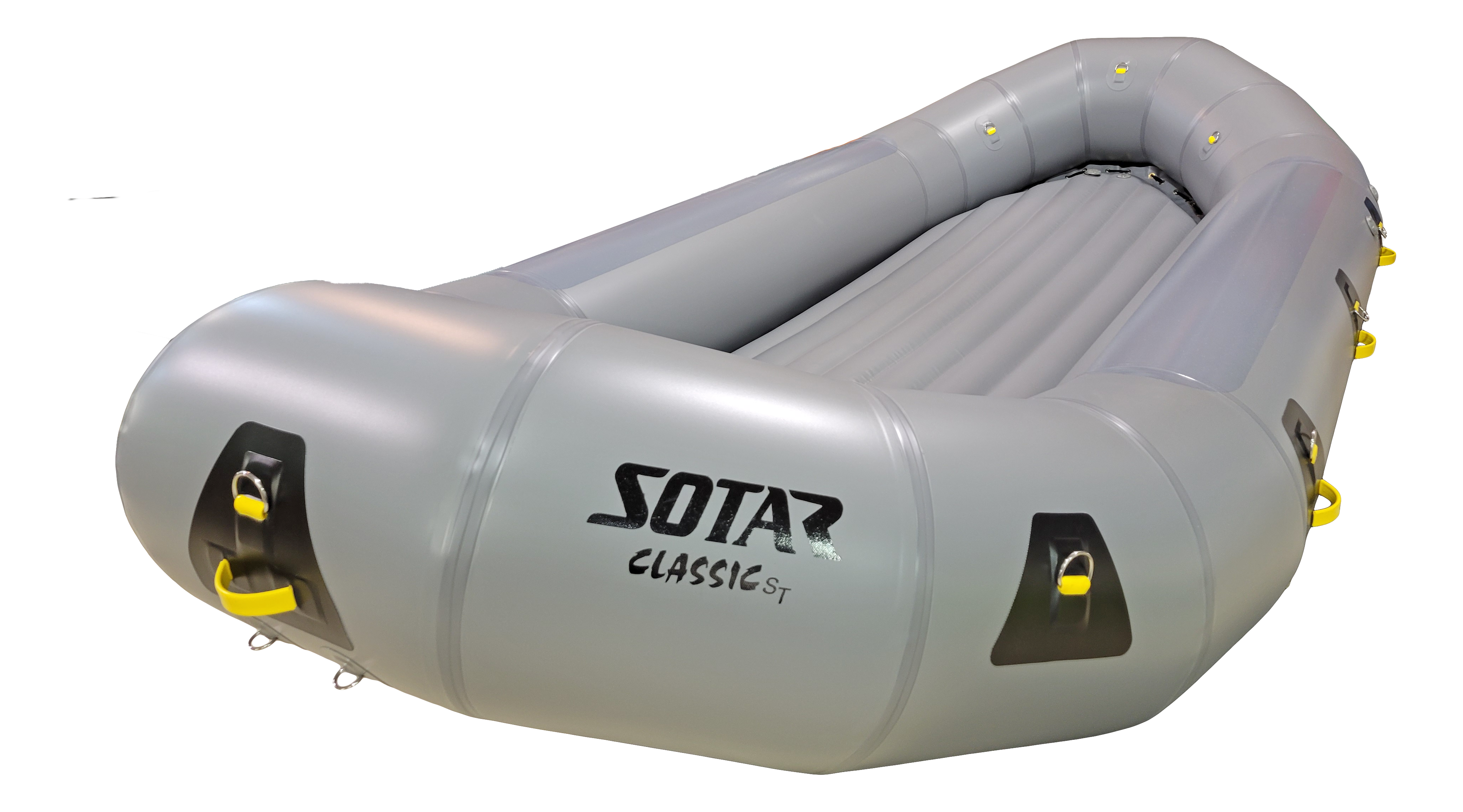

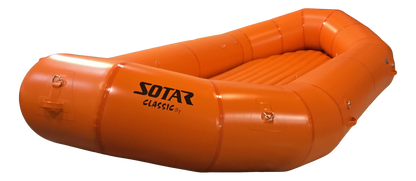

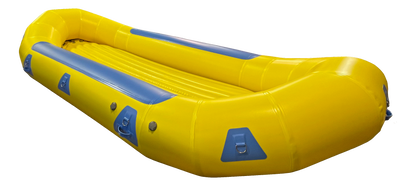

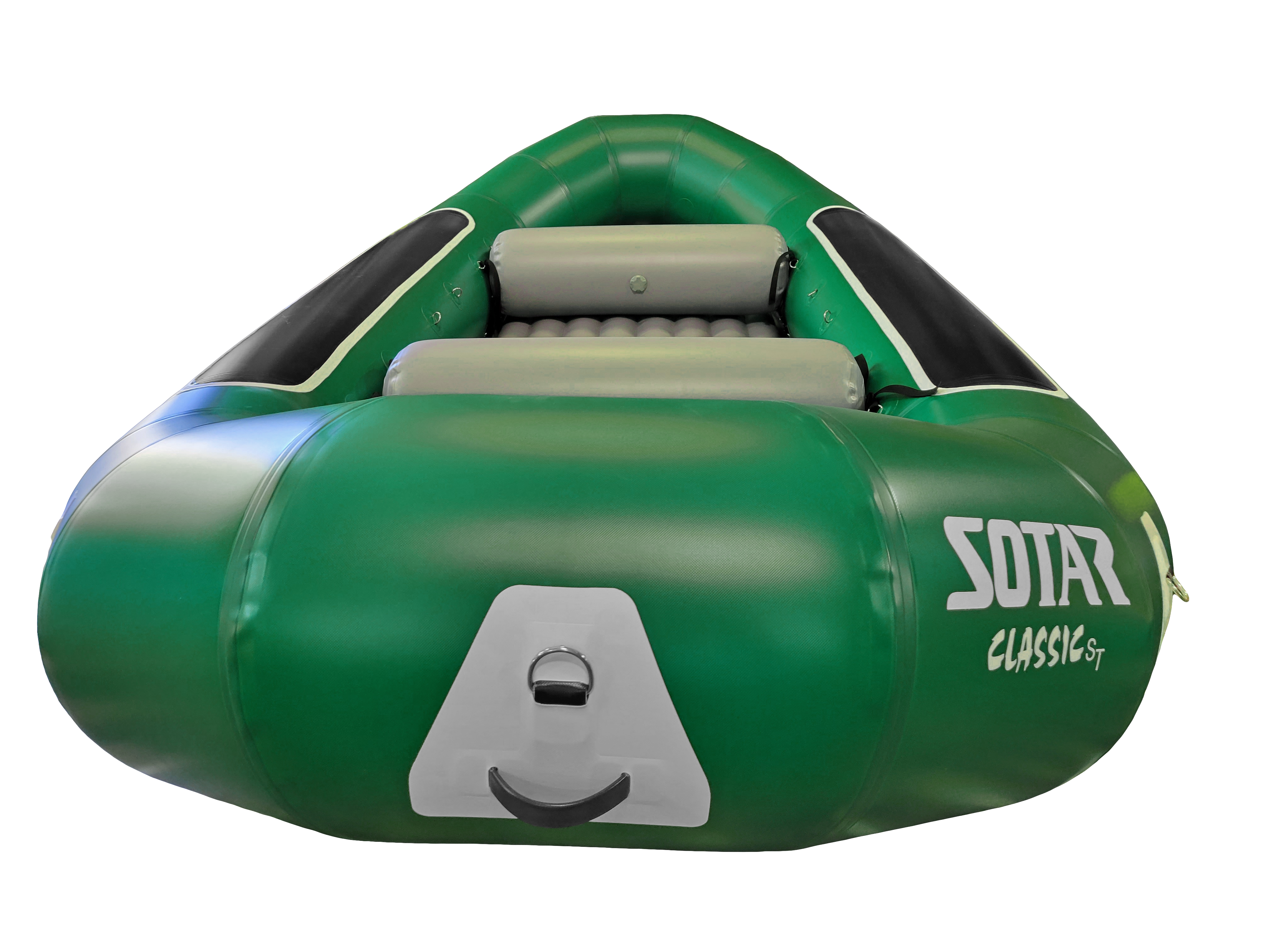

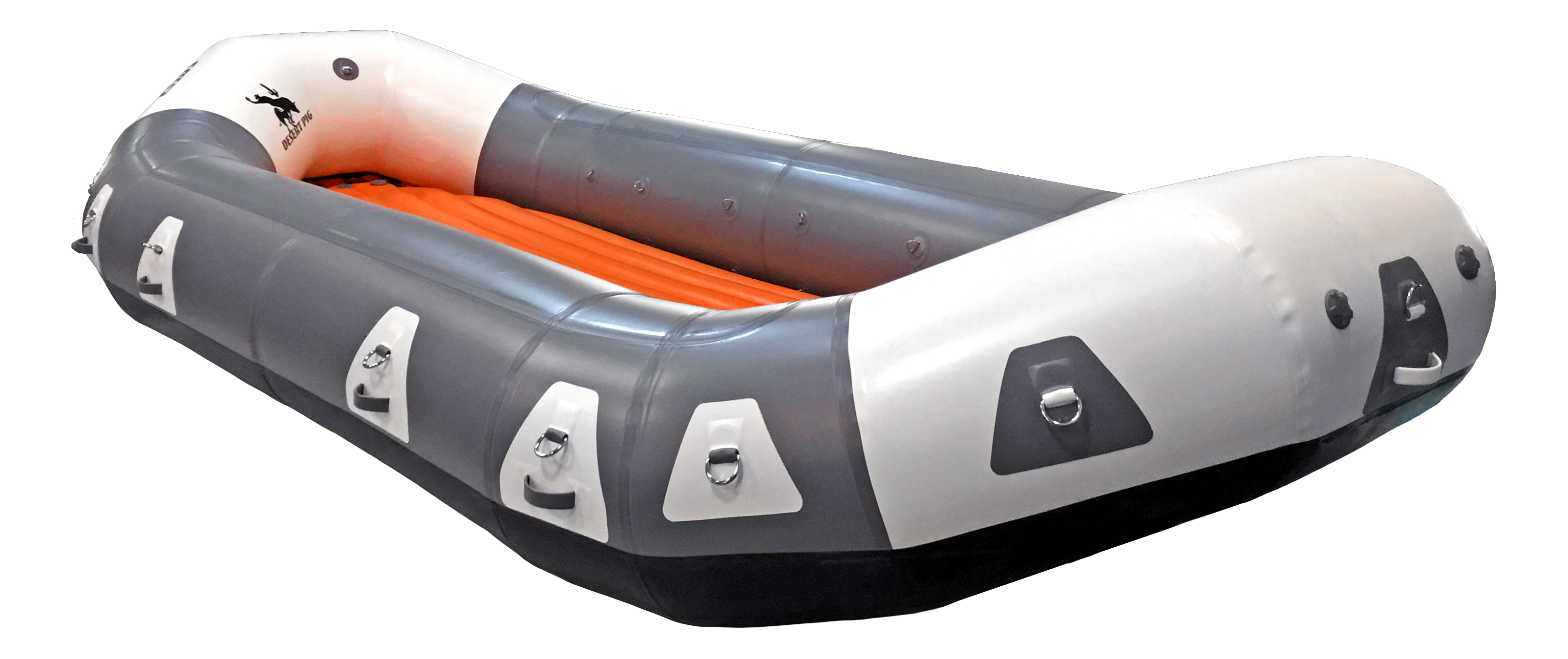

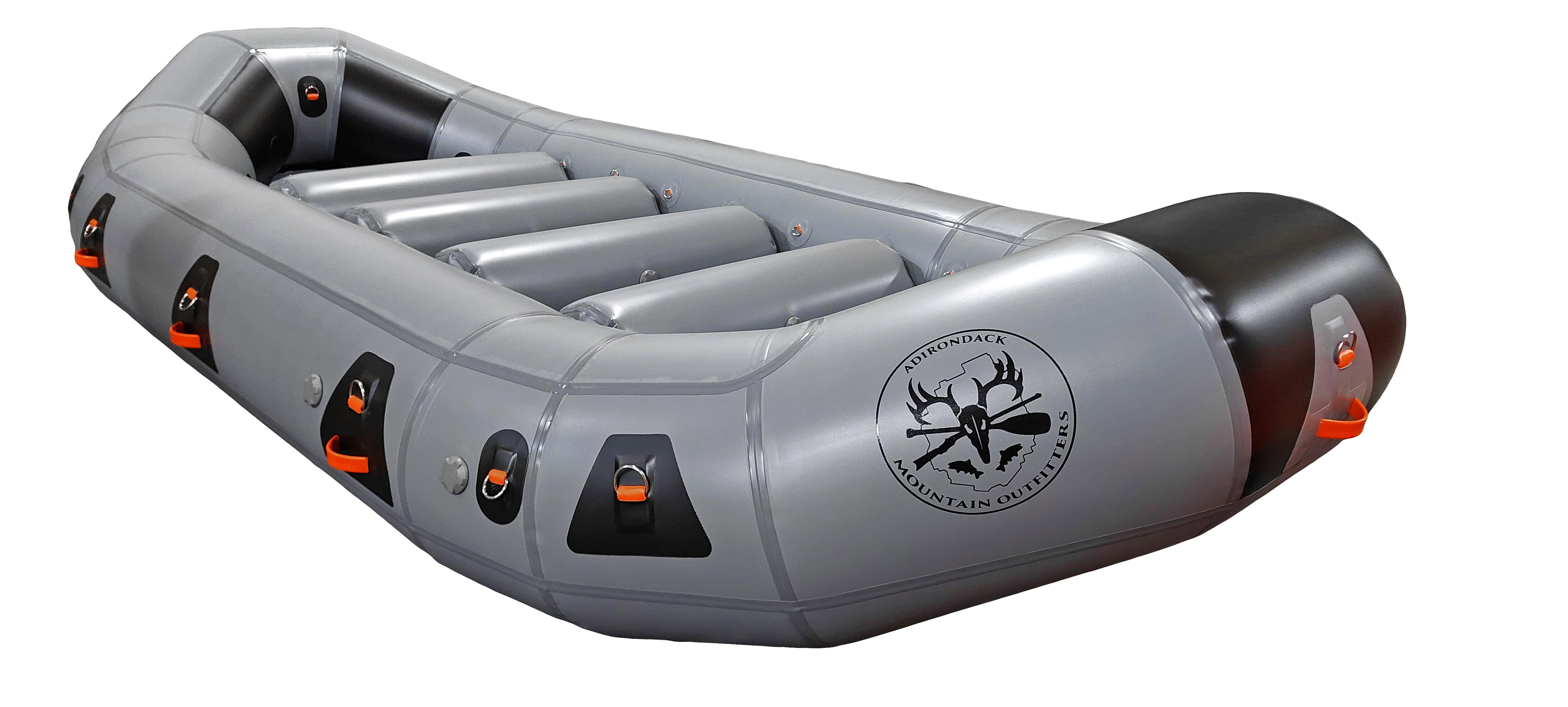

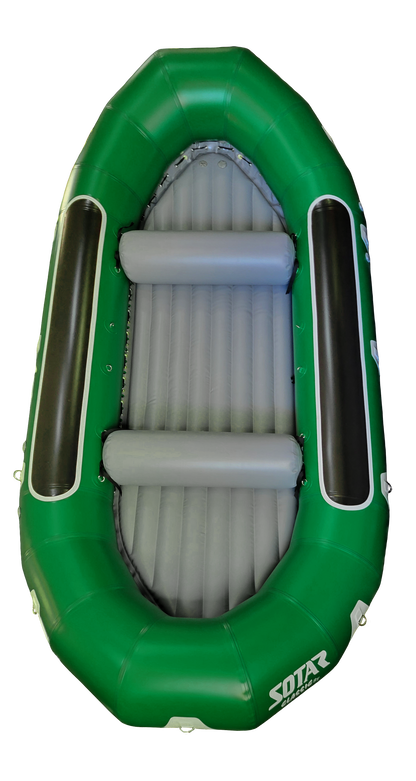

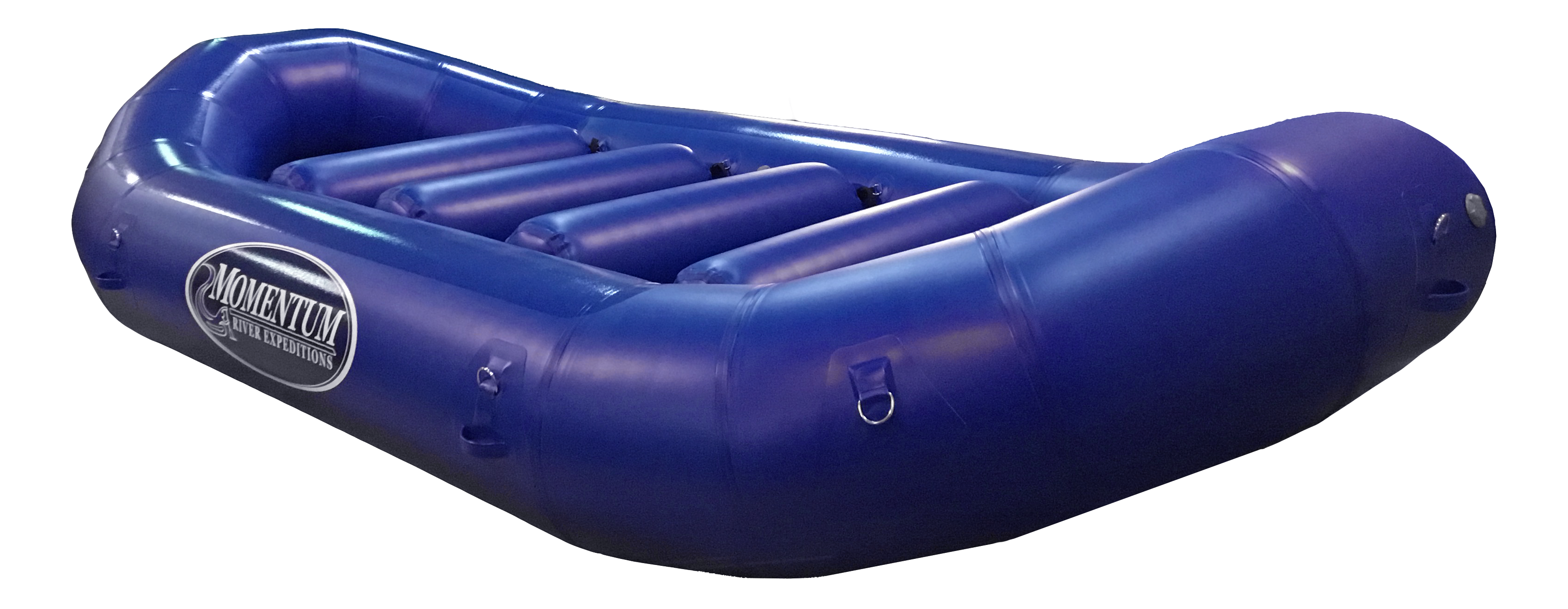

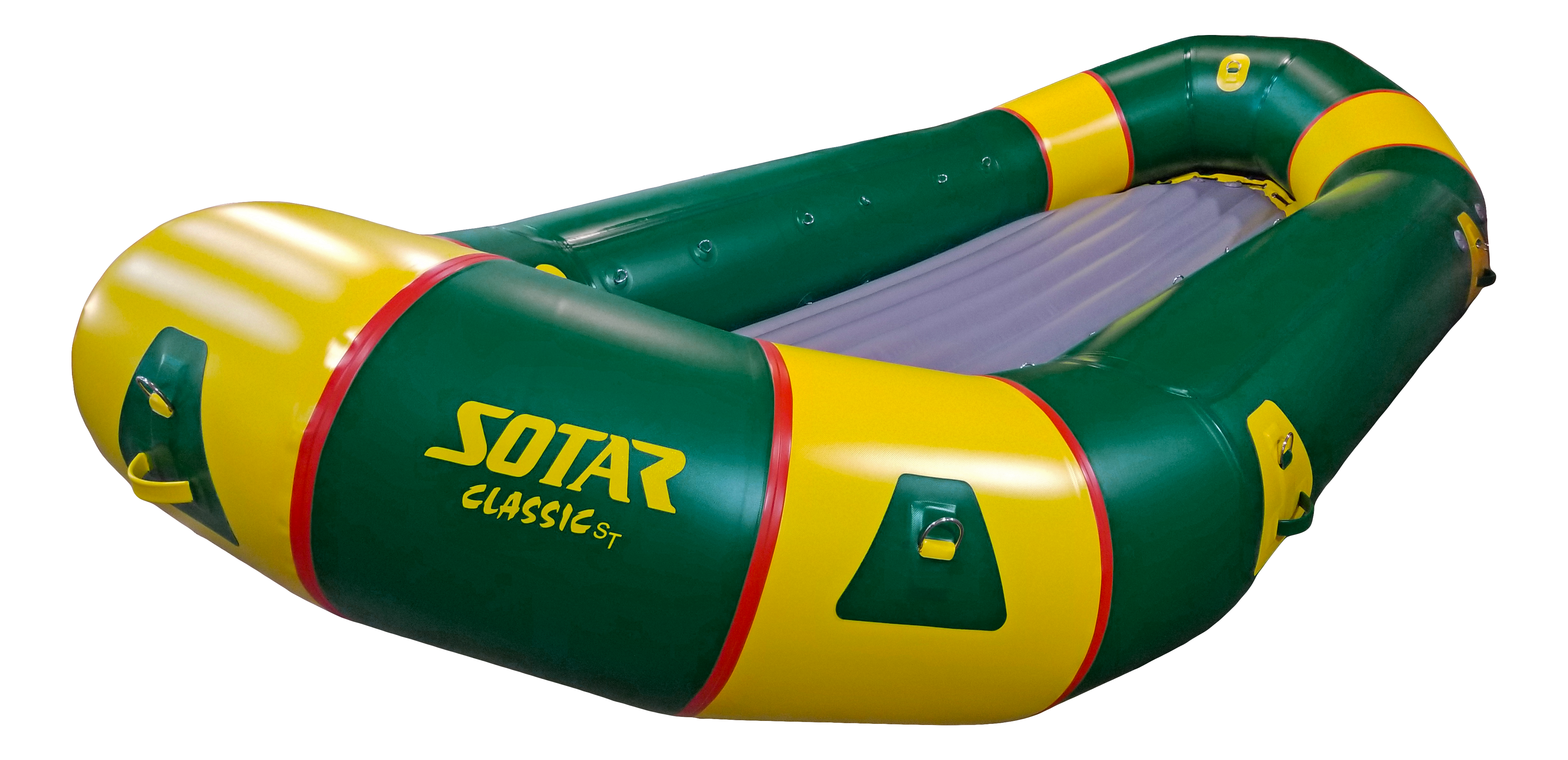

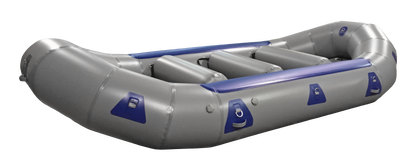

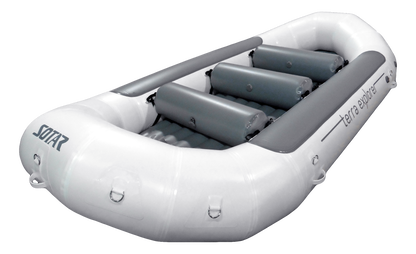

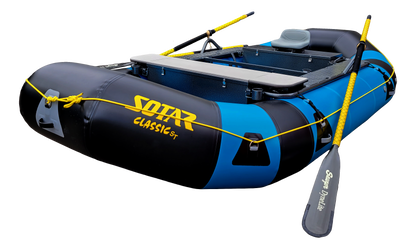

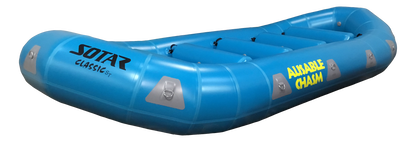

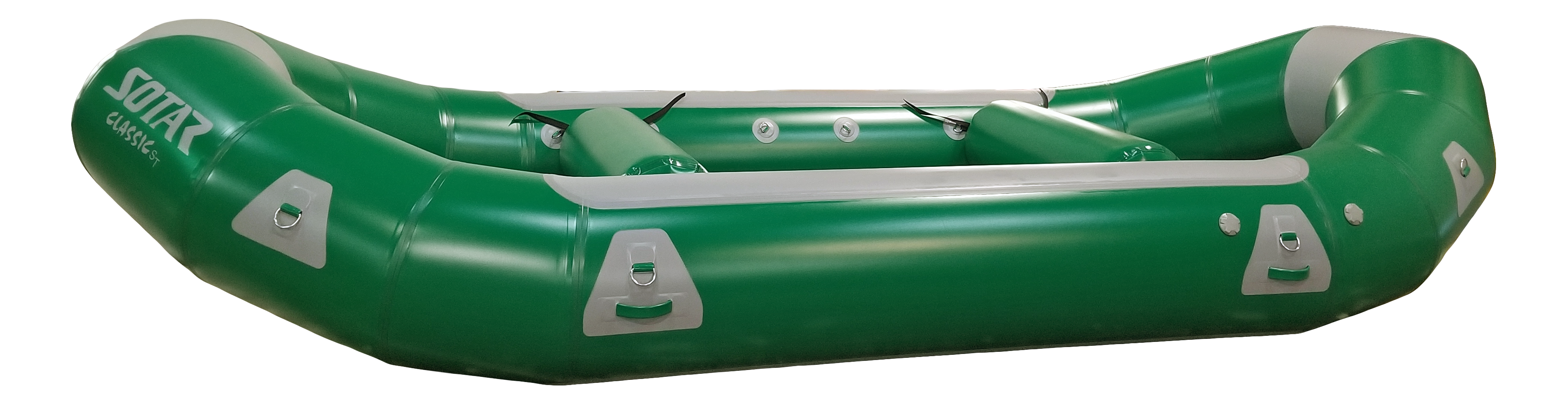

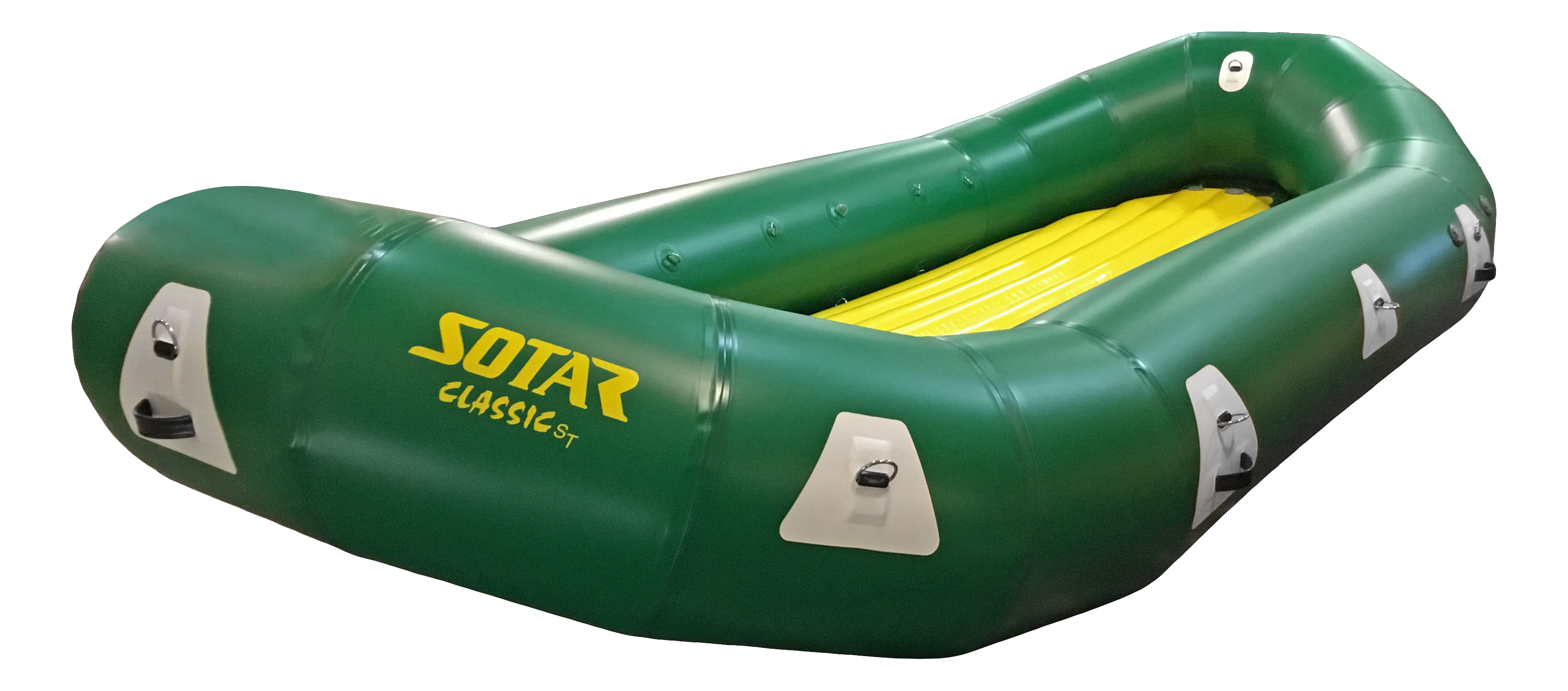

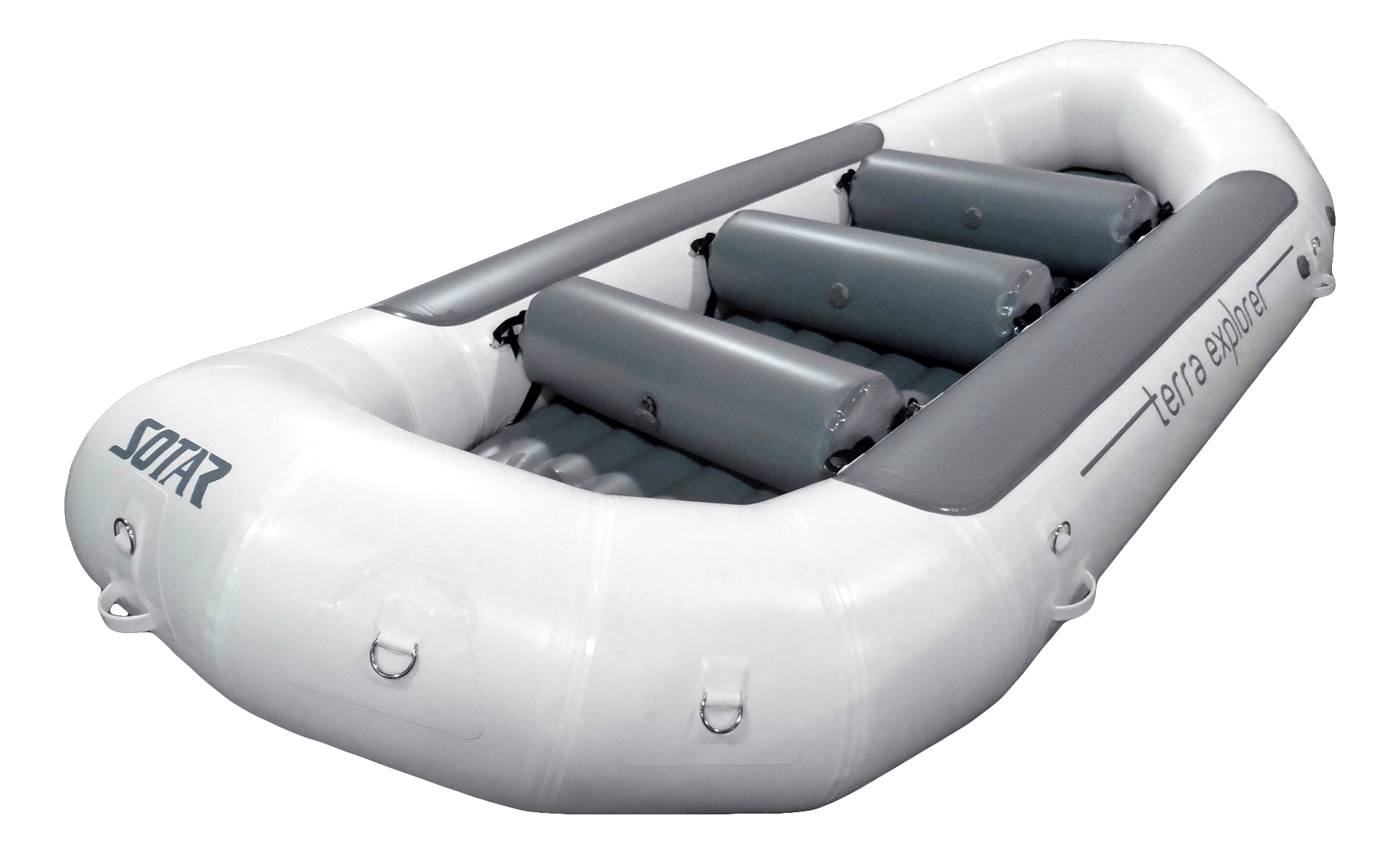

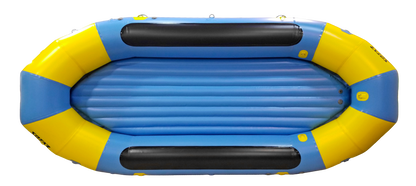

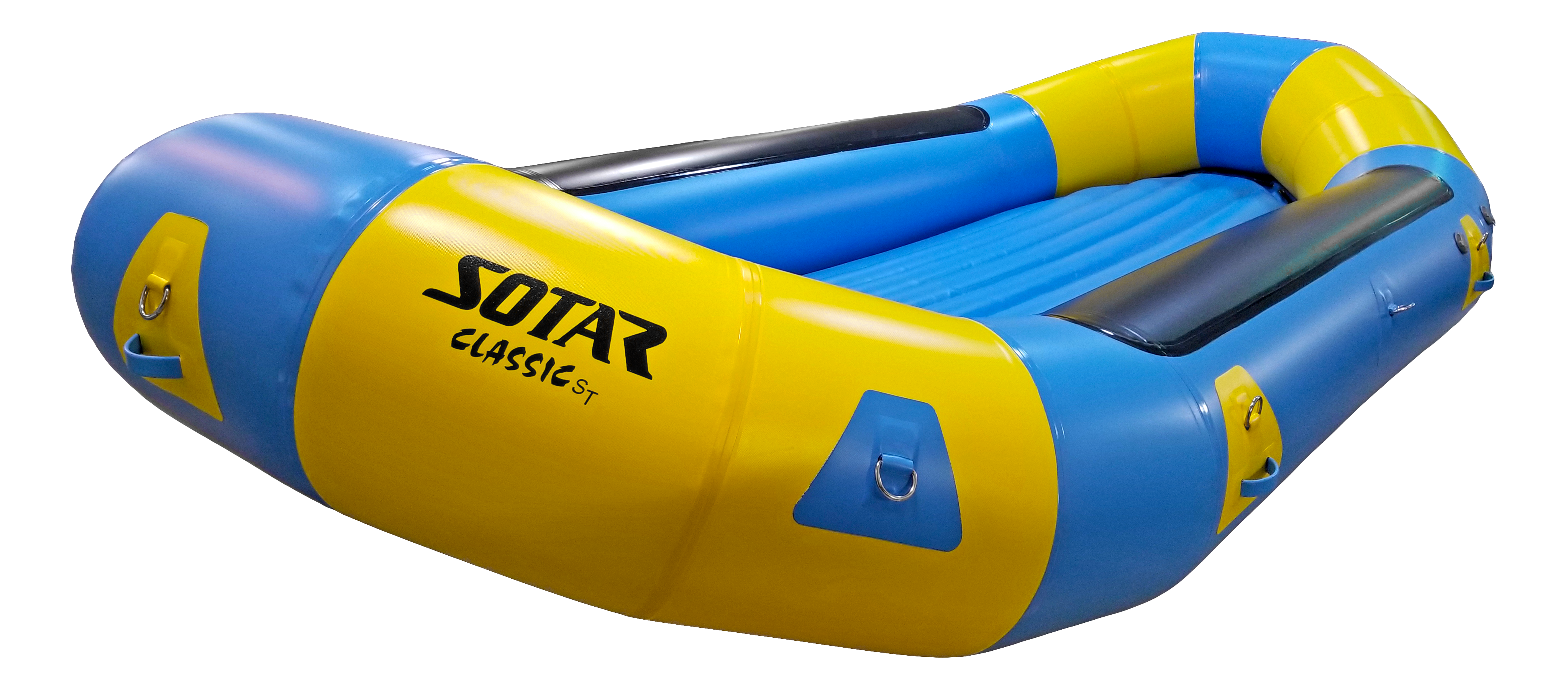

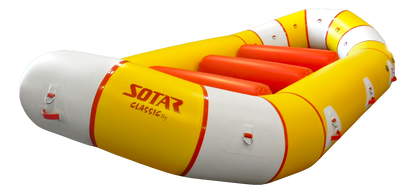

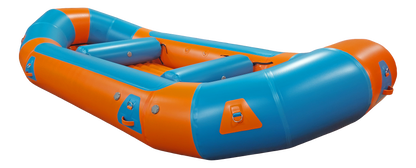

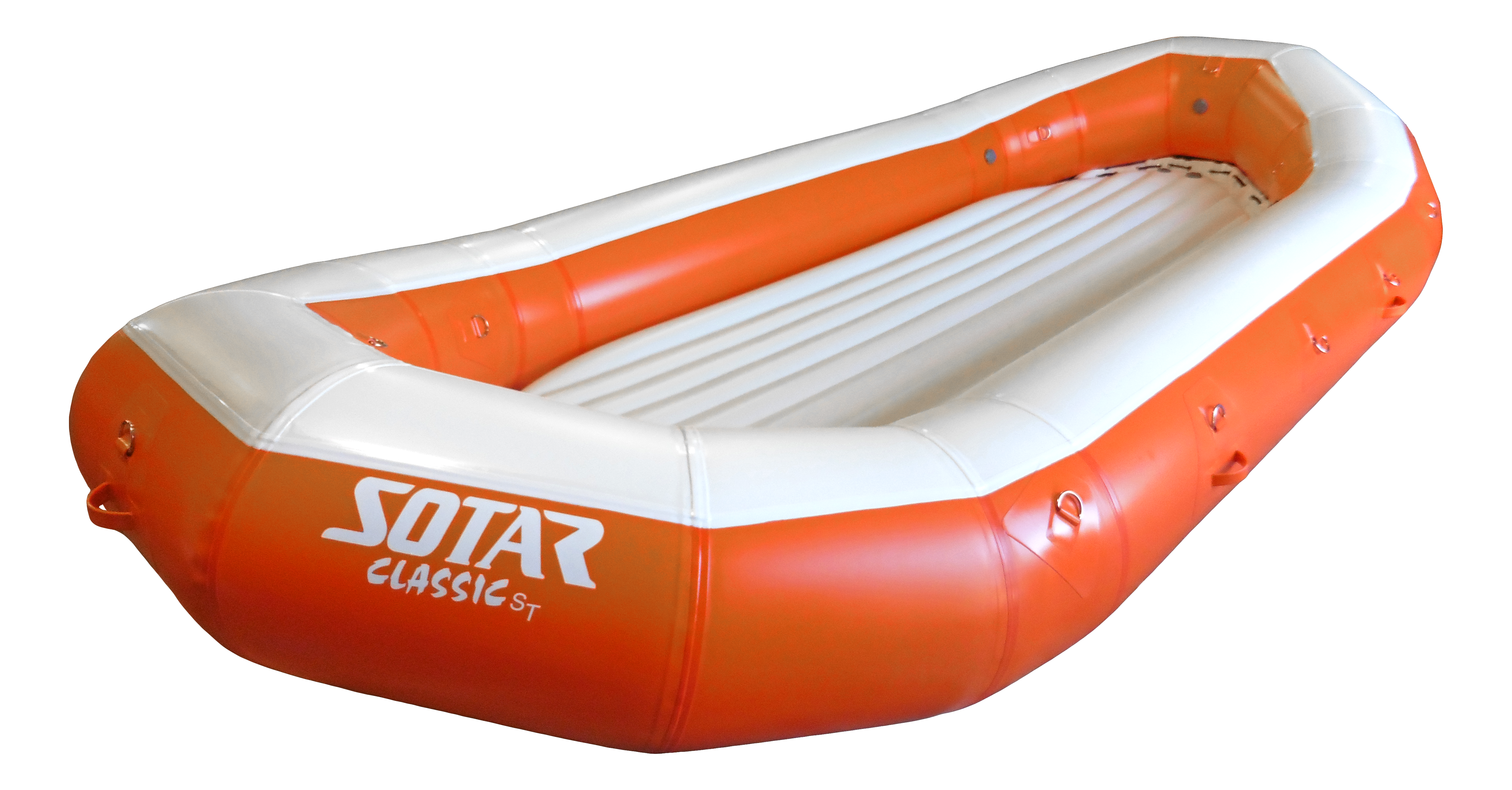

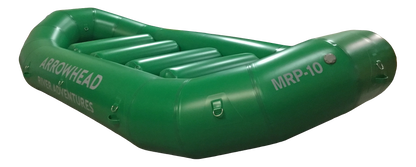

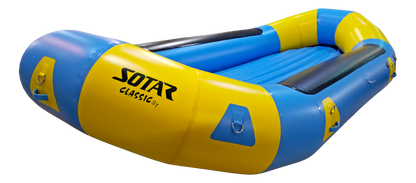

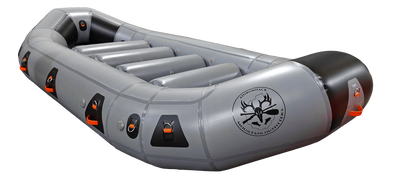

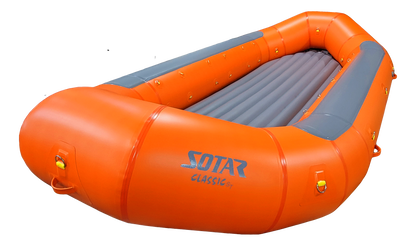

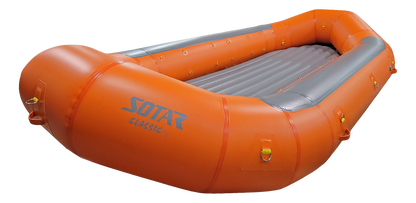

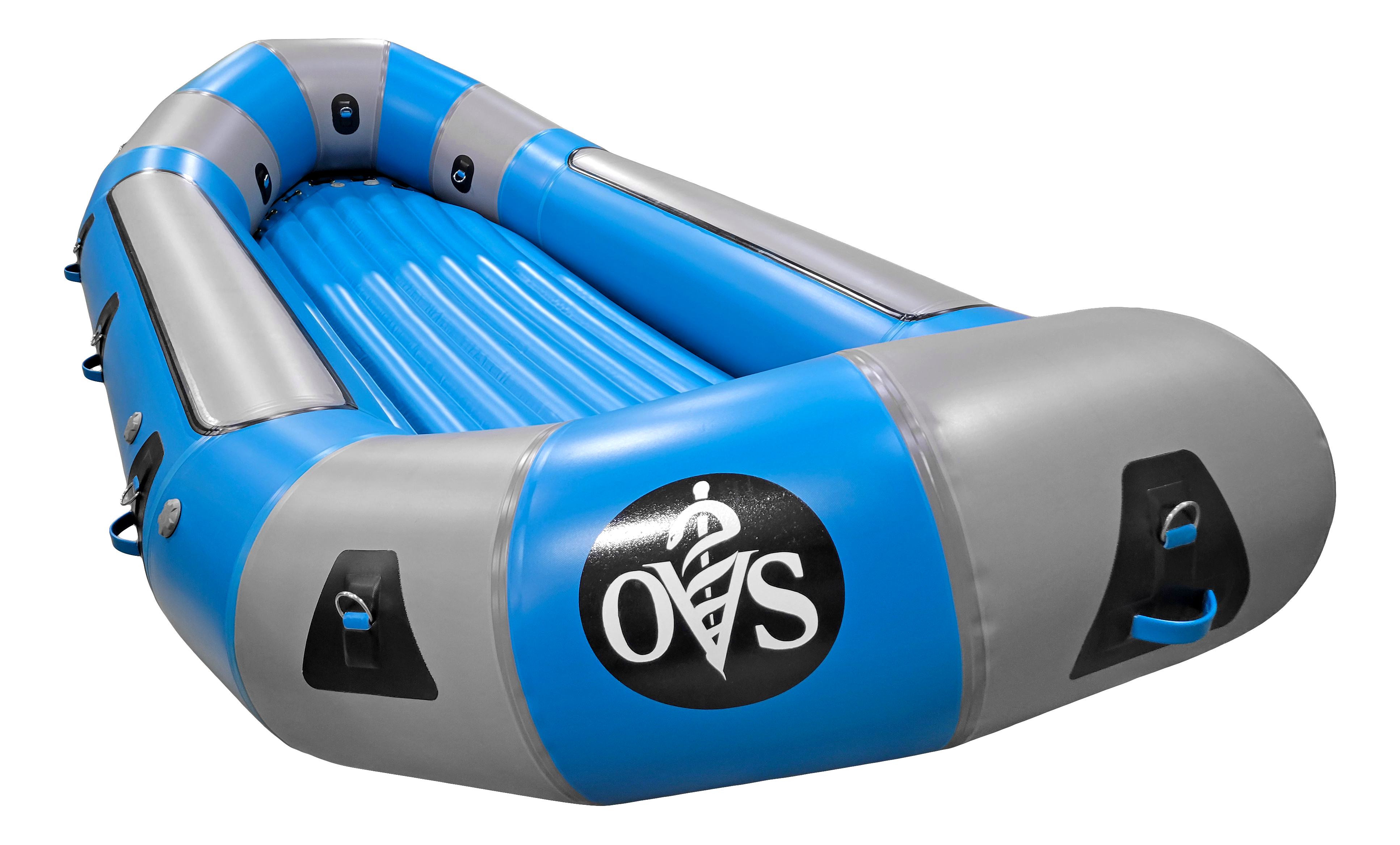

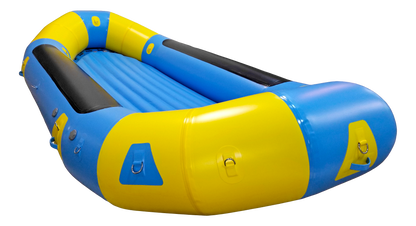

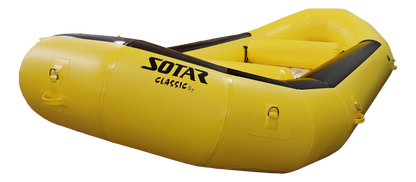

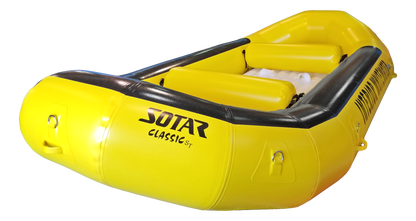

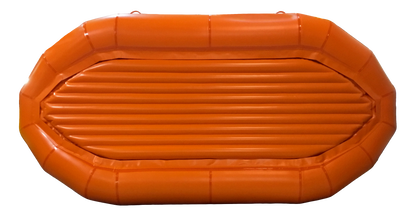

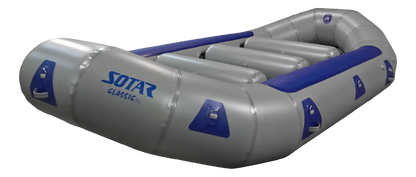

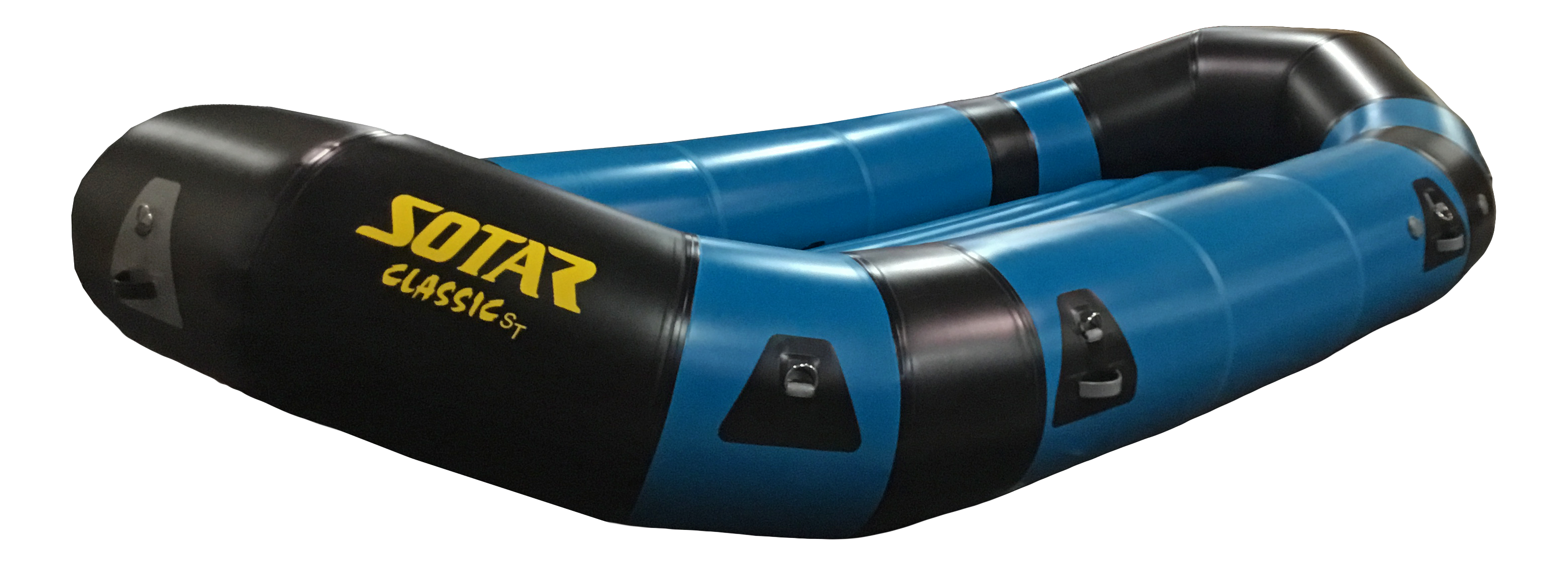

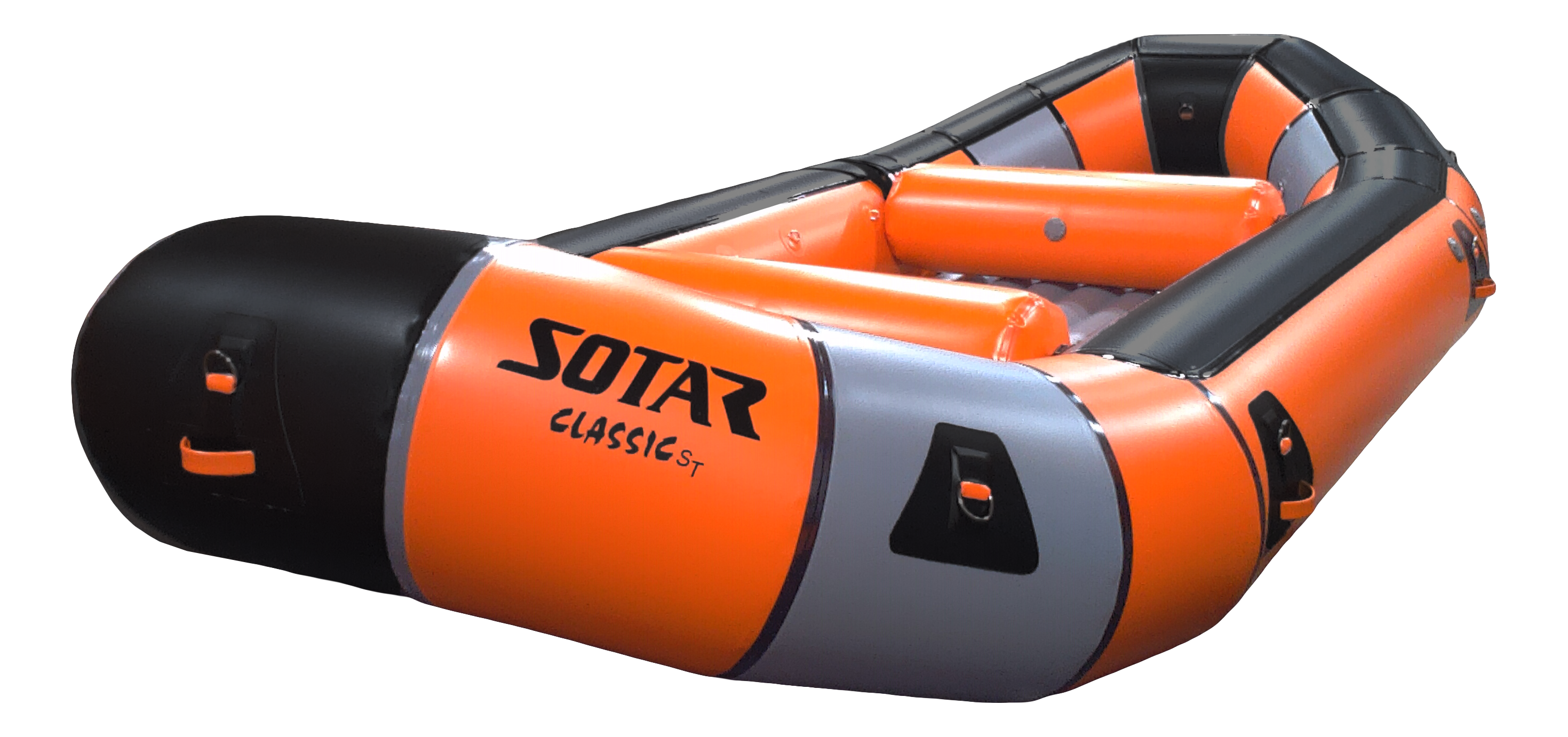

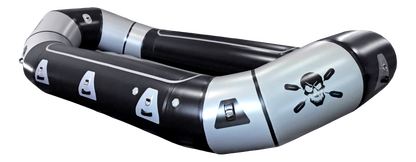

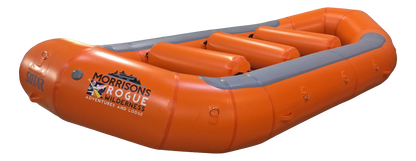

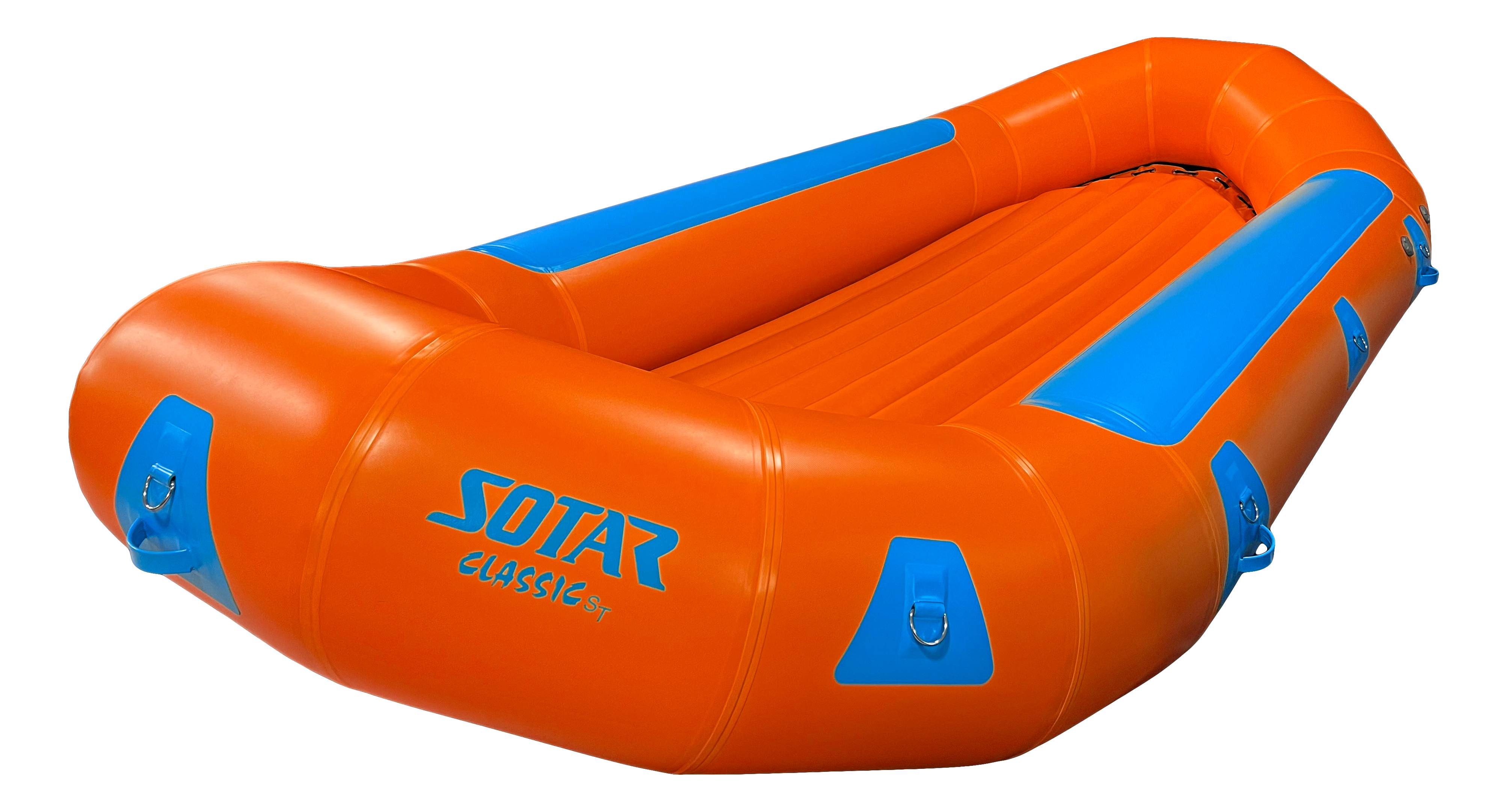

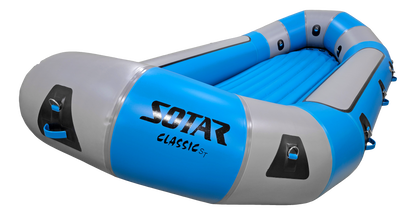

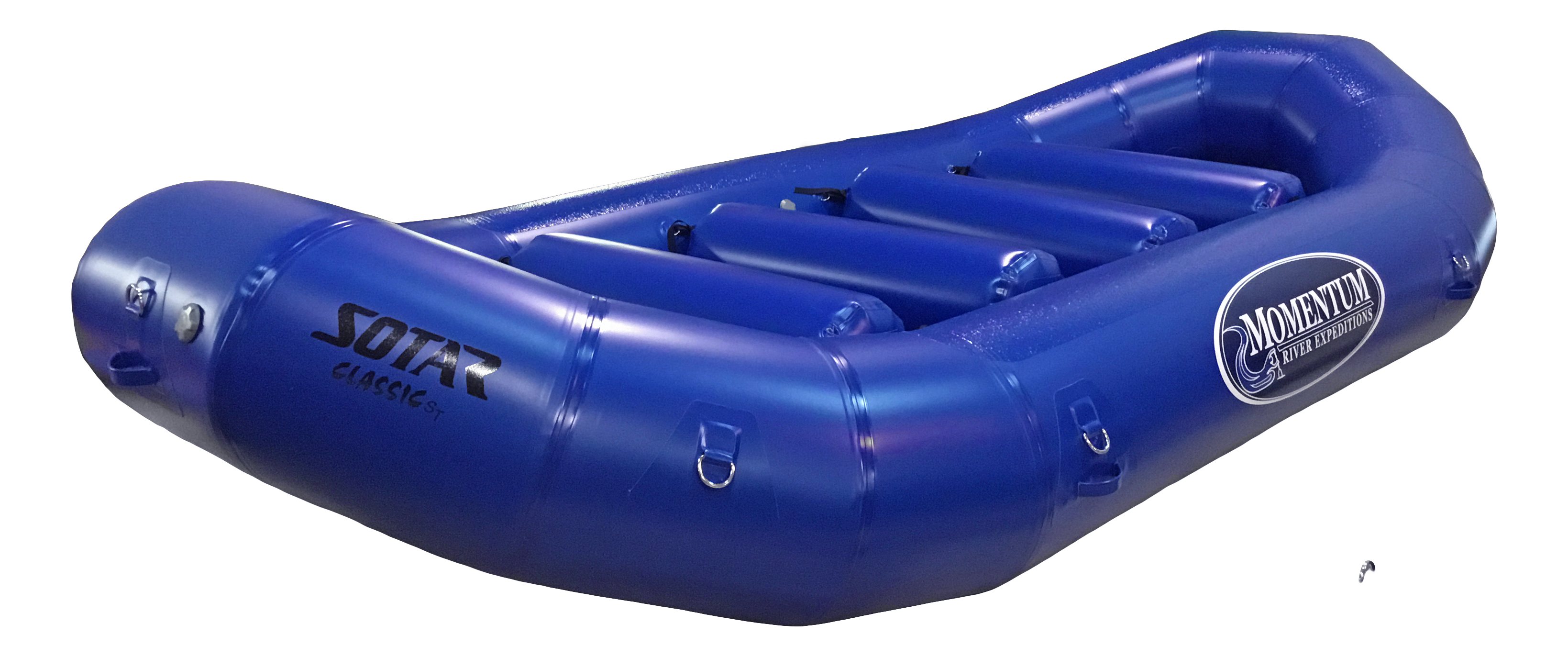

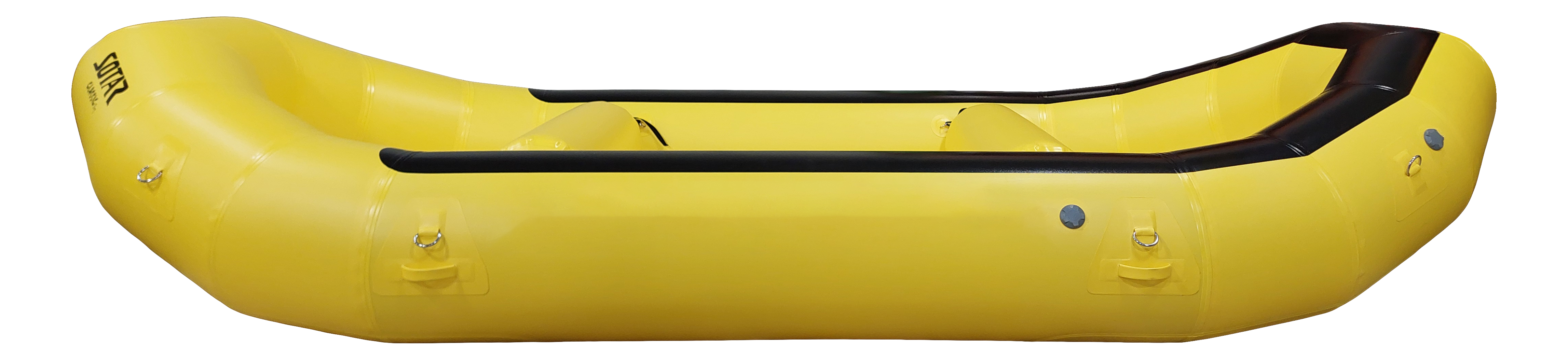

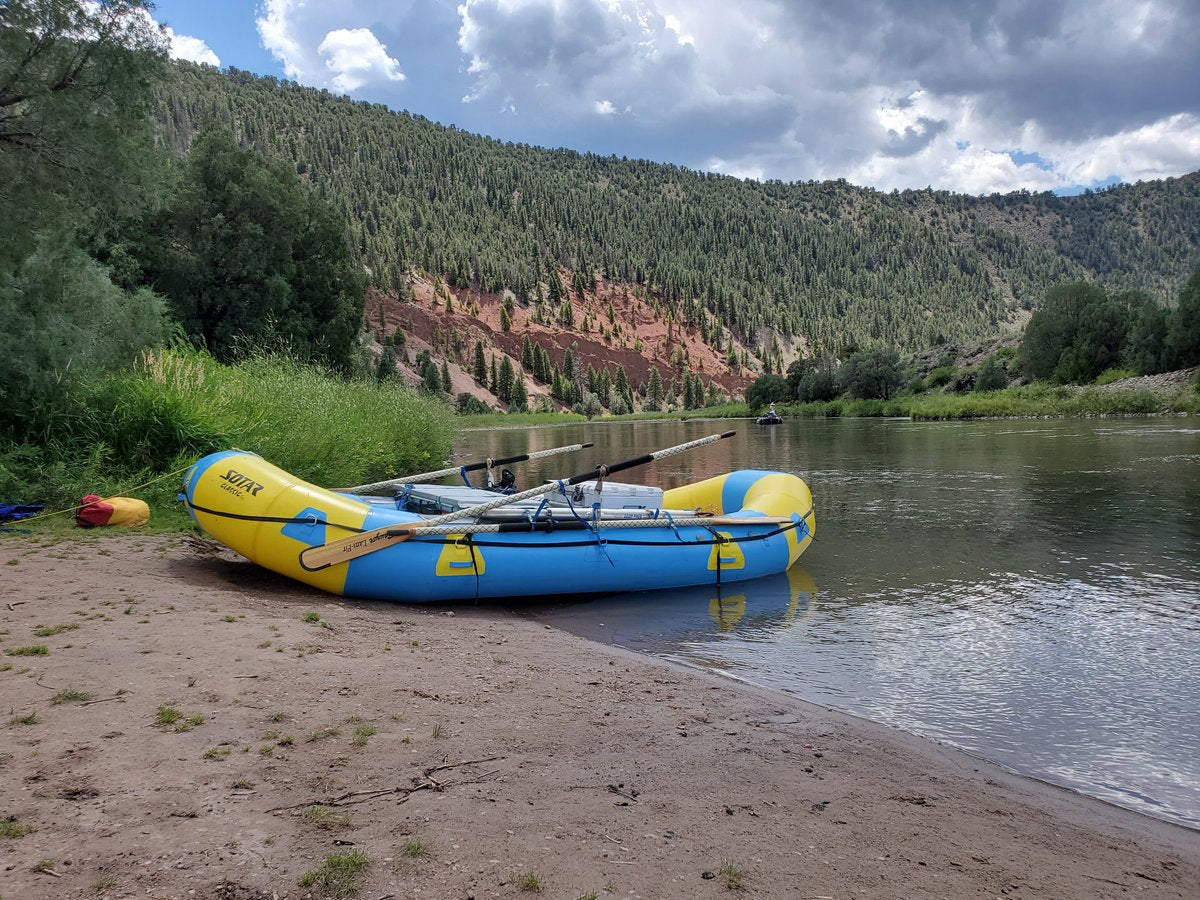

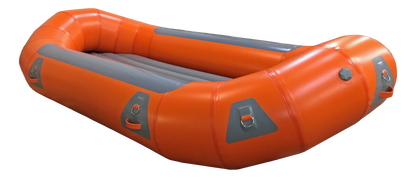

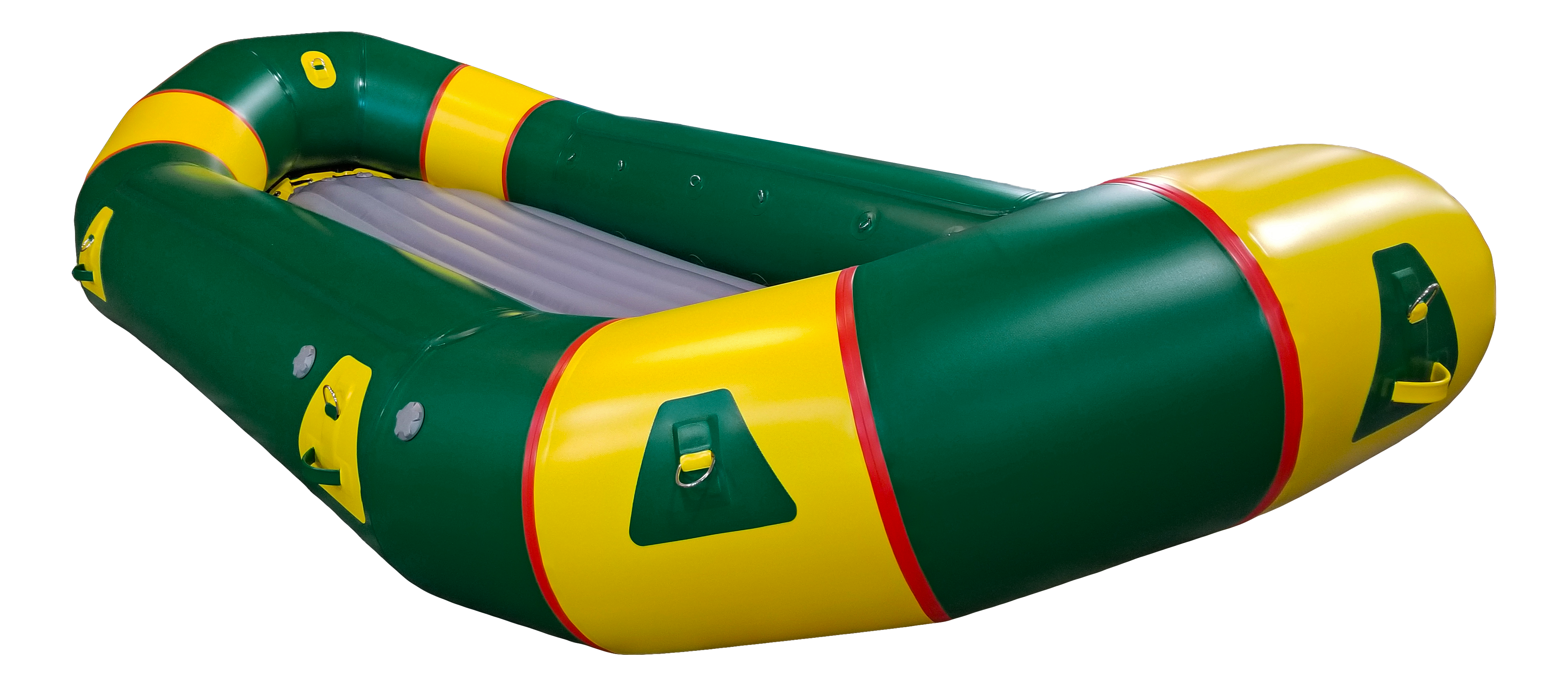

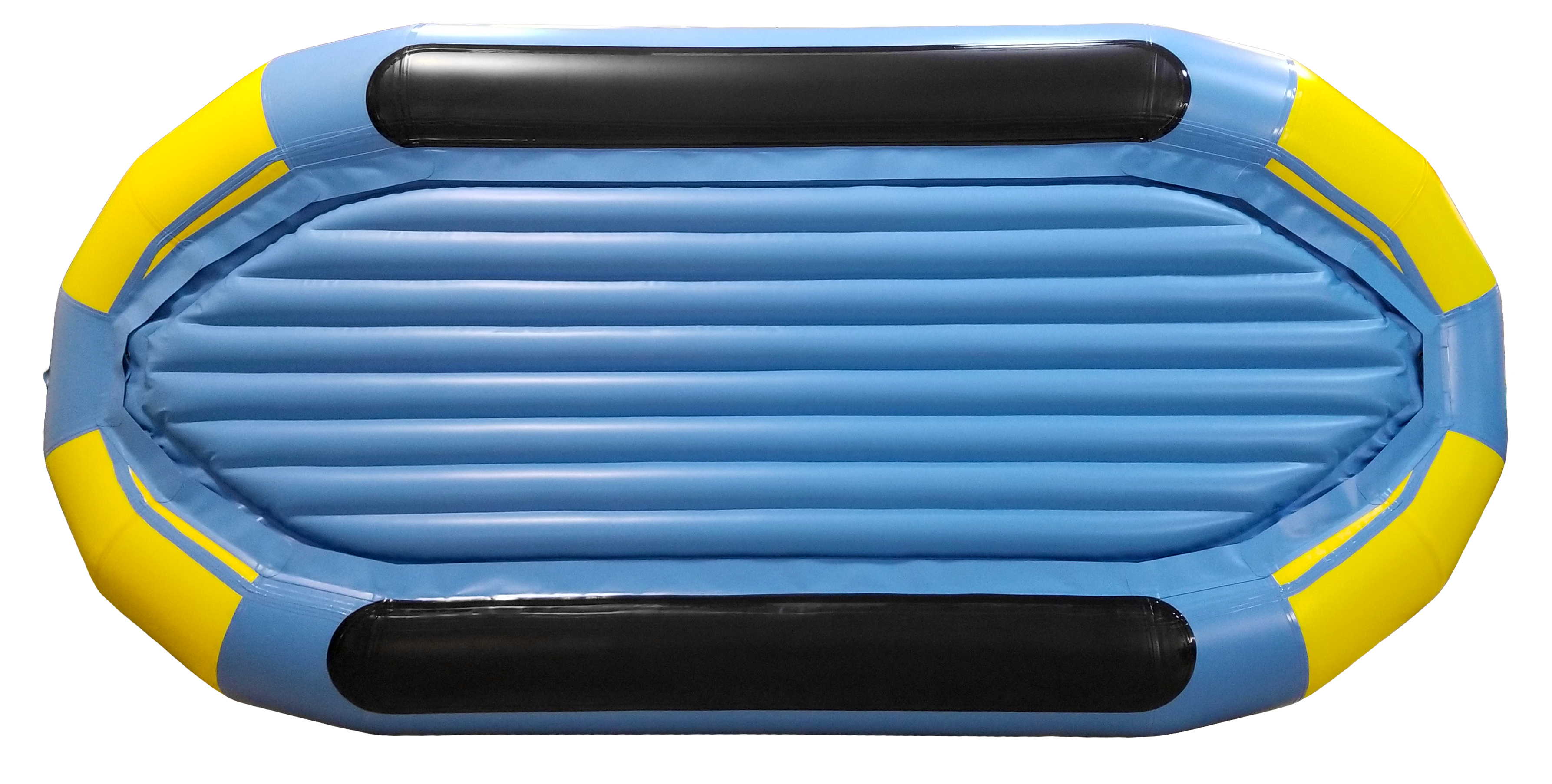

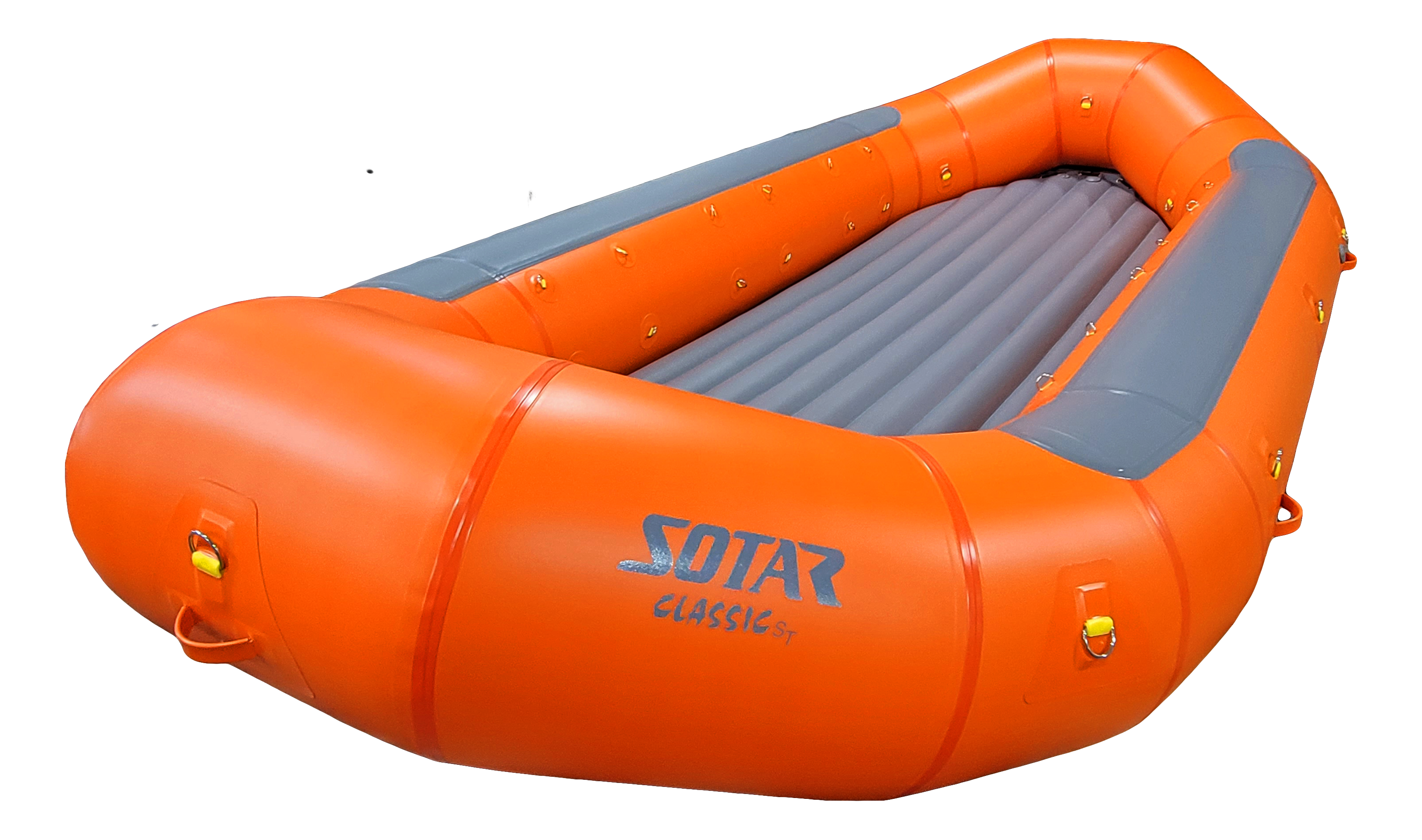

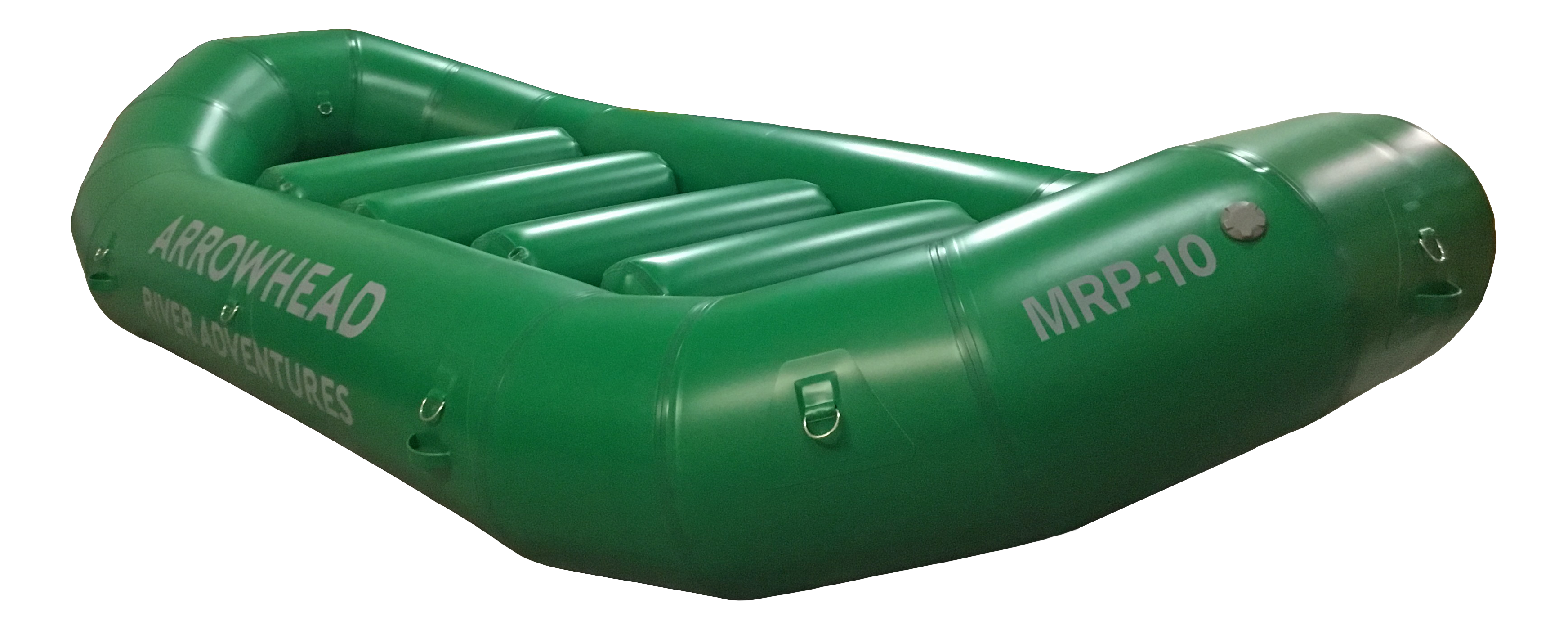

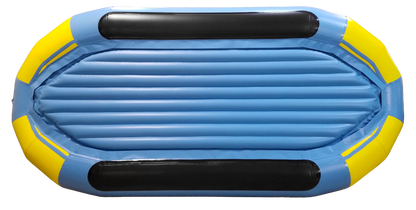

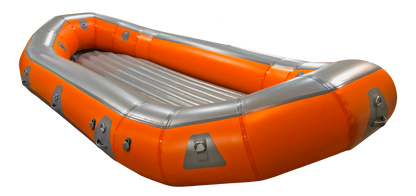

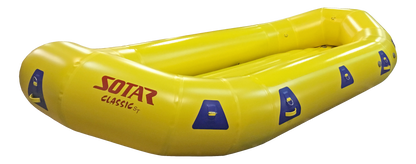

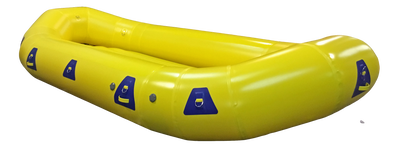

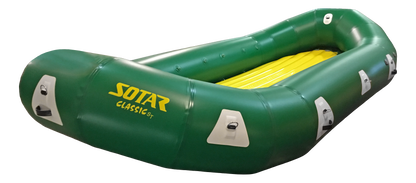

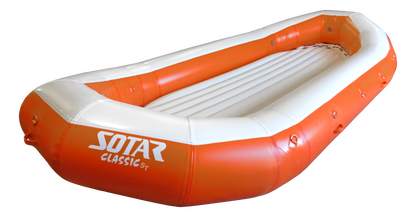

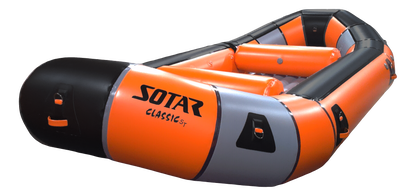

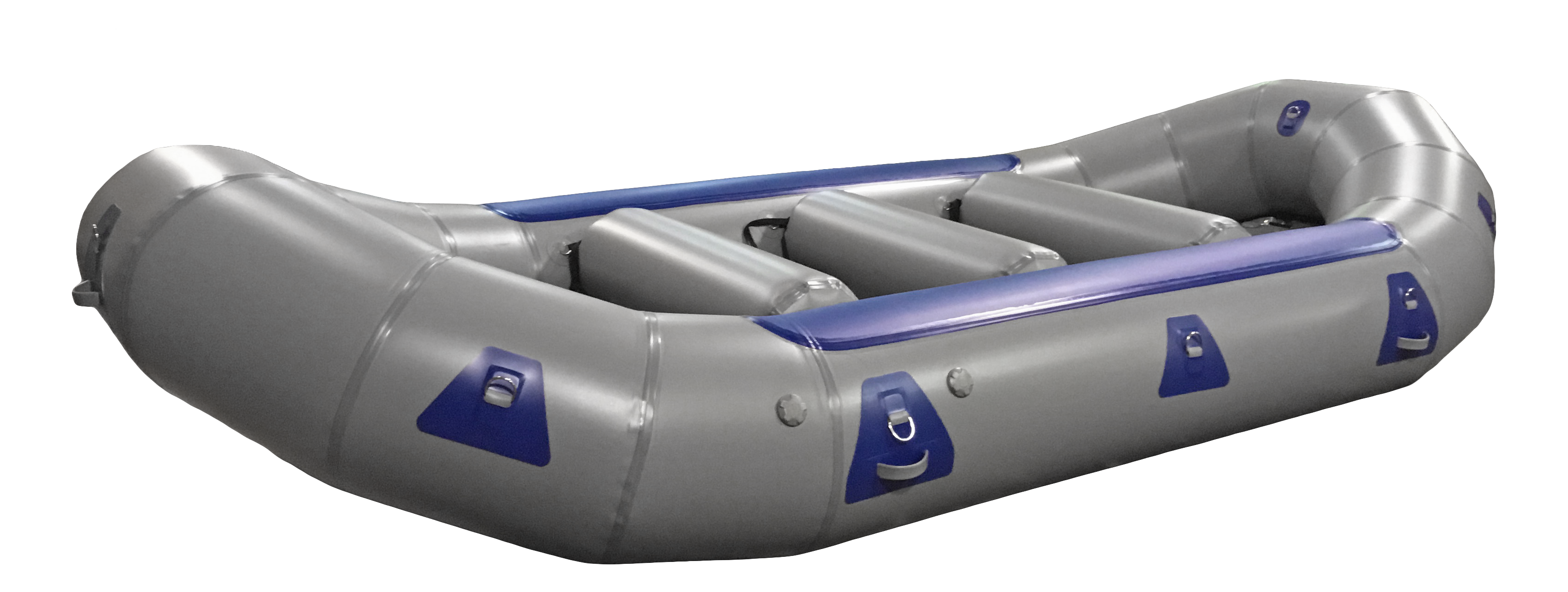

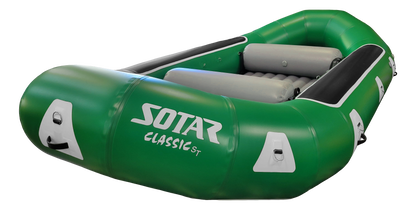

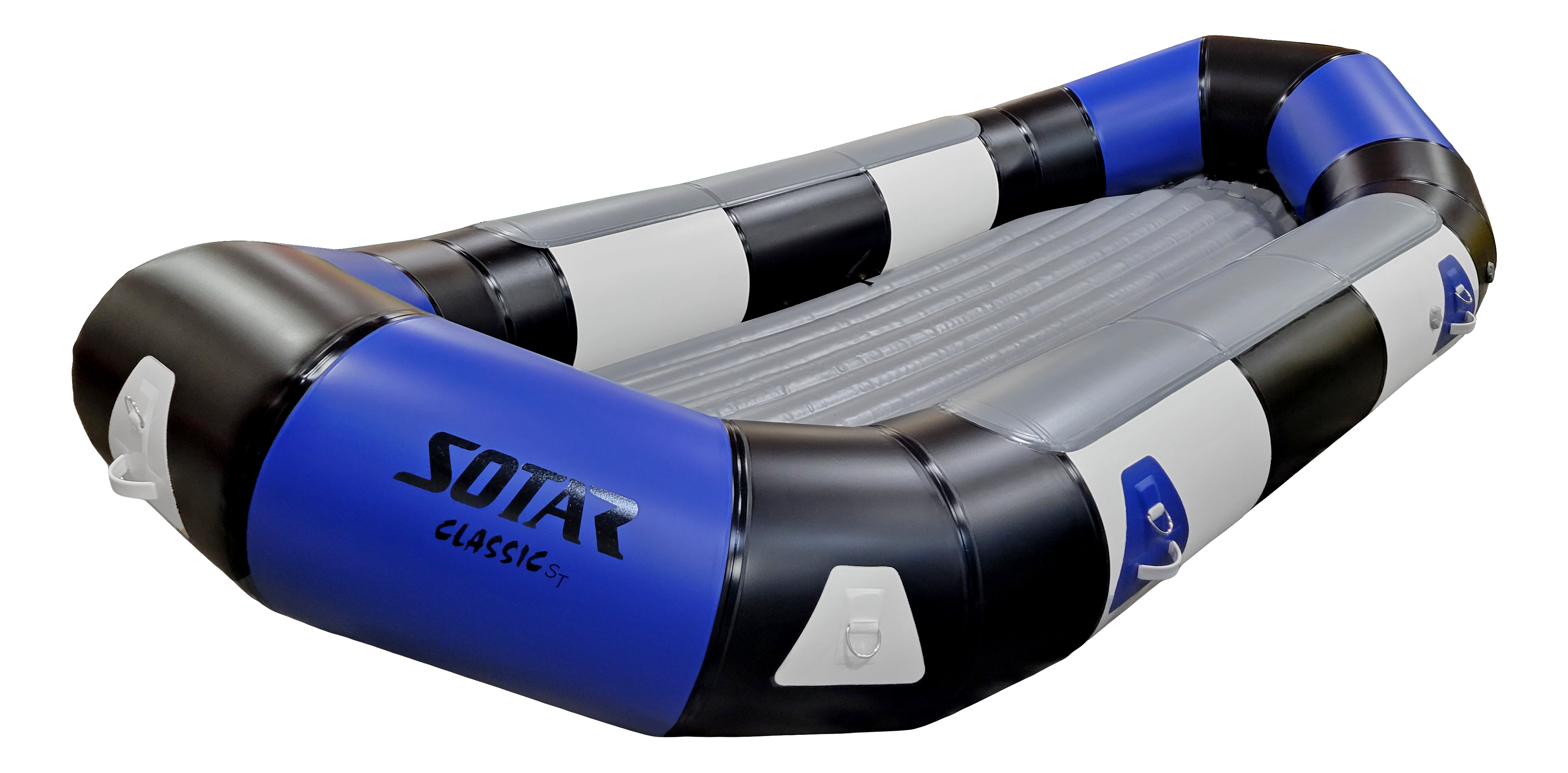

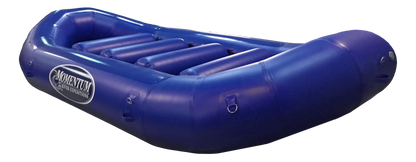

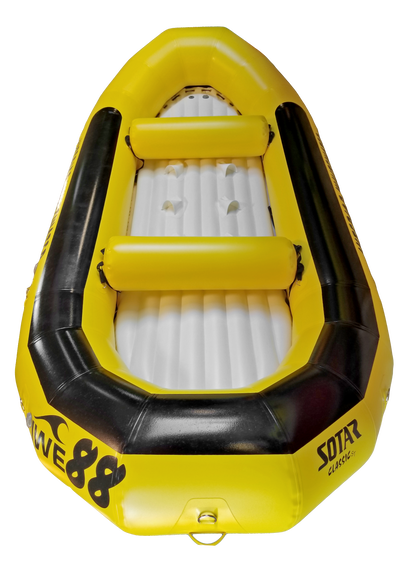

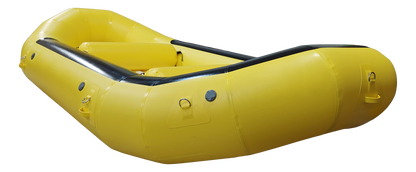

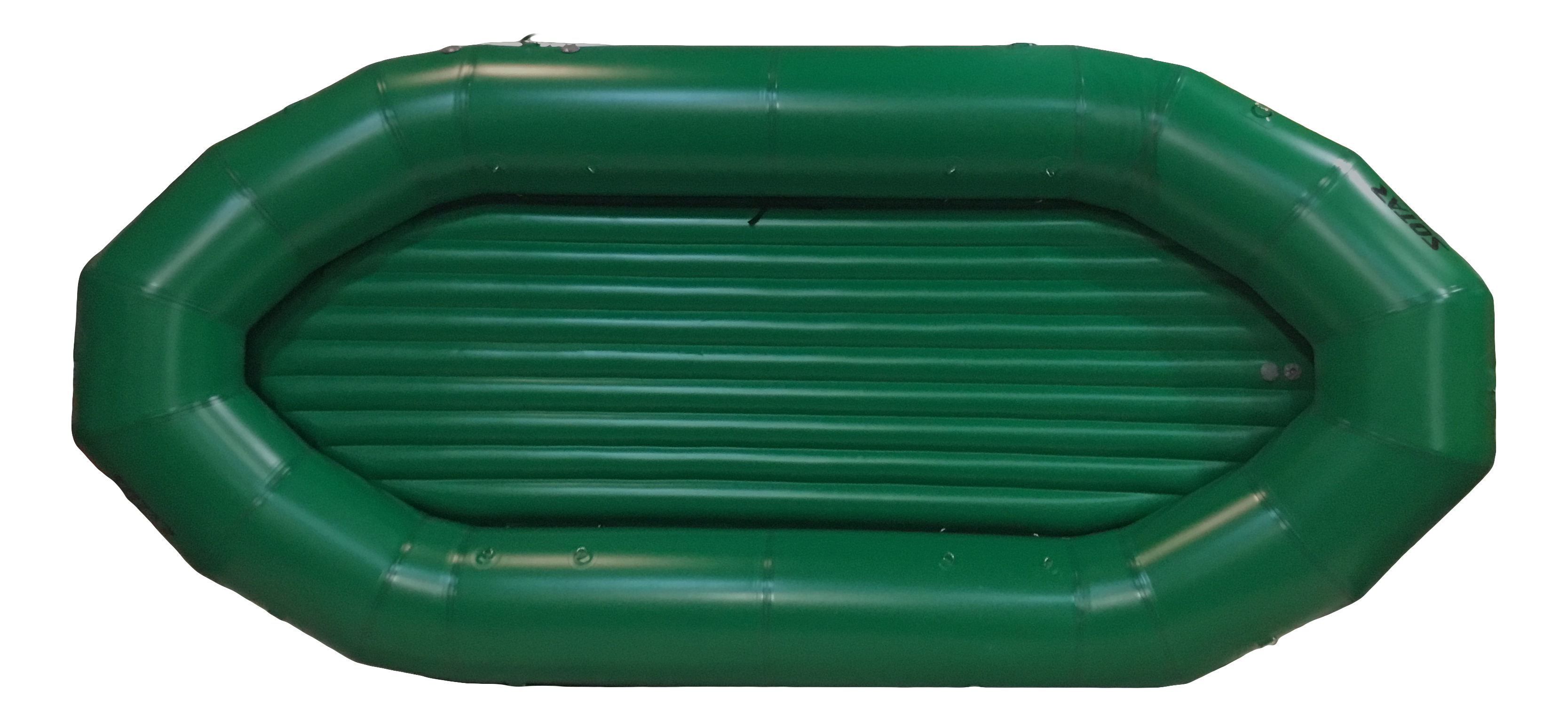

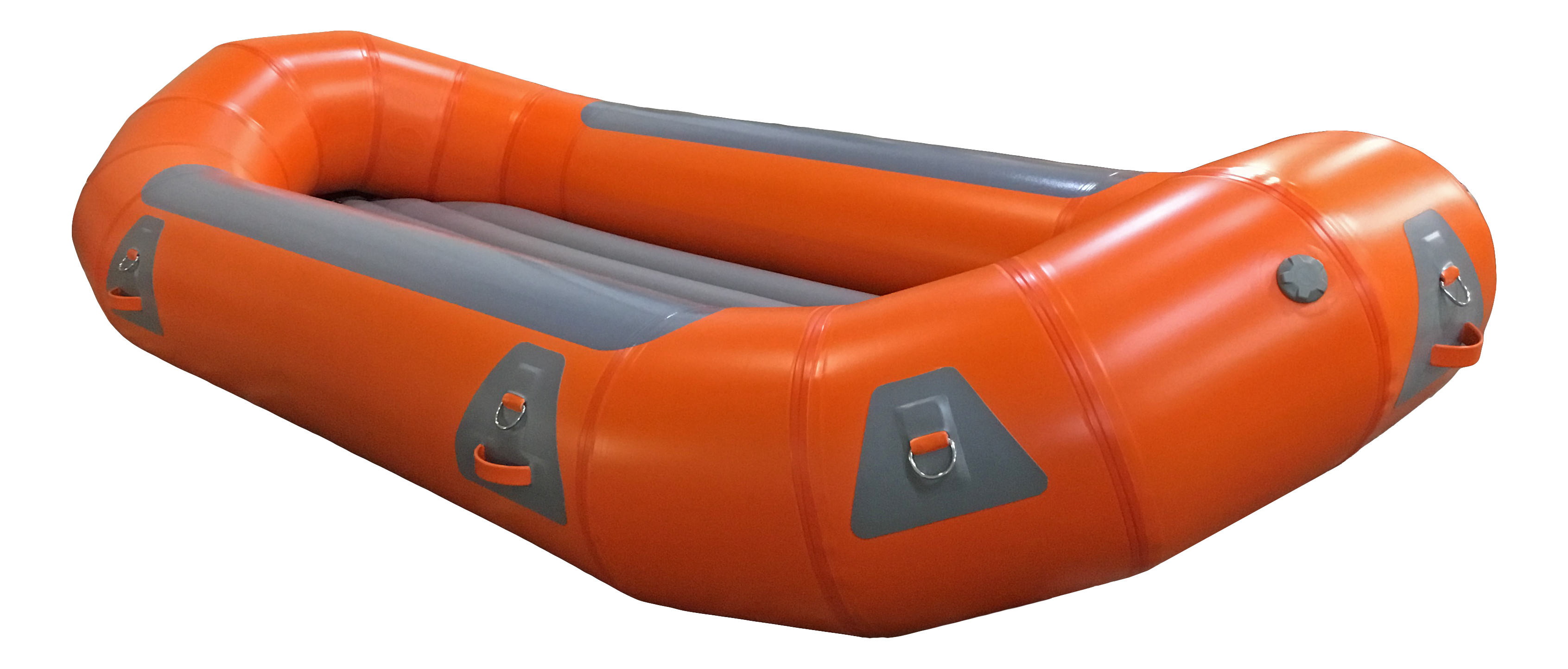

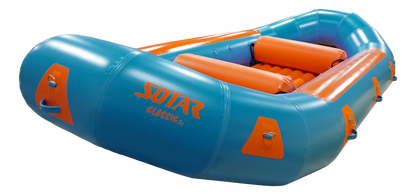

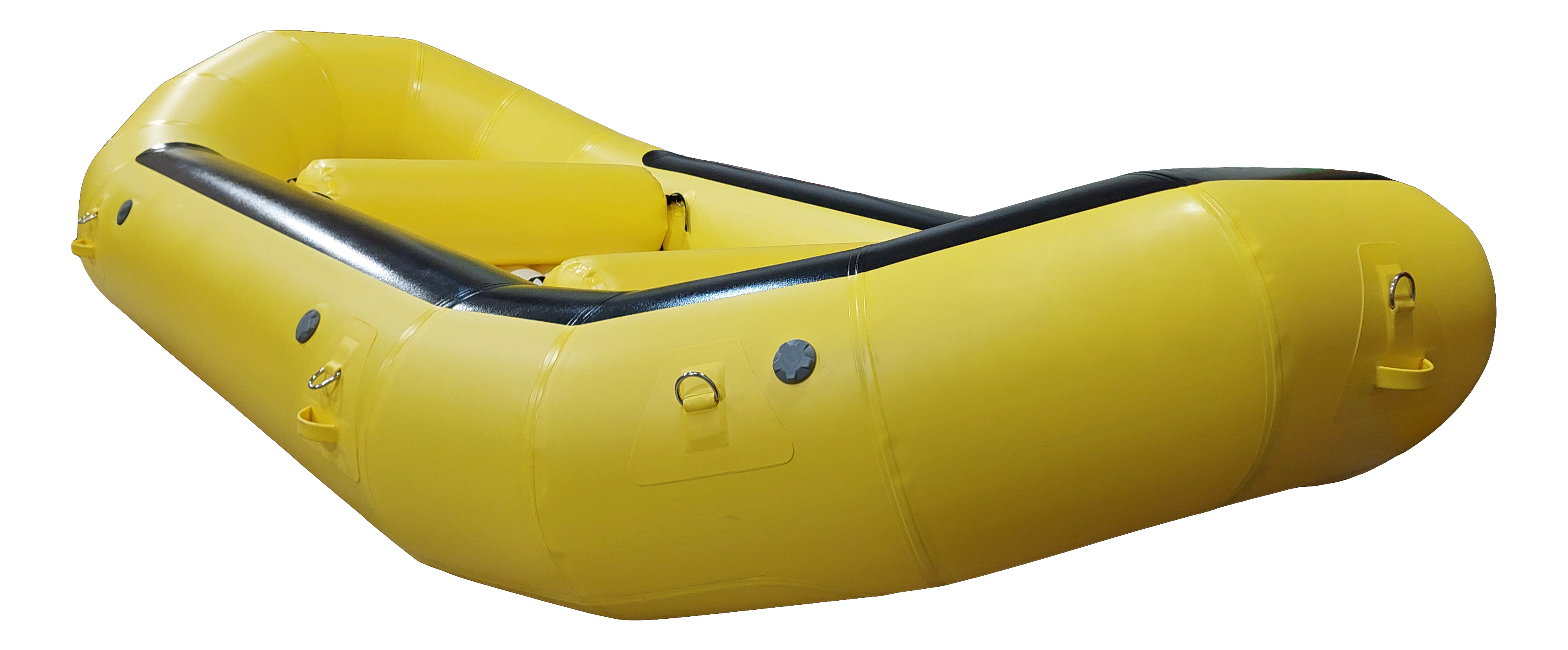

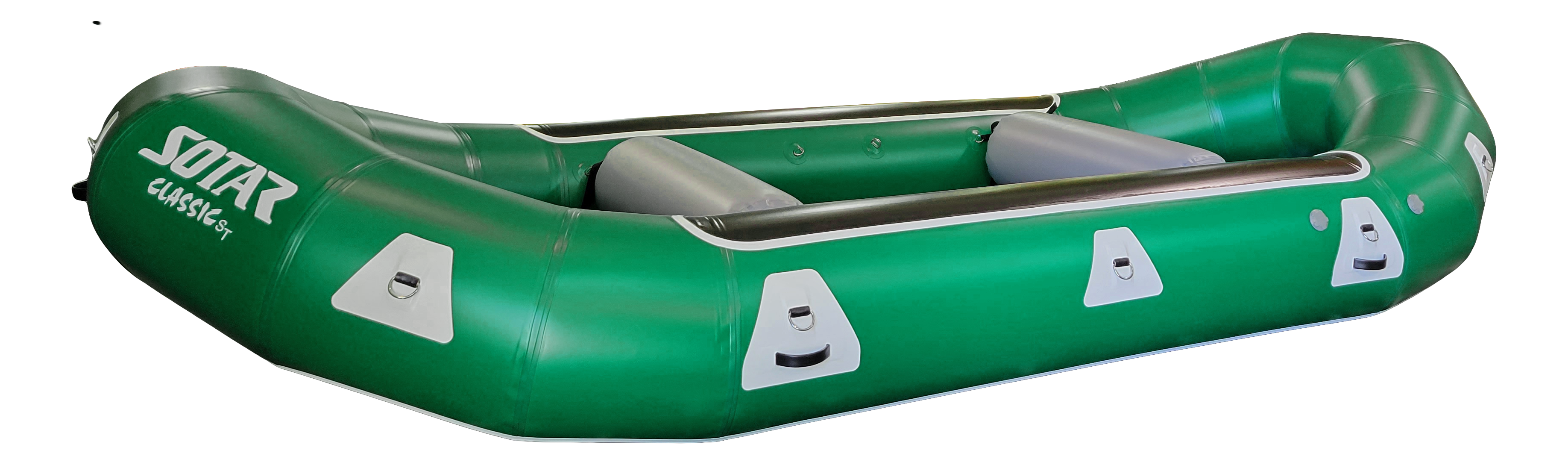

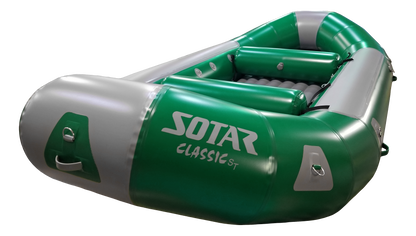

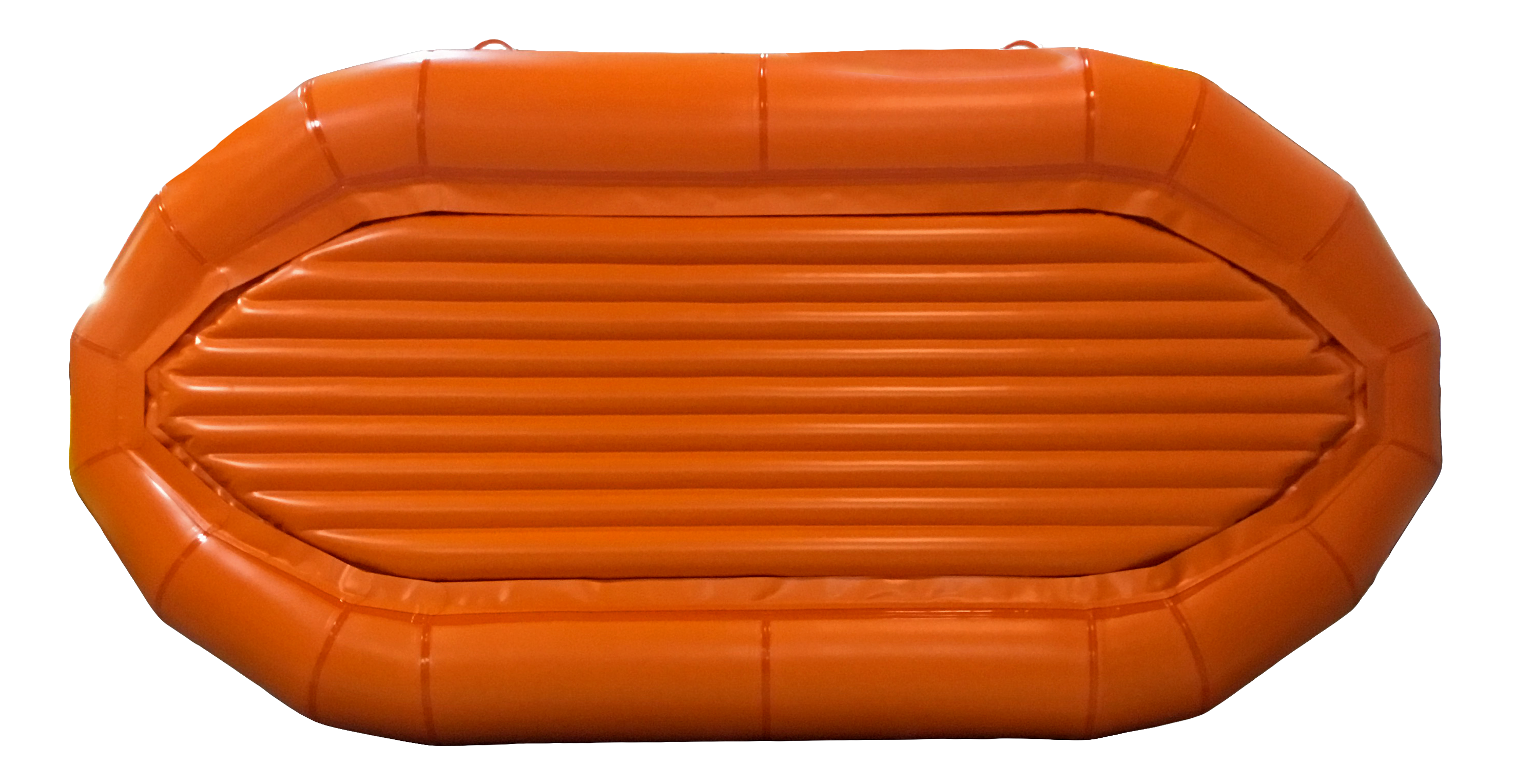

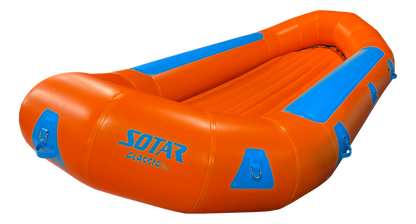

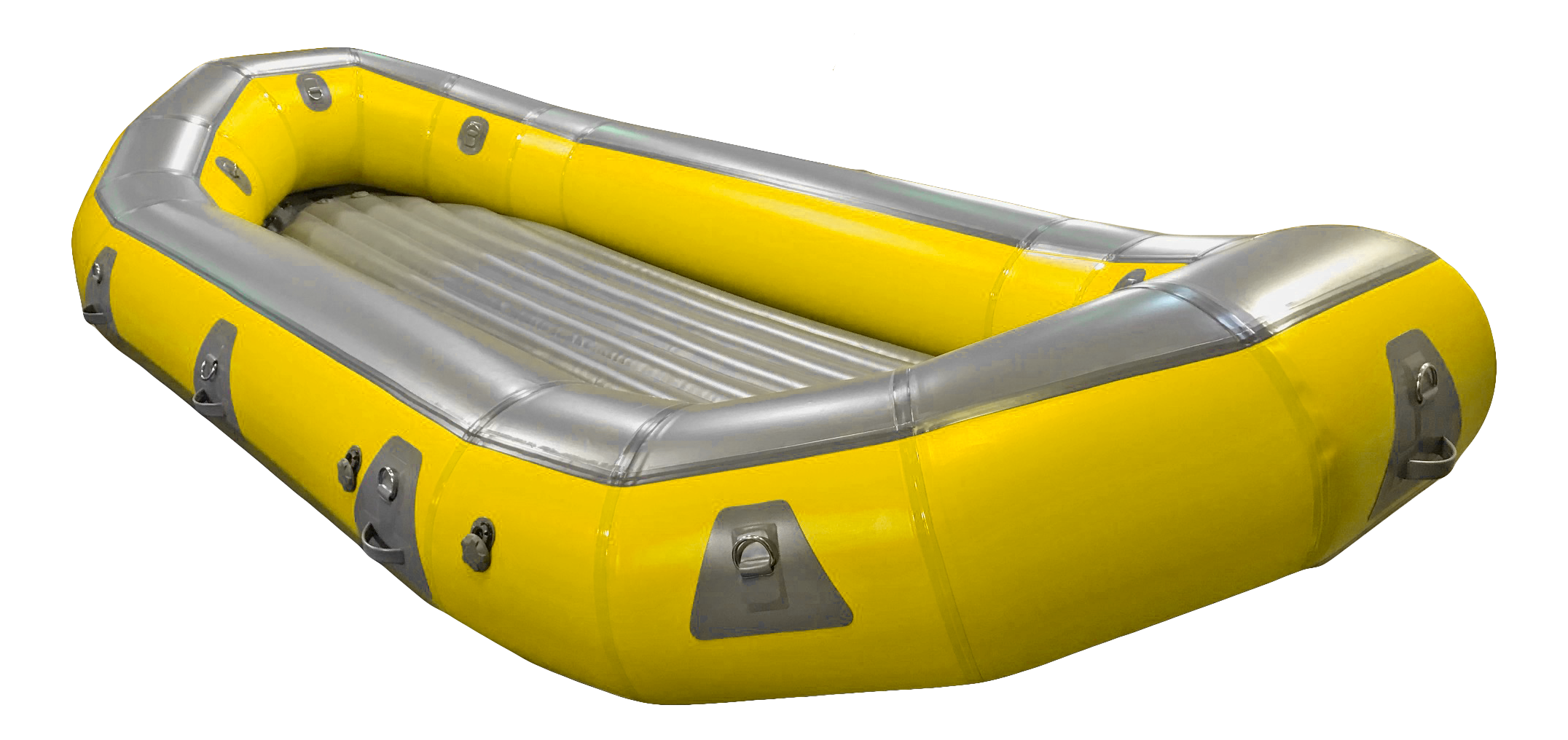

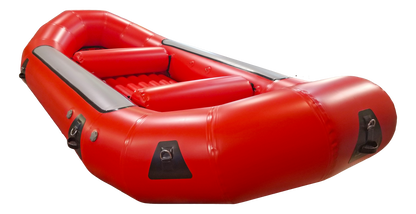

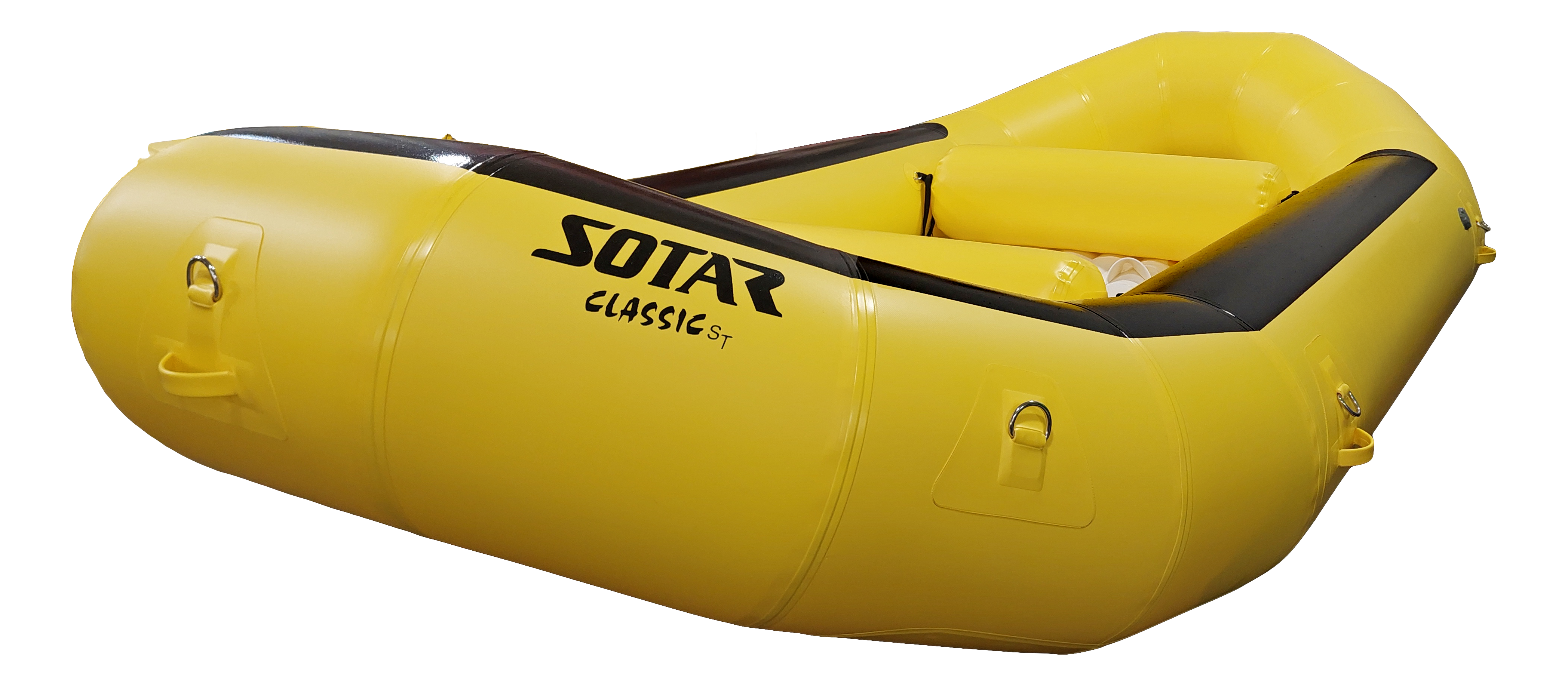

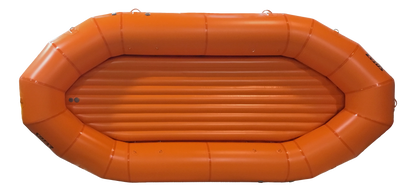

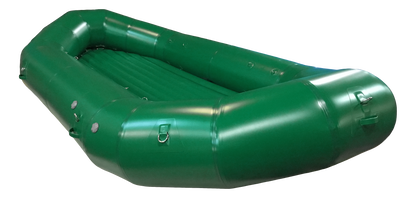

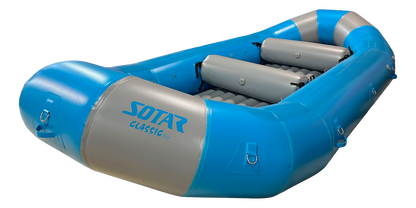

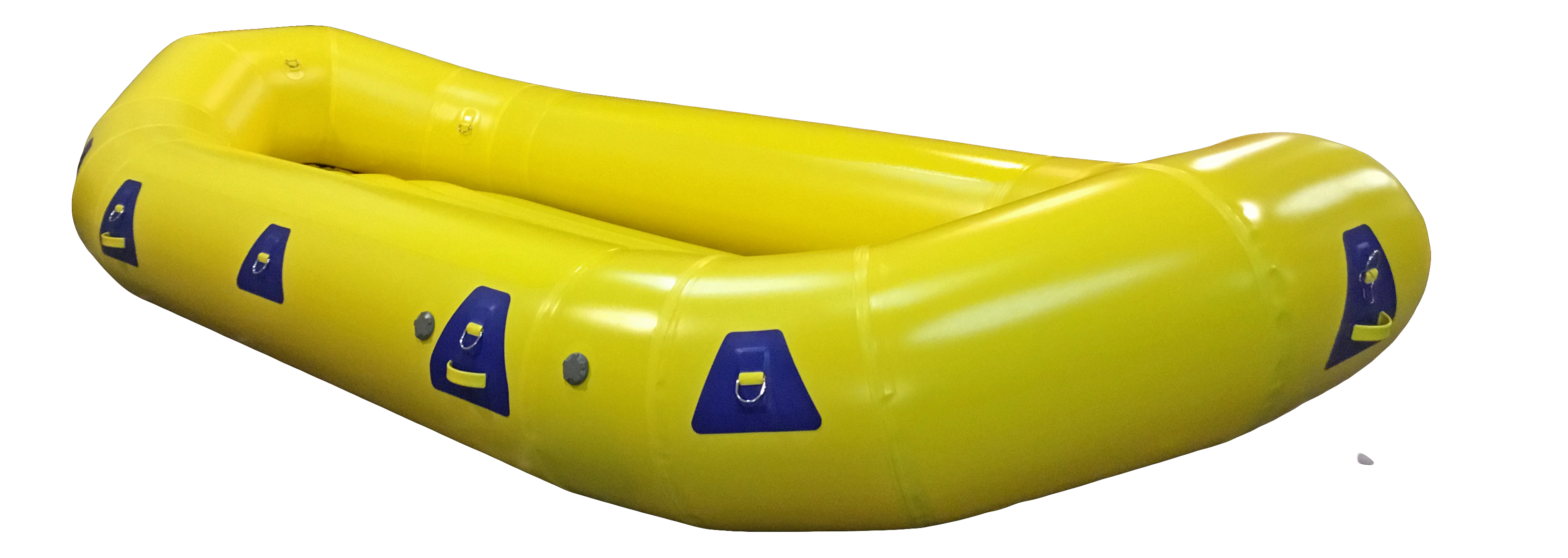

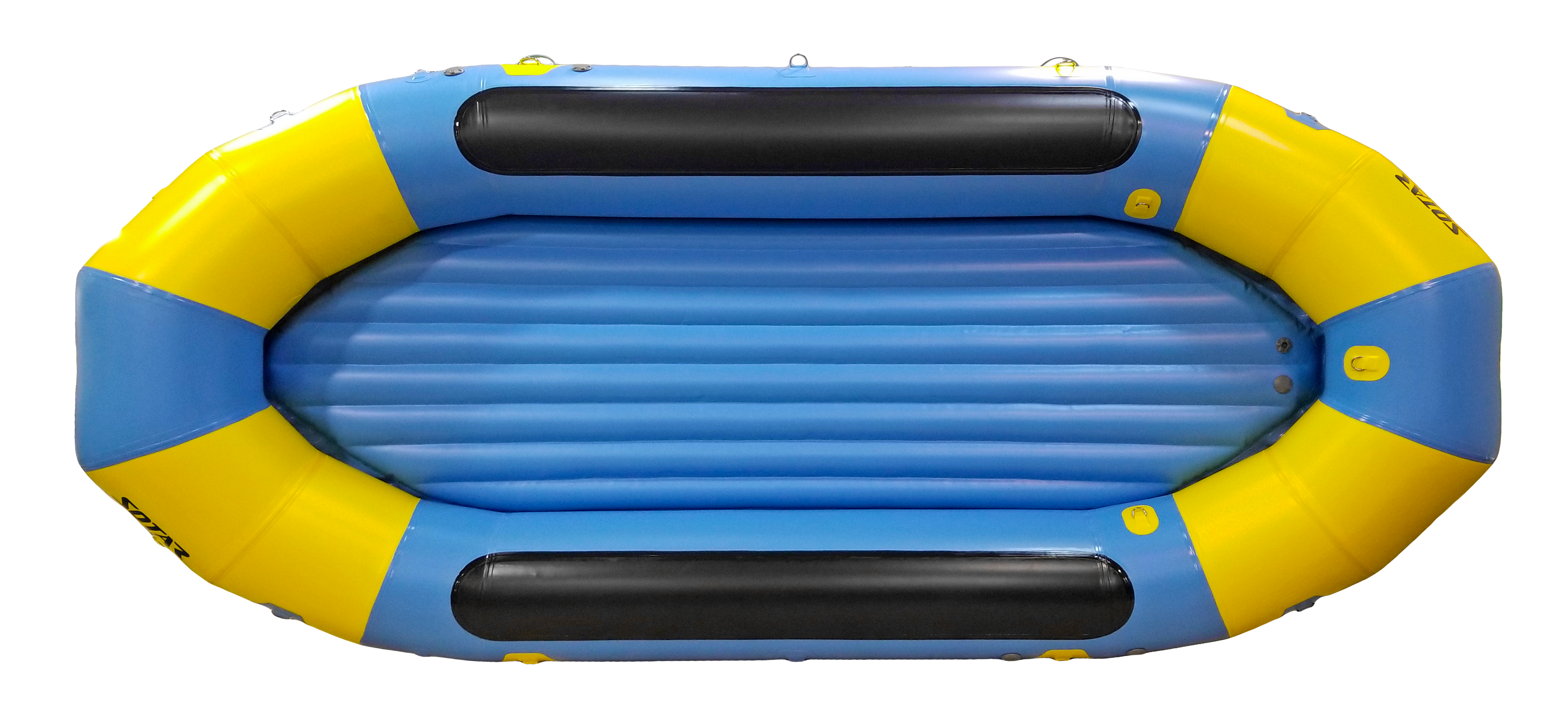

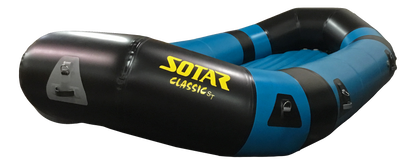

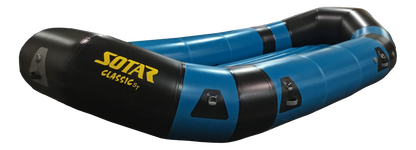

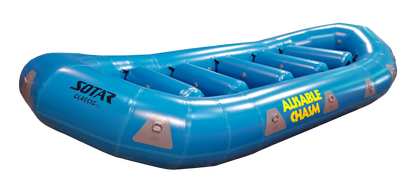

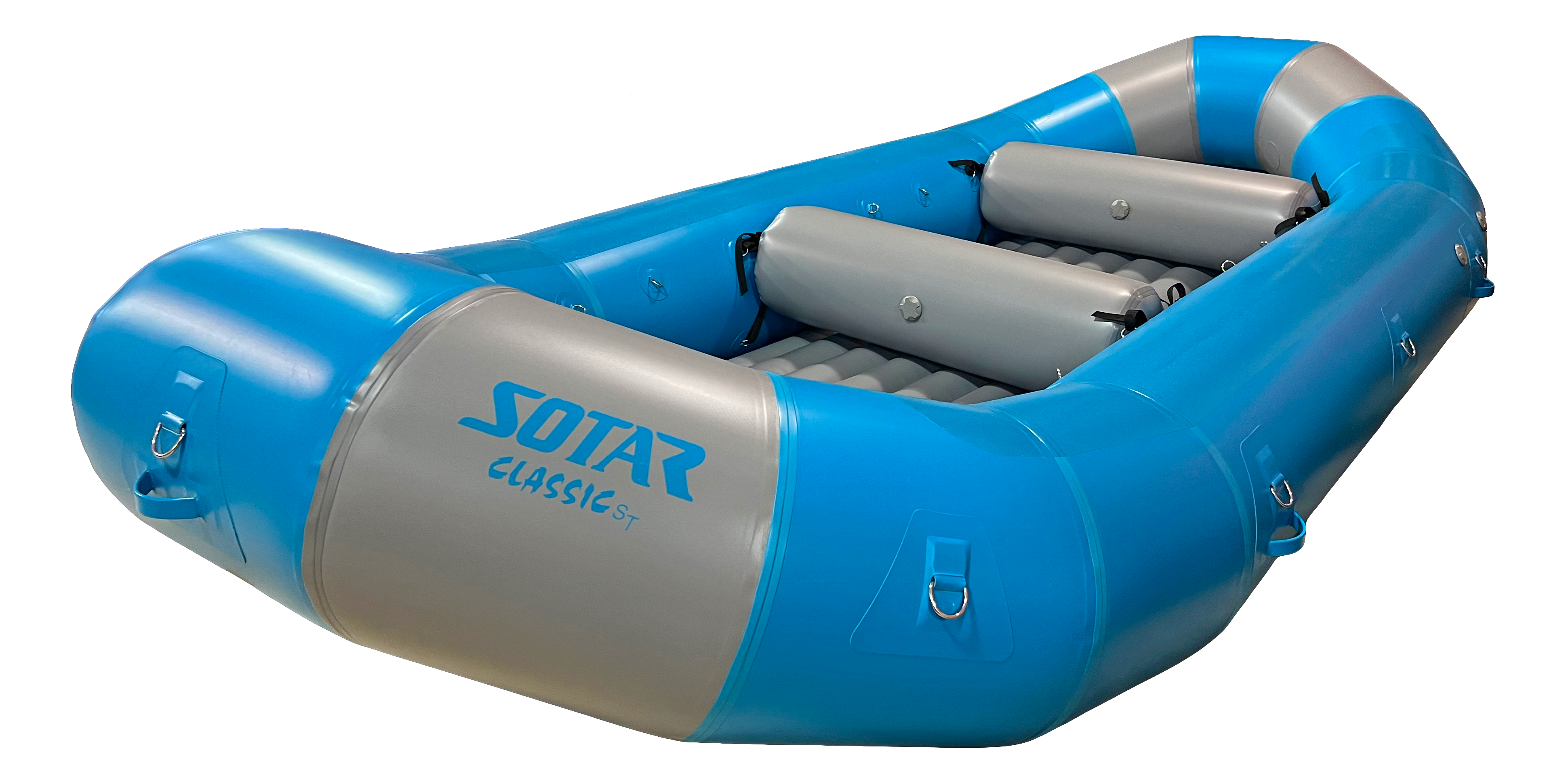

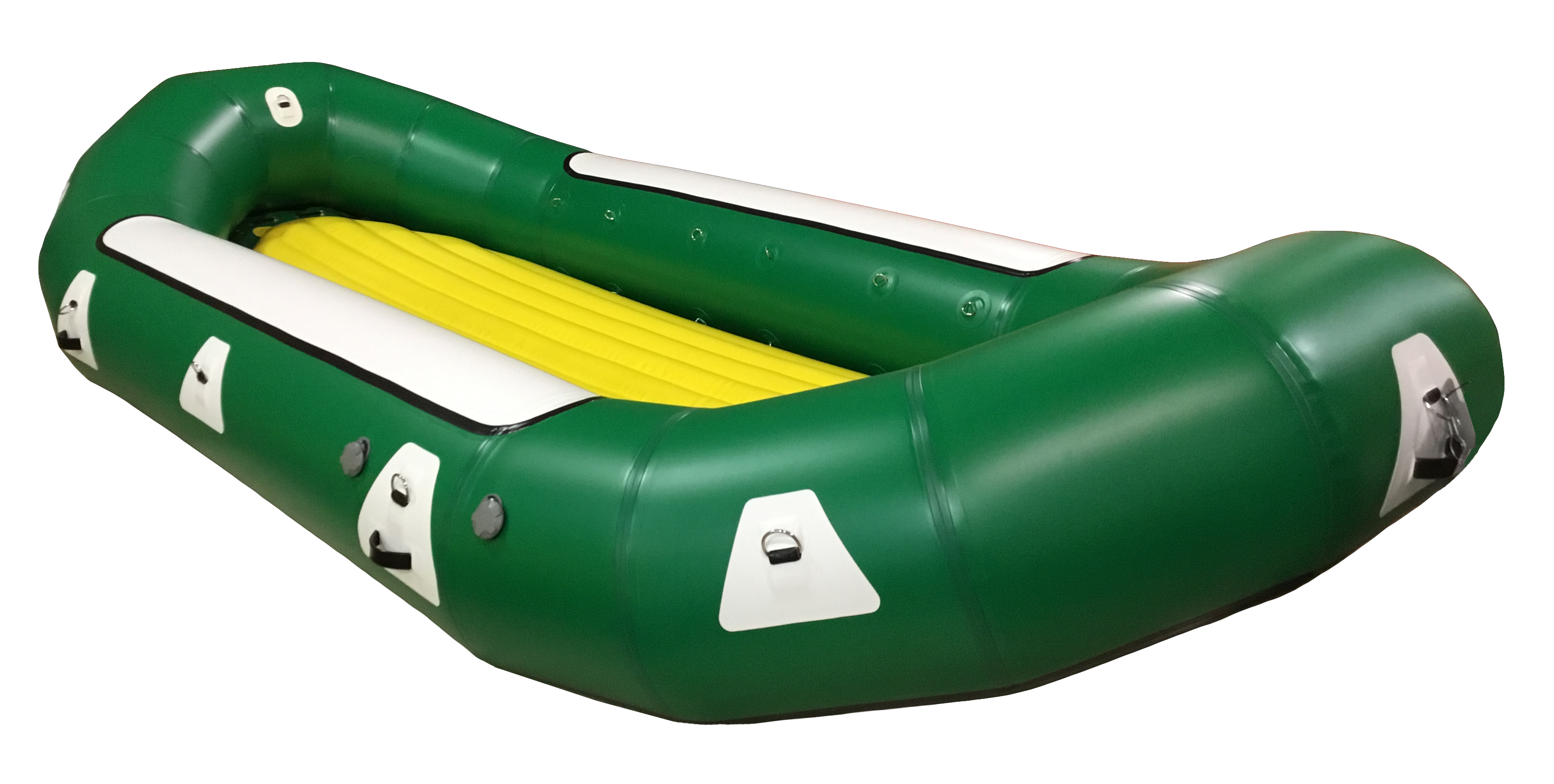

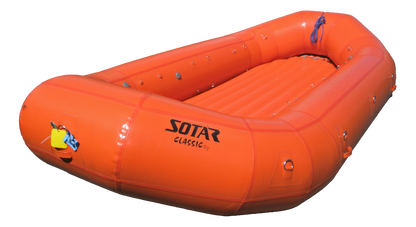

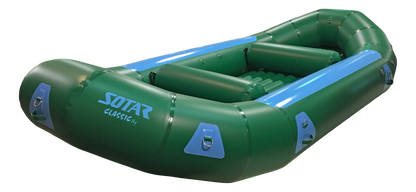

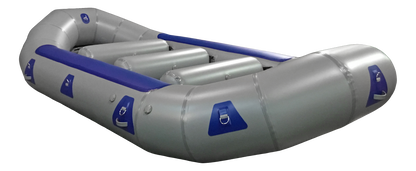

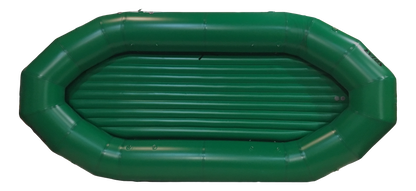

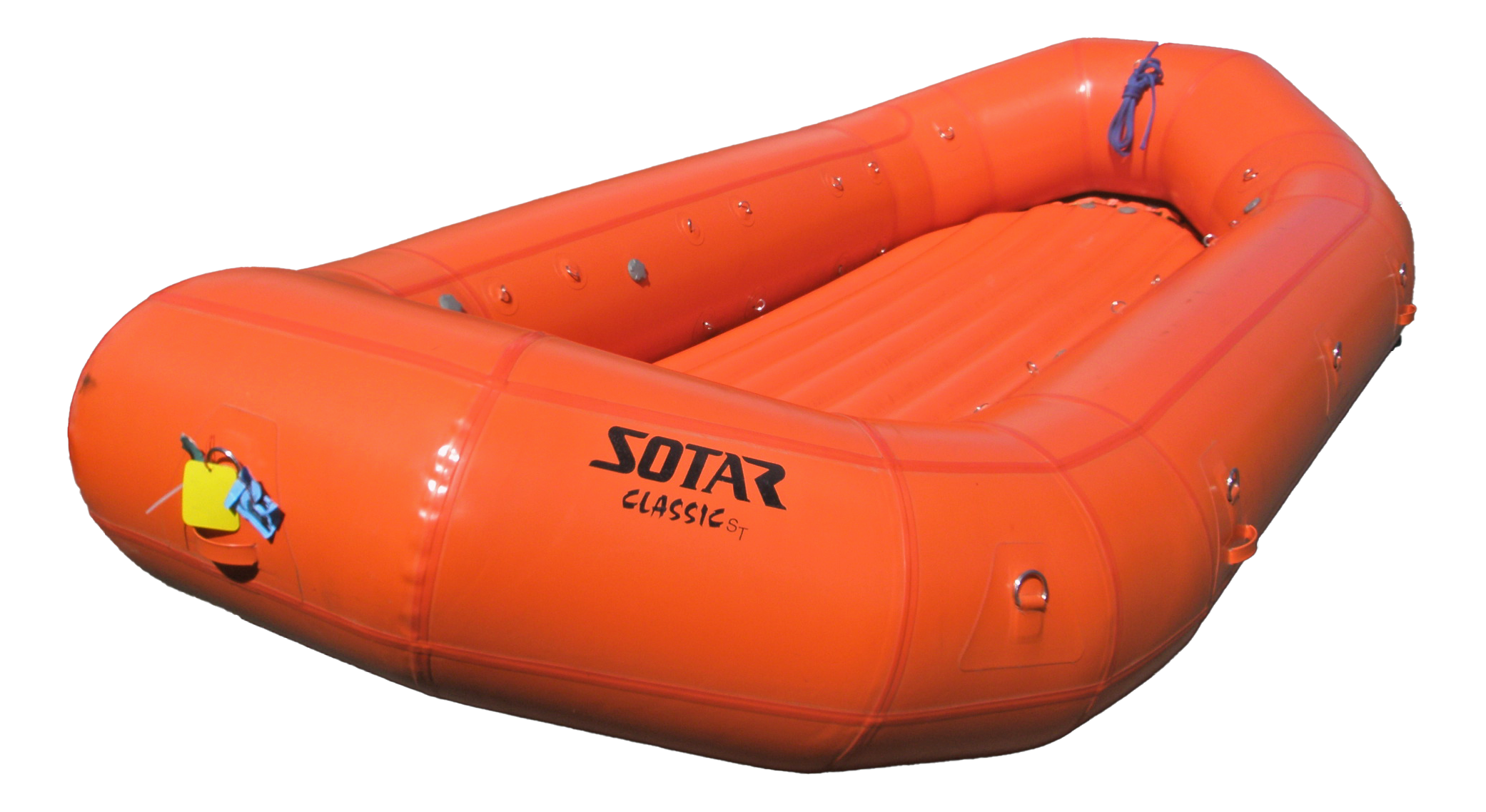

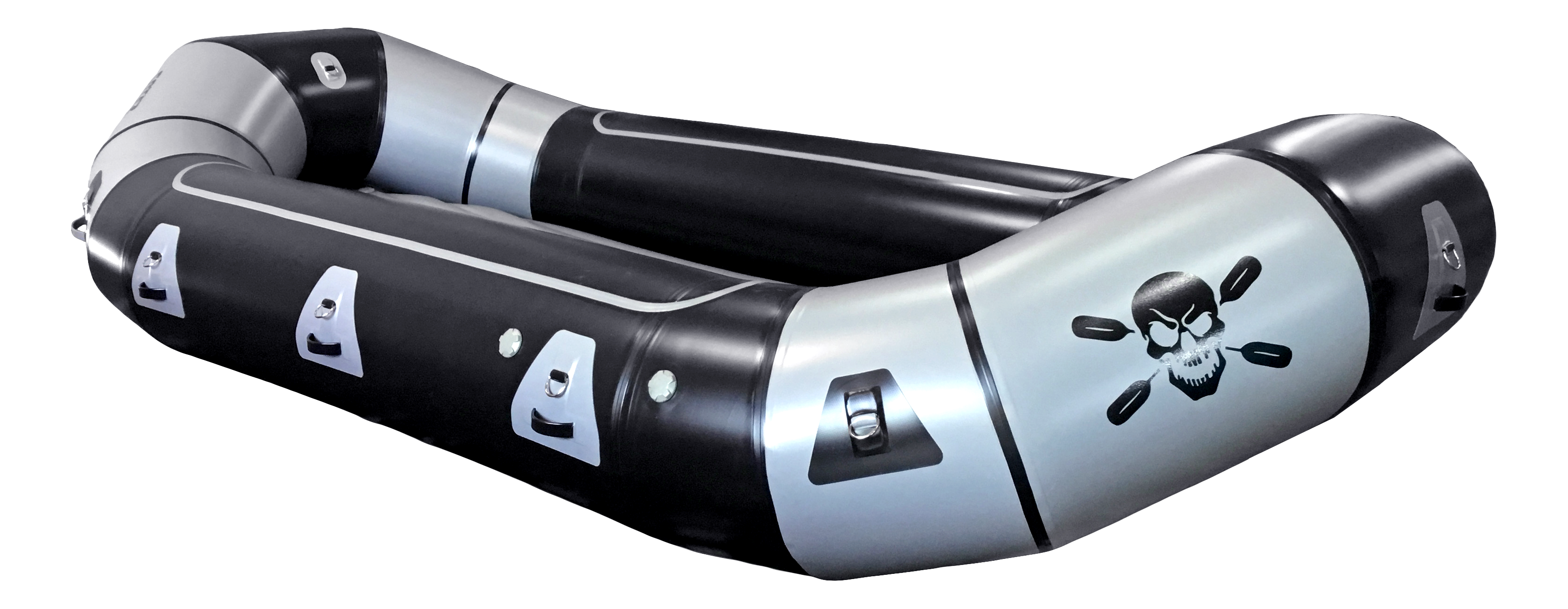

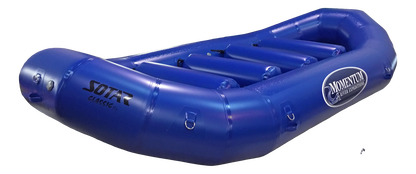

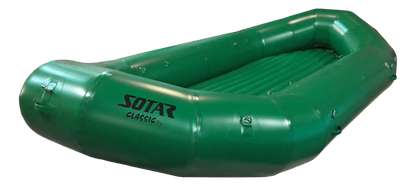

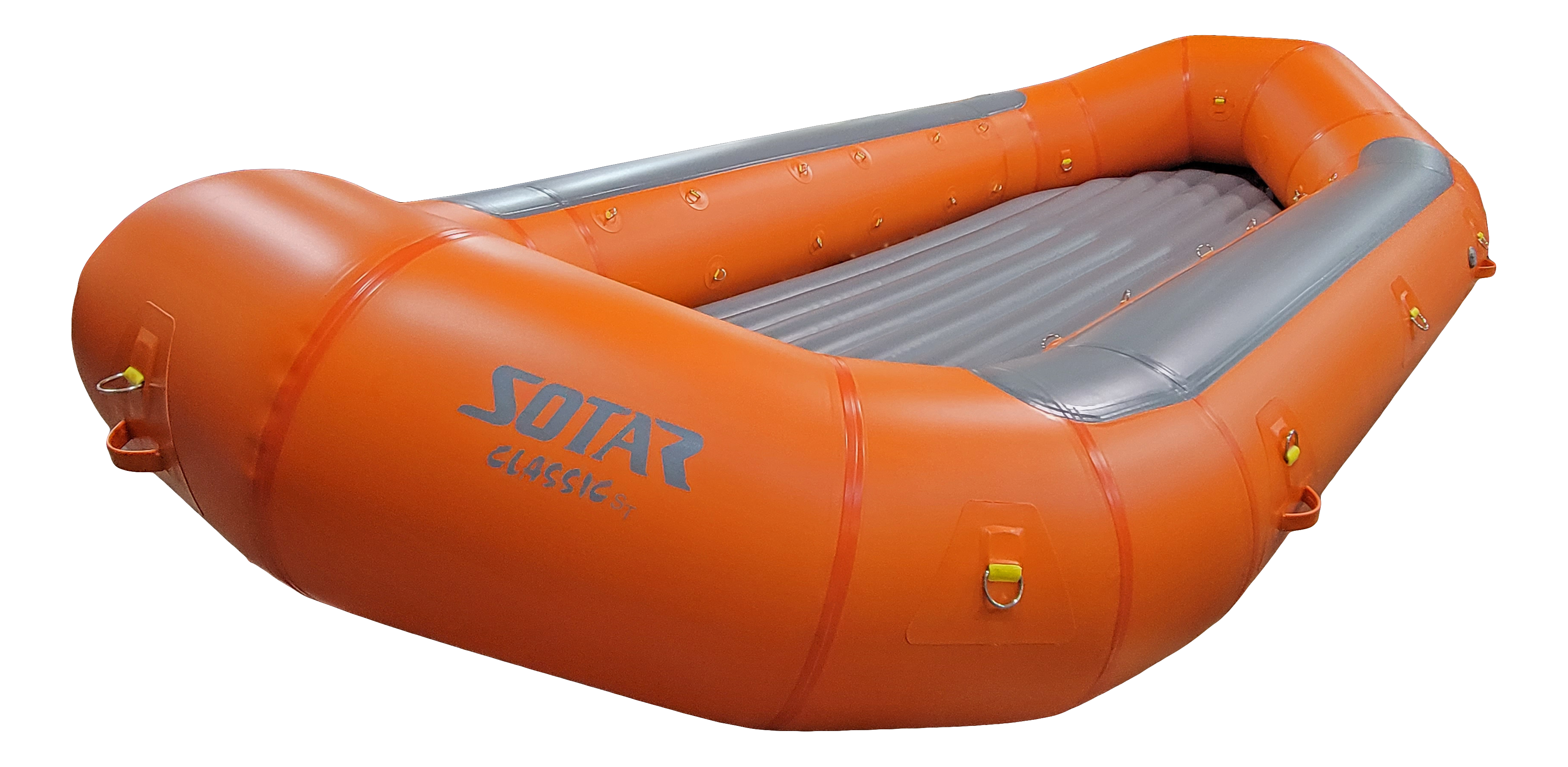

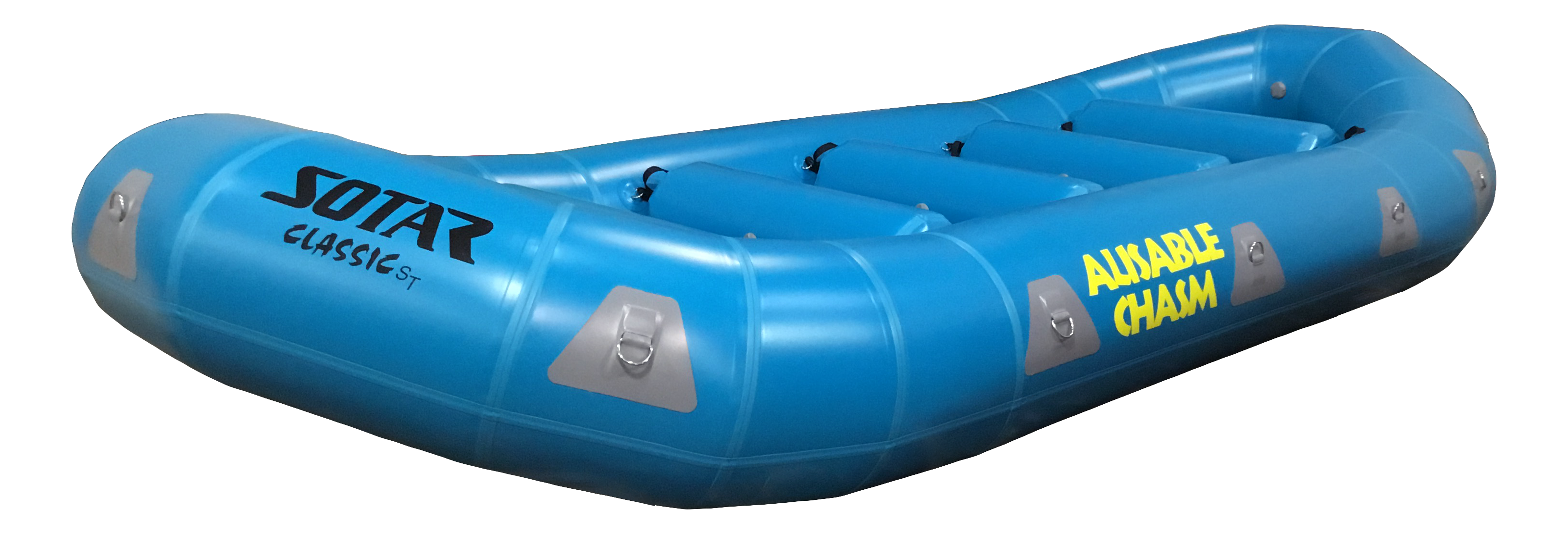

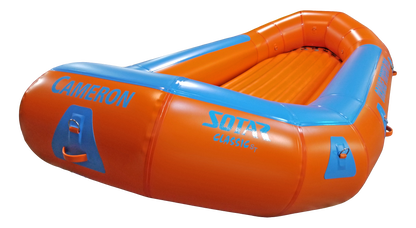

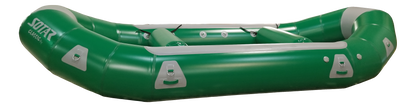

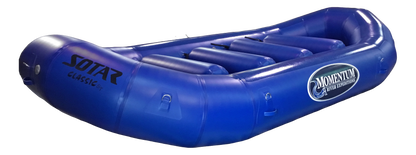

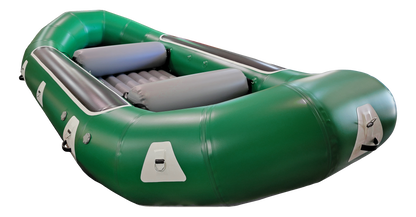

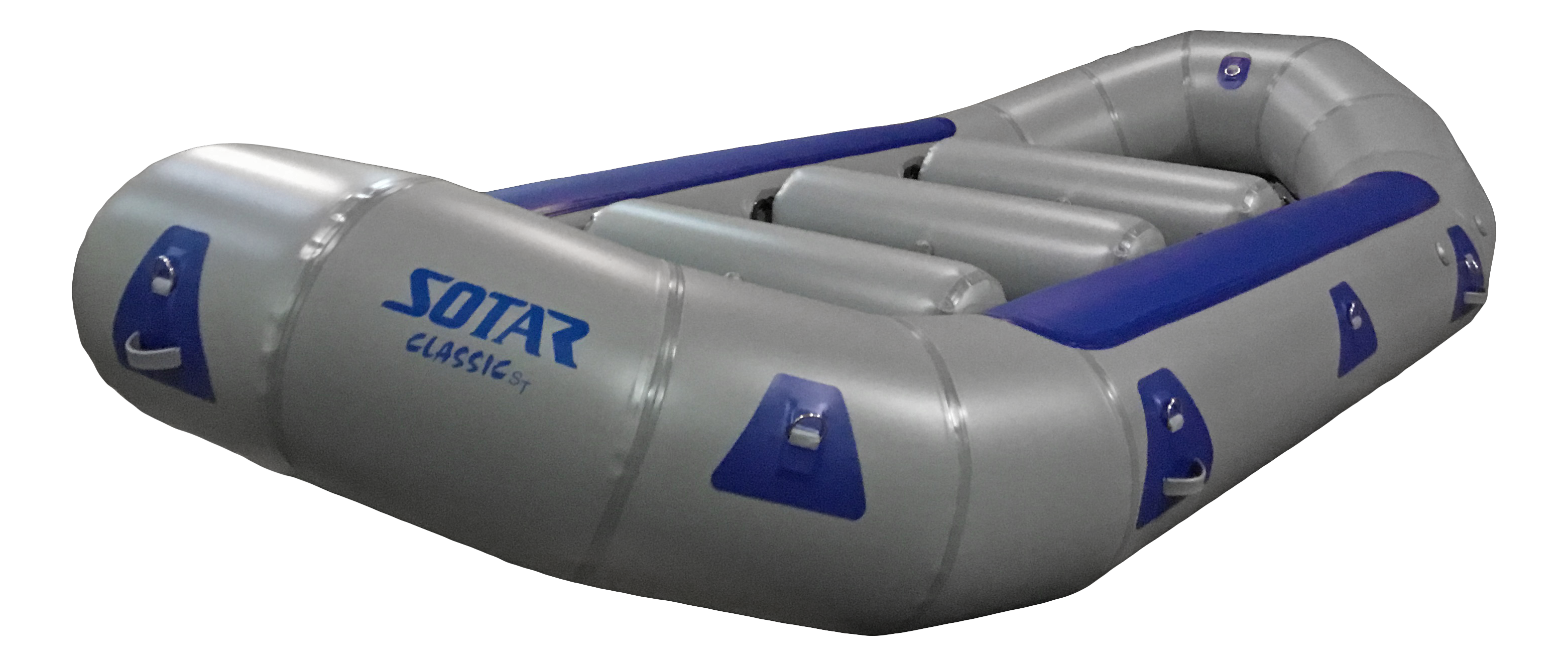

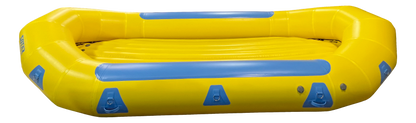

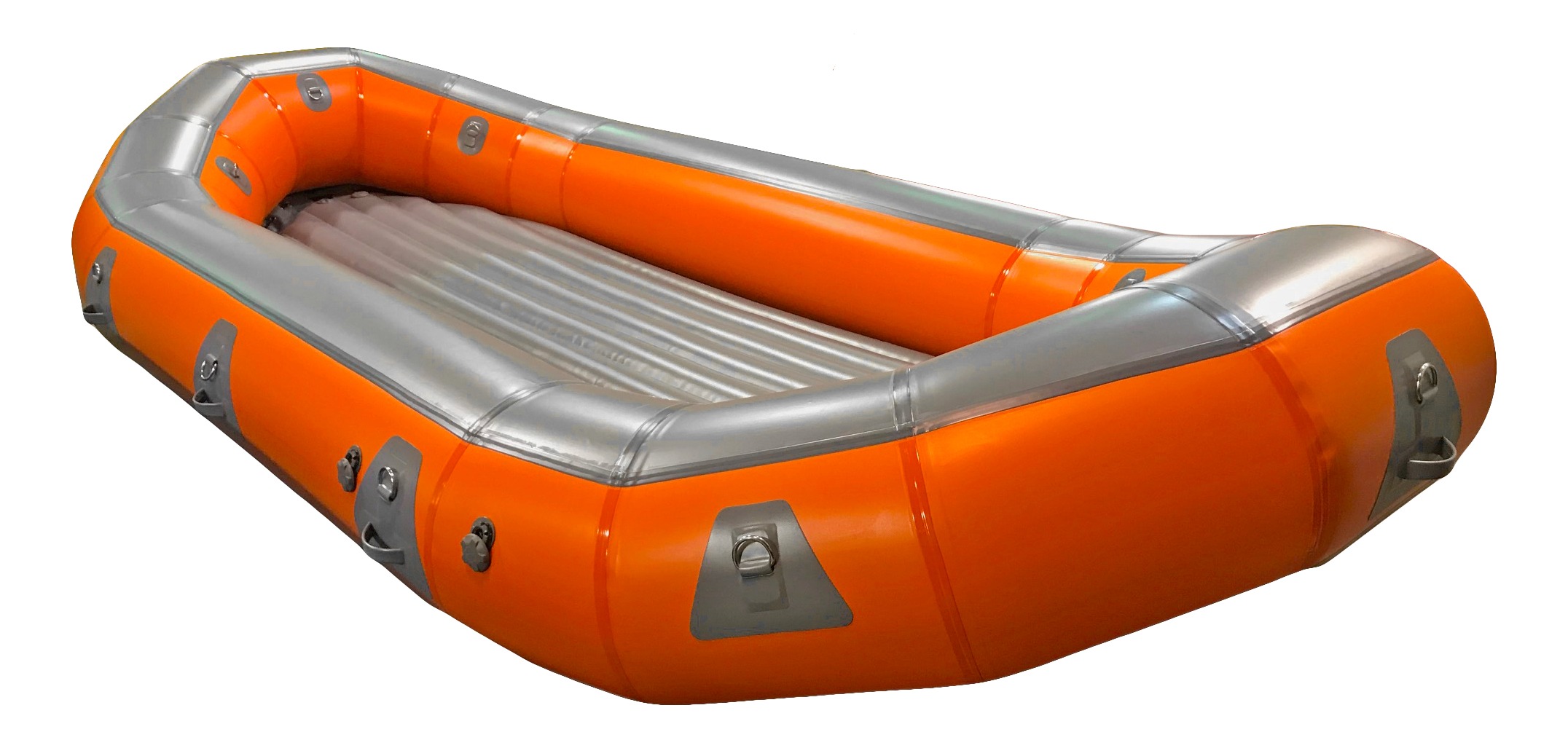

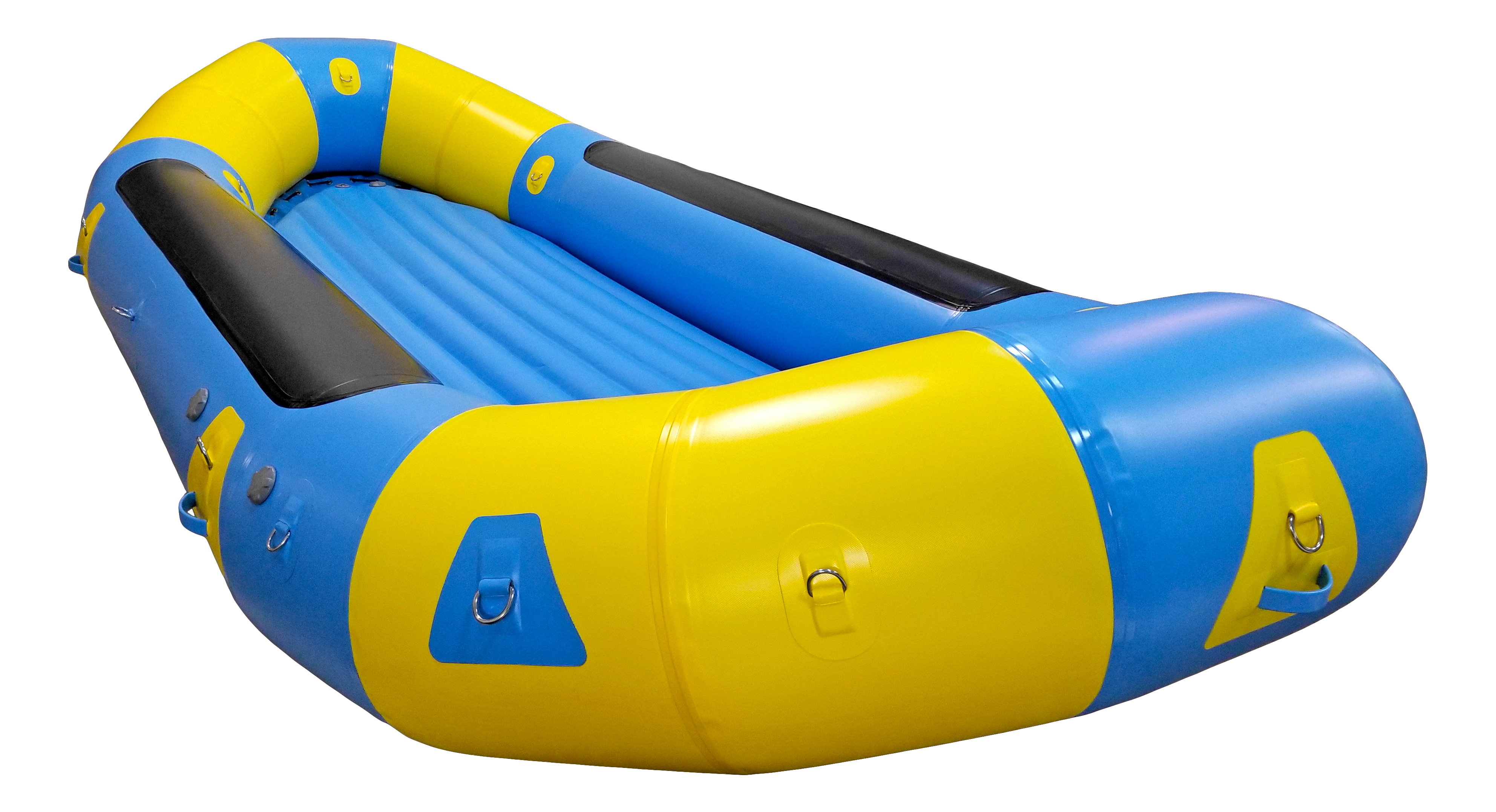

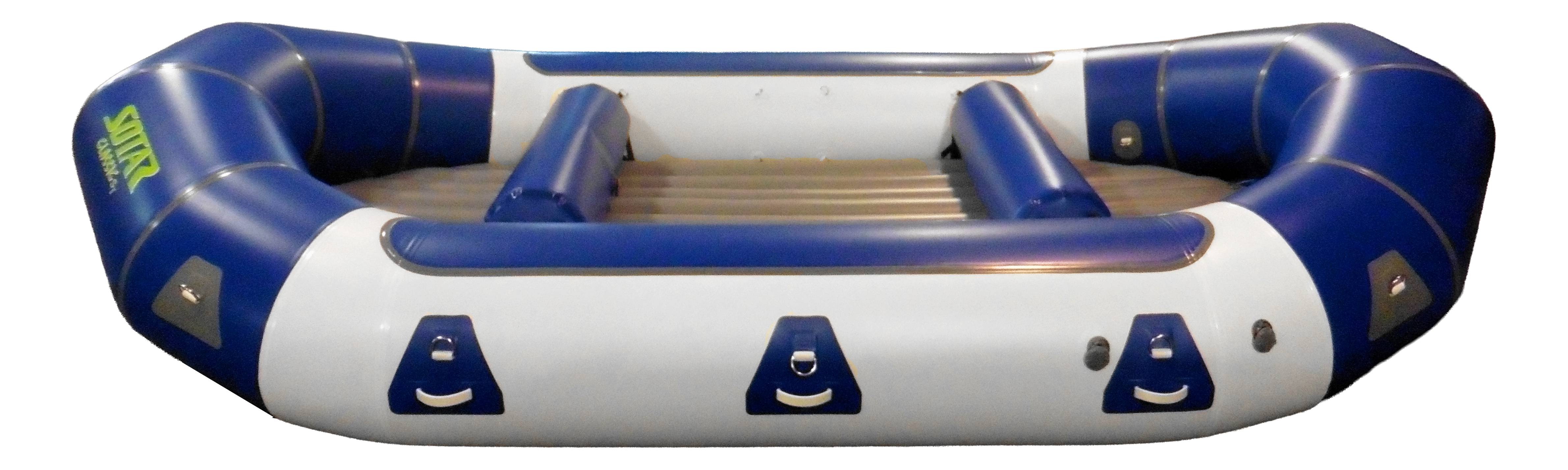

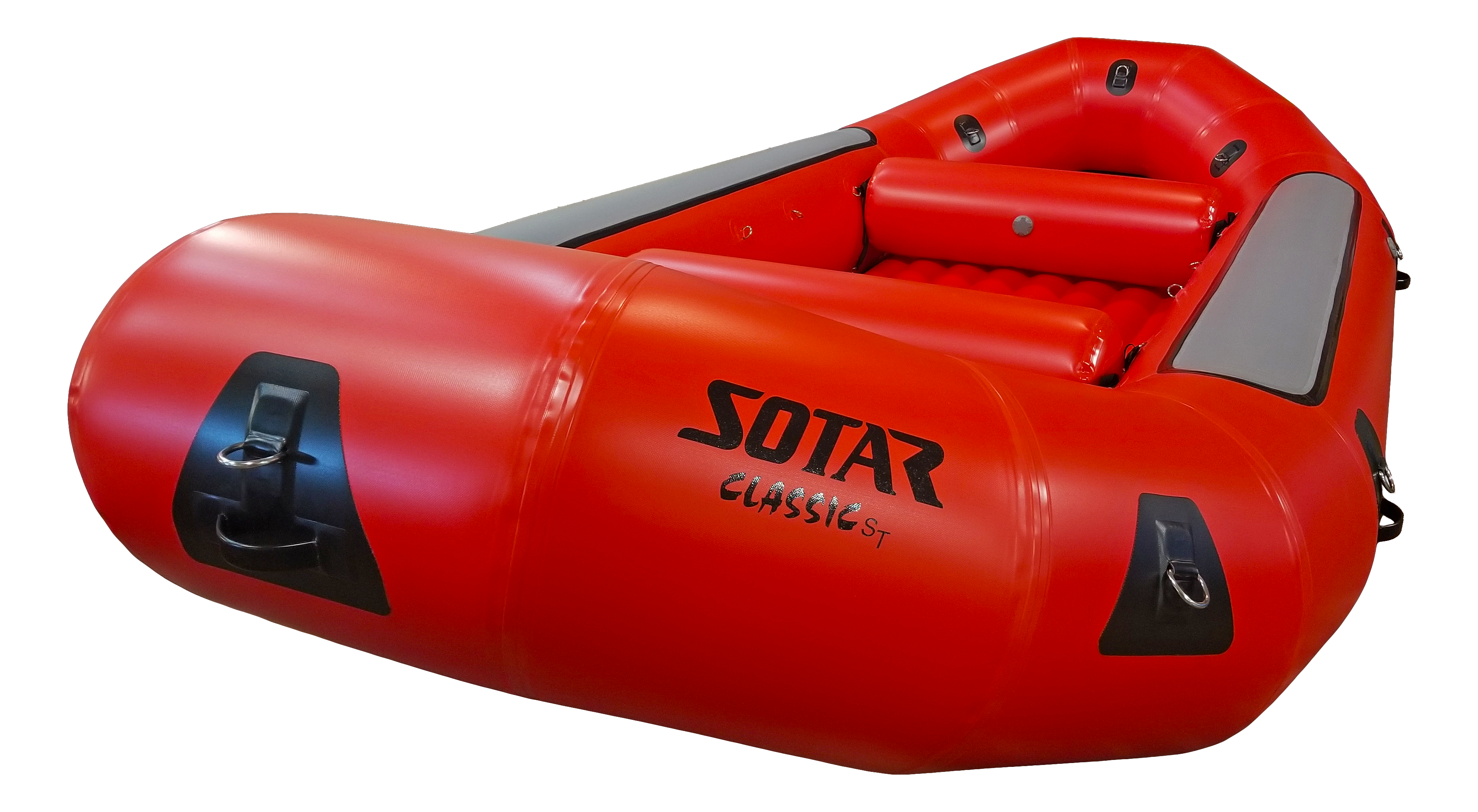

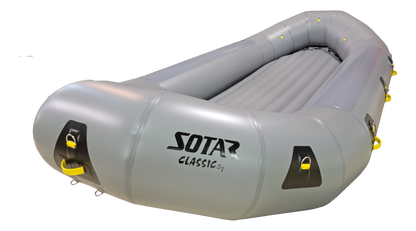

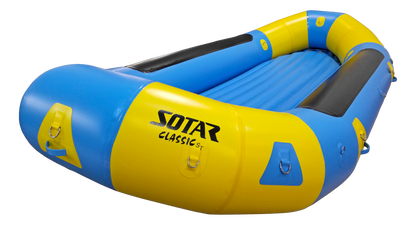

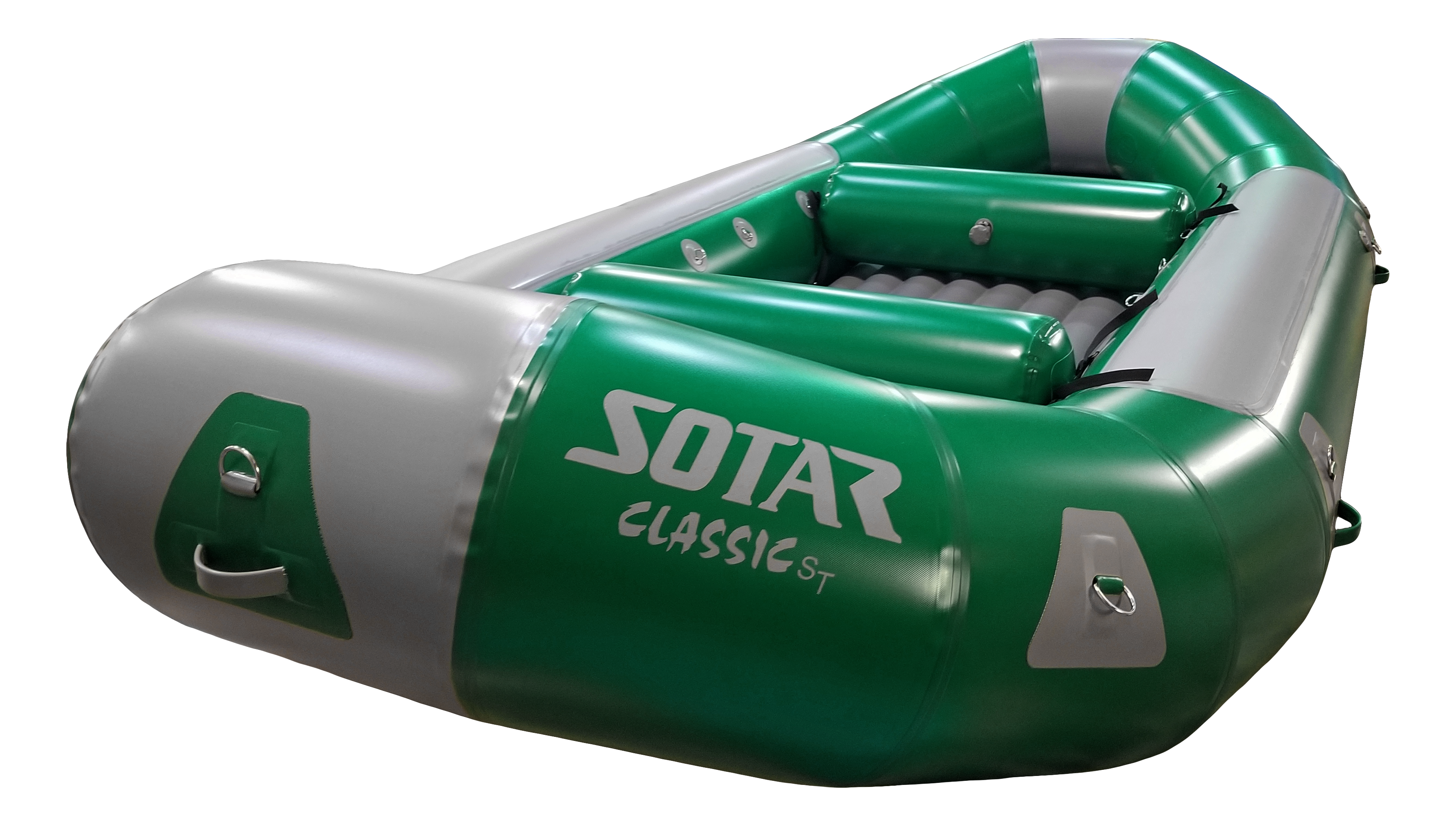

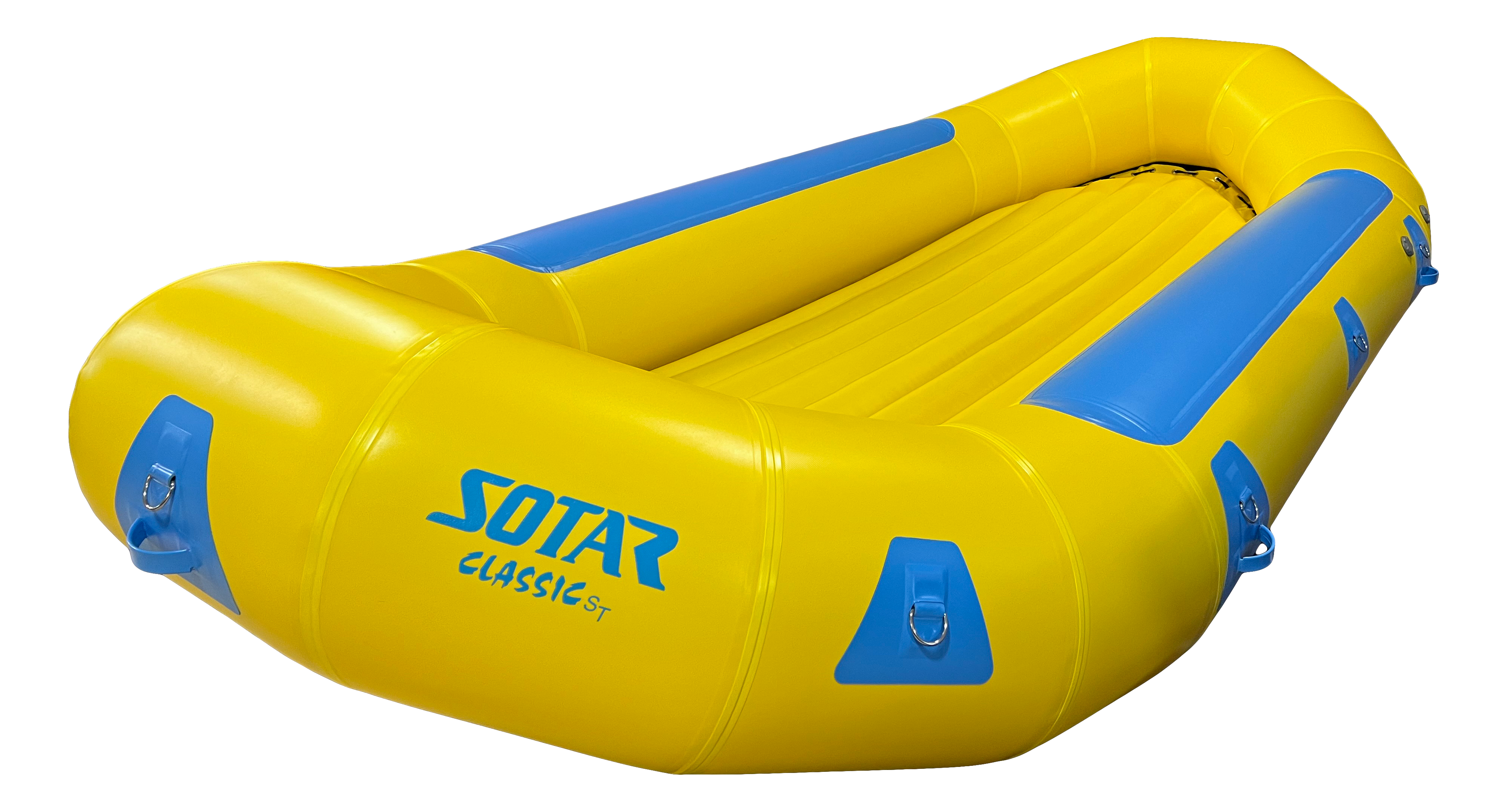

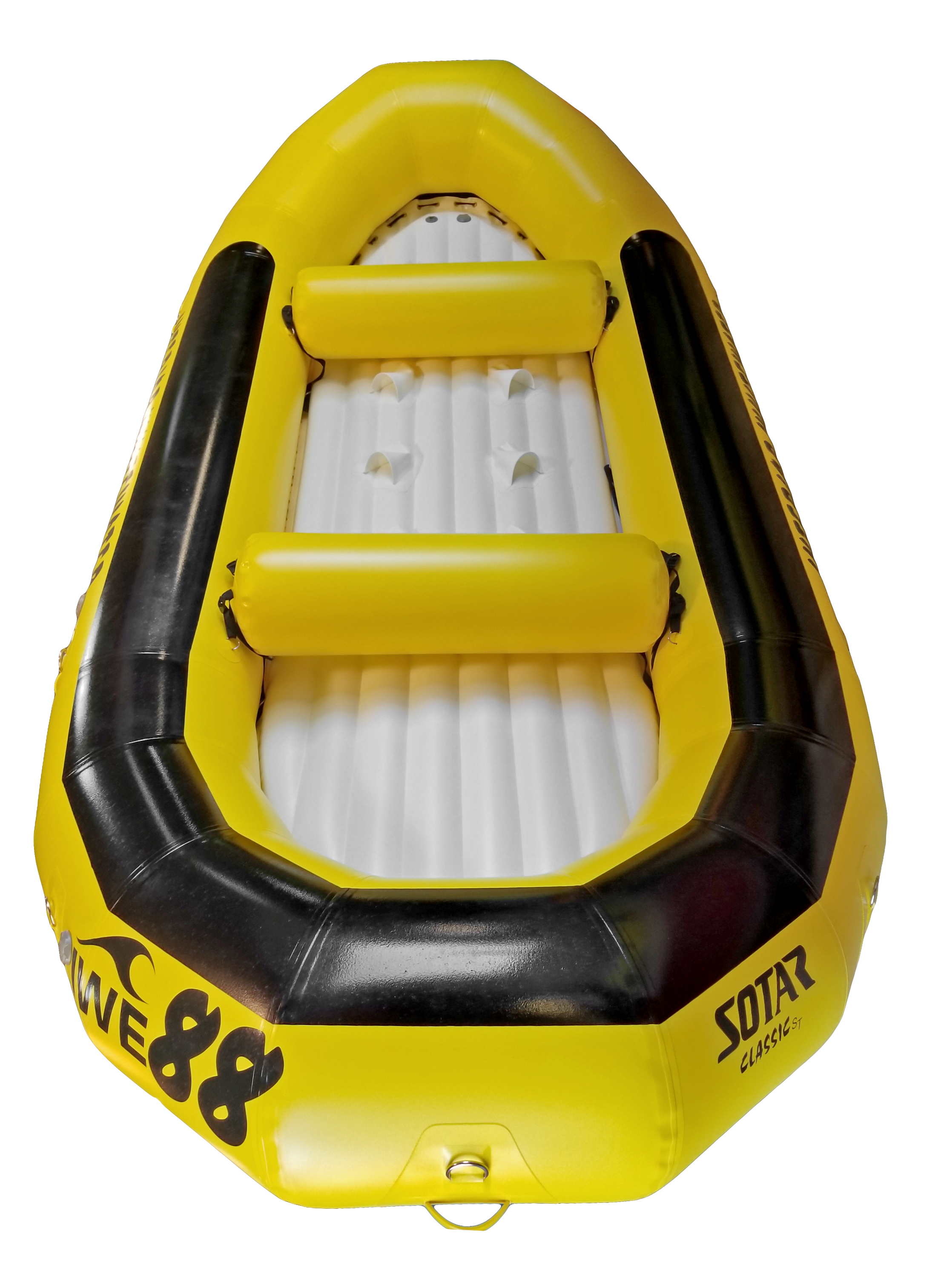

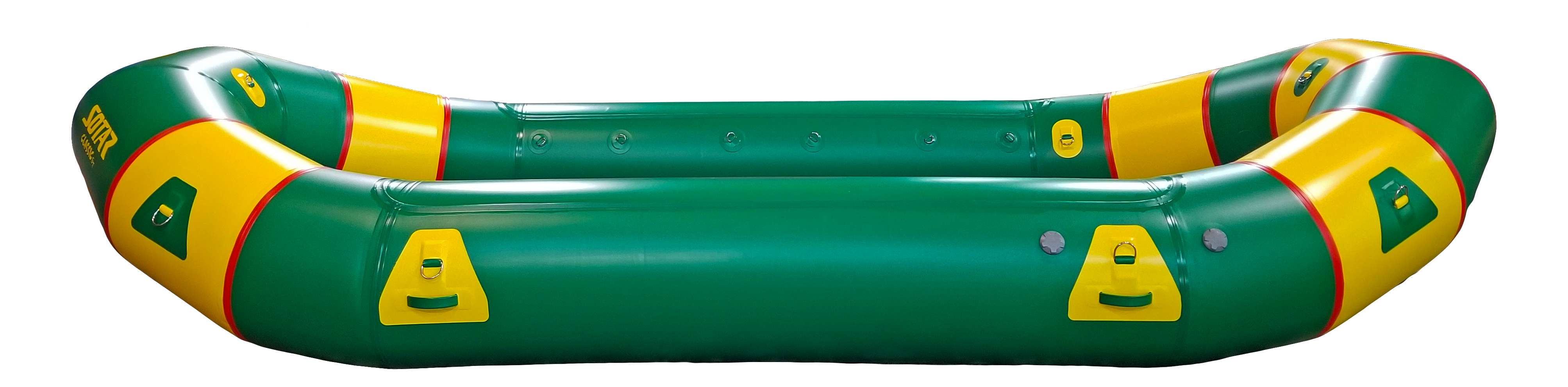

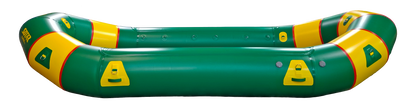

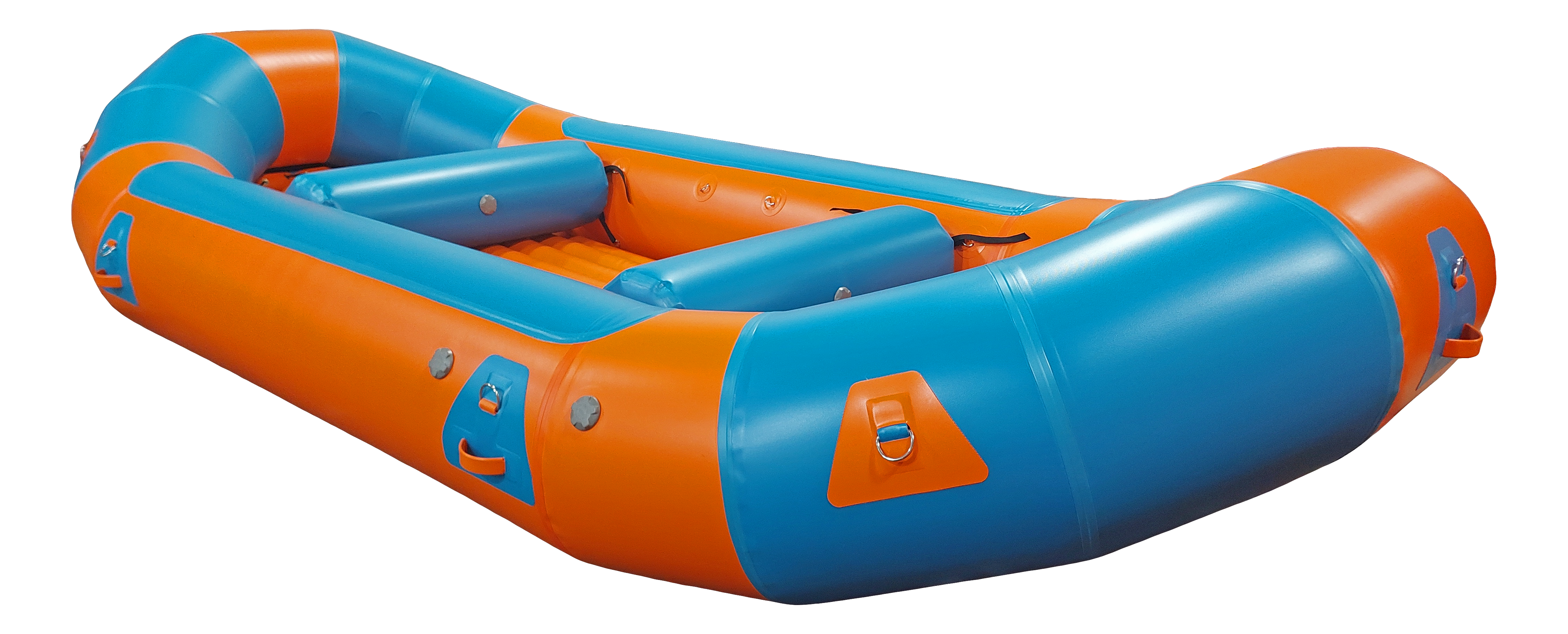

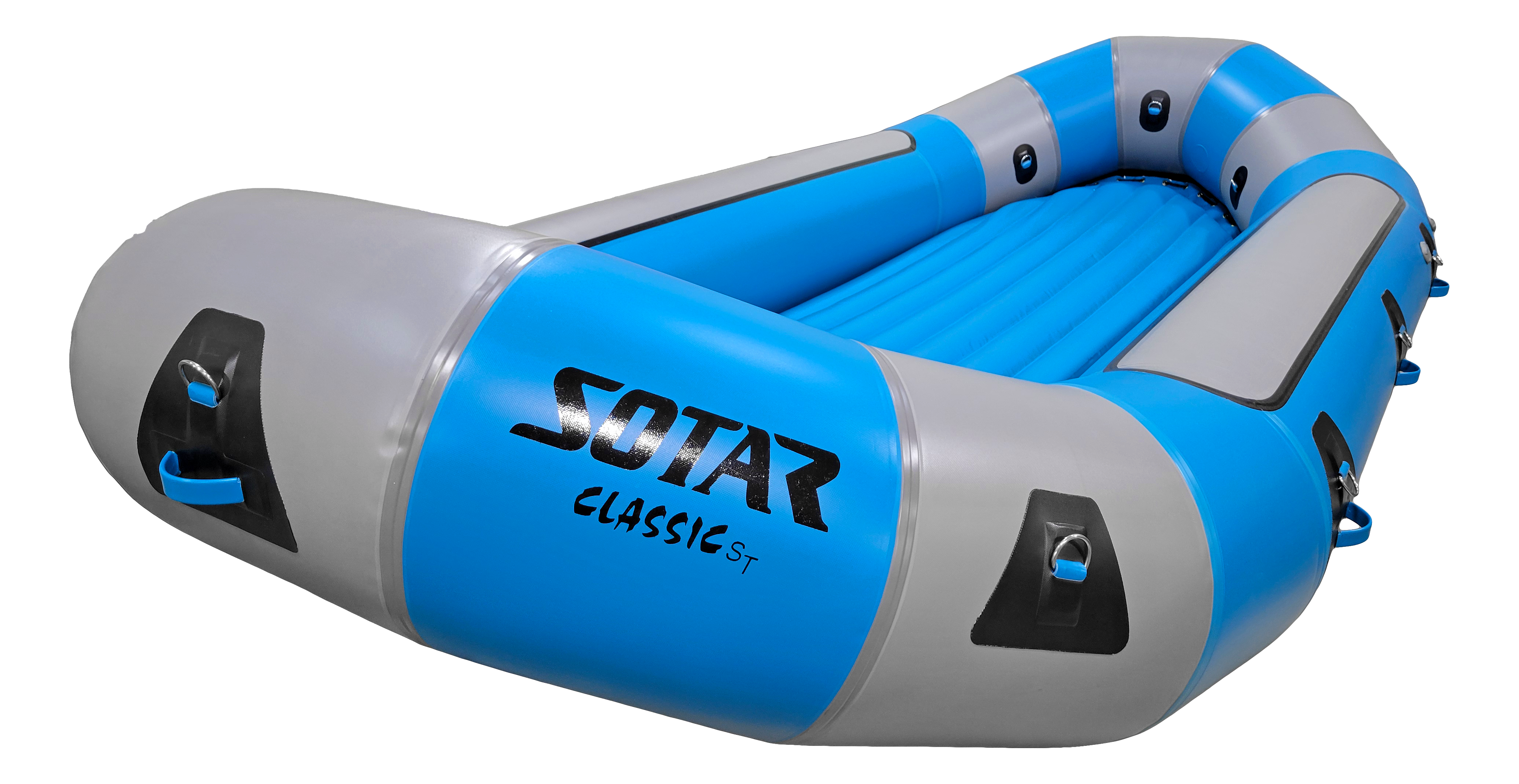

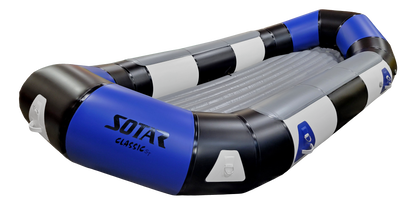

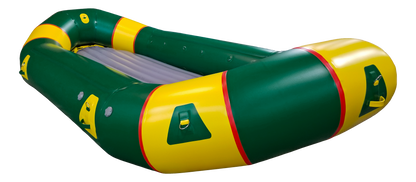

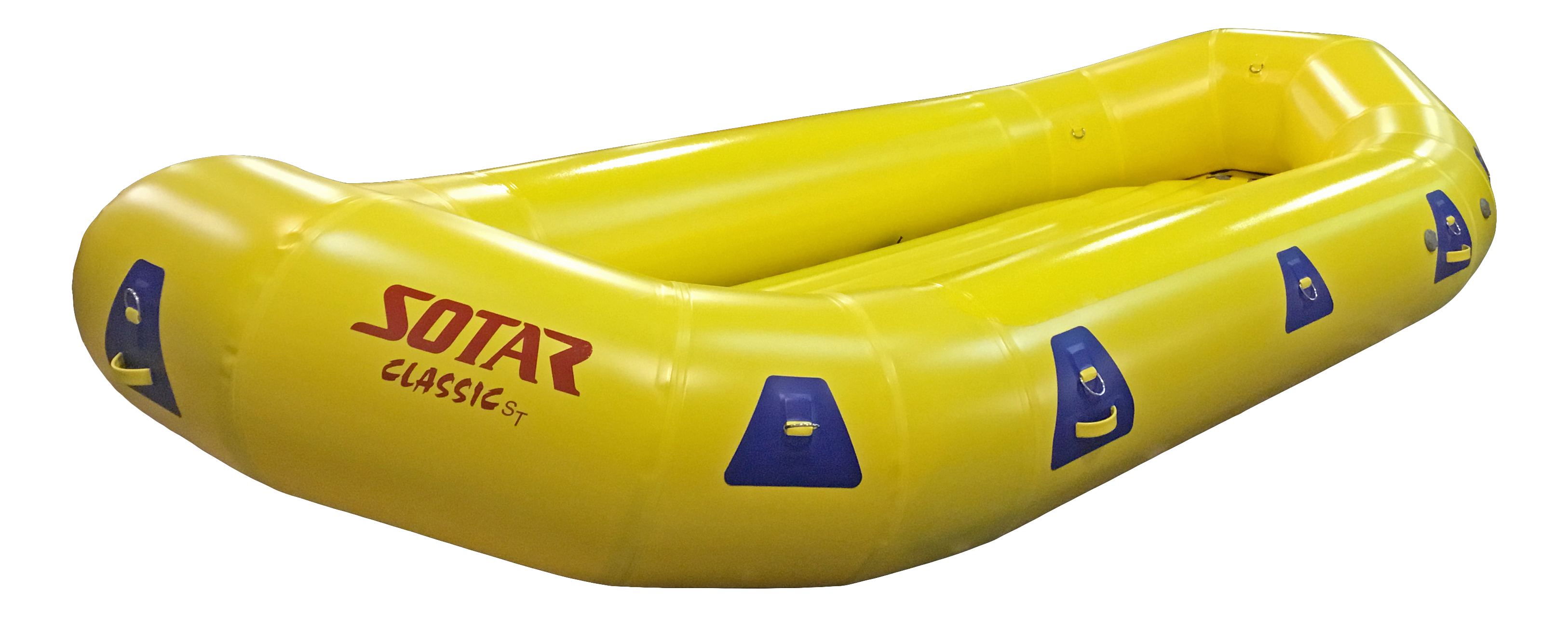

SOTAR ST 16' CLASSIC RAFT
PRODUCT INFORMATION
STR 16

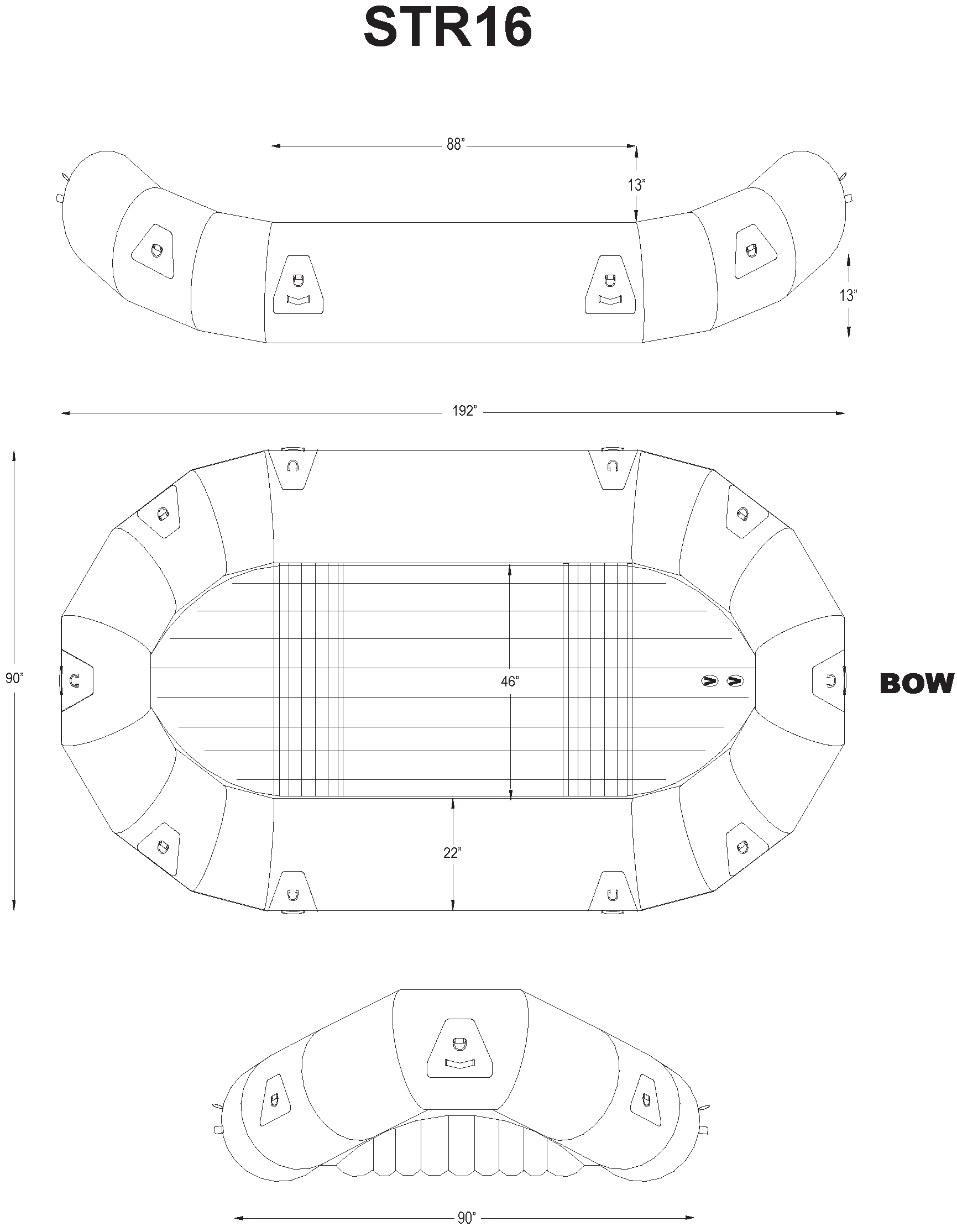

BUILD TEMPLATE
| MODEL | STR 16 |
|---|---|
| MATERIAL | 40oz REZCOAT URETHANE |
| LENGTH | 16 FEET |
| EXTERIOR WIDTH | 90 INCHES |
| TUBE DIAMETER | 22 INCHES |
| STRAIGHT SECTION | 88 INCHES |
| INTERIOR WIDTH | 46 INCHES |
| THWARTS | 2 THWARTS |
| THWART DIAMETER | 14 INCHES |
| FLOOR DROP | 15 INCHES |
| FLOOR THICKNESS | 6 INCHES |
| FLOOR I-BEAMS | 8 I-BEAMS |
| VALVE ORIENTATION | I |
| D-RINGS | 10 D-RINGS |
| HANDLES | 6 HANDLES |
| AIR CHAMBERS | 7 CHAMBERS |
| BOW & STERN RISE | 13 INCHES |
| BOW & STERN RAKE | 13 INCHES |
| LOAD CAPACITY | 2246 POUNDS (AT 1/3 SUBMERGENCE) |
| CAPACITY PERSONS | 10 PEOPLE |
| WEIGHT | 126 POUNDS |
| WARRANTY | 10 YEAR LIMITED |
wanna build your own unique
CONNECT WITH US
We want to build it with you.
NEED A DIFFERENT SIZE?
Featured collection
CUSTOMIZE YOUR
FOR COMPLETE CONTROL OVER YOUR FLOAT
DESIGN MODIFICATIONS
Together we can tailor the size and shape of your boat to perfectly suit your unique water or cargo requirements.
HANDLES & D-RINGS
Modify the placement and quantity of D-rings and handles to expand functionality and meet your specific needs.
LOGOS & GRAPHICS
Showcase your graphic designs prominently on the side of your boat for a personalized and professional touch.
CUSTOMIZED COLORS
Get a unique color scheme, including tubes, floors, thwarts and highlights to match your style or branding.
TOP CHAFE
Improve comfort, stability and protection with custom top chafe strips, offering extra grip for seating areas.
BOTTOM WRAP / CHAFE
Toughen up with a bottom wrap that sheilds your boat from rugged rapids and shallow water.
THWARTS
Secure seating positions and organization by modifying thwart placement or size to keep your paddlers comfortable during calm and wild rides.
VALVE PLACEMENT
Custom valve placement on your inflatable allows for optimized inflation, deflation, and accessibility based on specific user needs.
FOOT CUPS
Get more leverage for stronger paddle and keep paddlers balanced, by installing foot cups that anchor your feet securely in place.
HANDMADE IN THE USA
BY SKILLED CRAFTMEN AND RIVER GUIDES
WHO FLOAT THE ROGUE RIVER WITH OUR
FAQs
Also check out our GENERAL FAQs page to learn more.
How long will it take you to build my boat after I order?
While all our boats are made-to-order, they do not enter our production process immediately after the order is placed. Your order will be put in our standard queue and our current lead time is around 8 weeks +/-.
If your looking to get a boat right now, check out what we have instock.
Am I making a deposit?
Not on orders purchased through our online store. A 50% deposit is required on custom build phone orders.
What does your warranty cover?
We provide a limited warranty on our rafts, catarafts, tubes, and inflatable kayaks, covering up to 10 years for recreational use and 6 years for commercial use.
