Predator 1 Bay Cat Frame

SOTAR Predator 1 Bay Cat Frame

A fun compact frame with dry box storage, this is the Predator 1 Bay cat frame. This all welded aluminum frame comes standard with one removable dry box, adjustable seat mount, and an adjustable foot bar. Best suited for a 10' to 12'6" tubes however can be modified larger tubes. Straps not included.

Available Options

Aluminum cup holder, ammo can with sling, captains box, full width bench seat, rocket box with sling, double rail with or without diamond plate walkway, umbrella holder, aluminum rower section floor, kitchen box upgrade, and powder coating.

Specifically for this frame, a cooler bay can be substituted with a dry box giving flexibility to your Predator 1 bay frame.


  • Fully welded aluminum frame
  • One removable dry box, outfitter pin & clip system
  • Adjustable seat mount
  • Adjustable foot bar

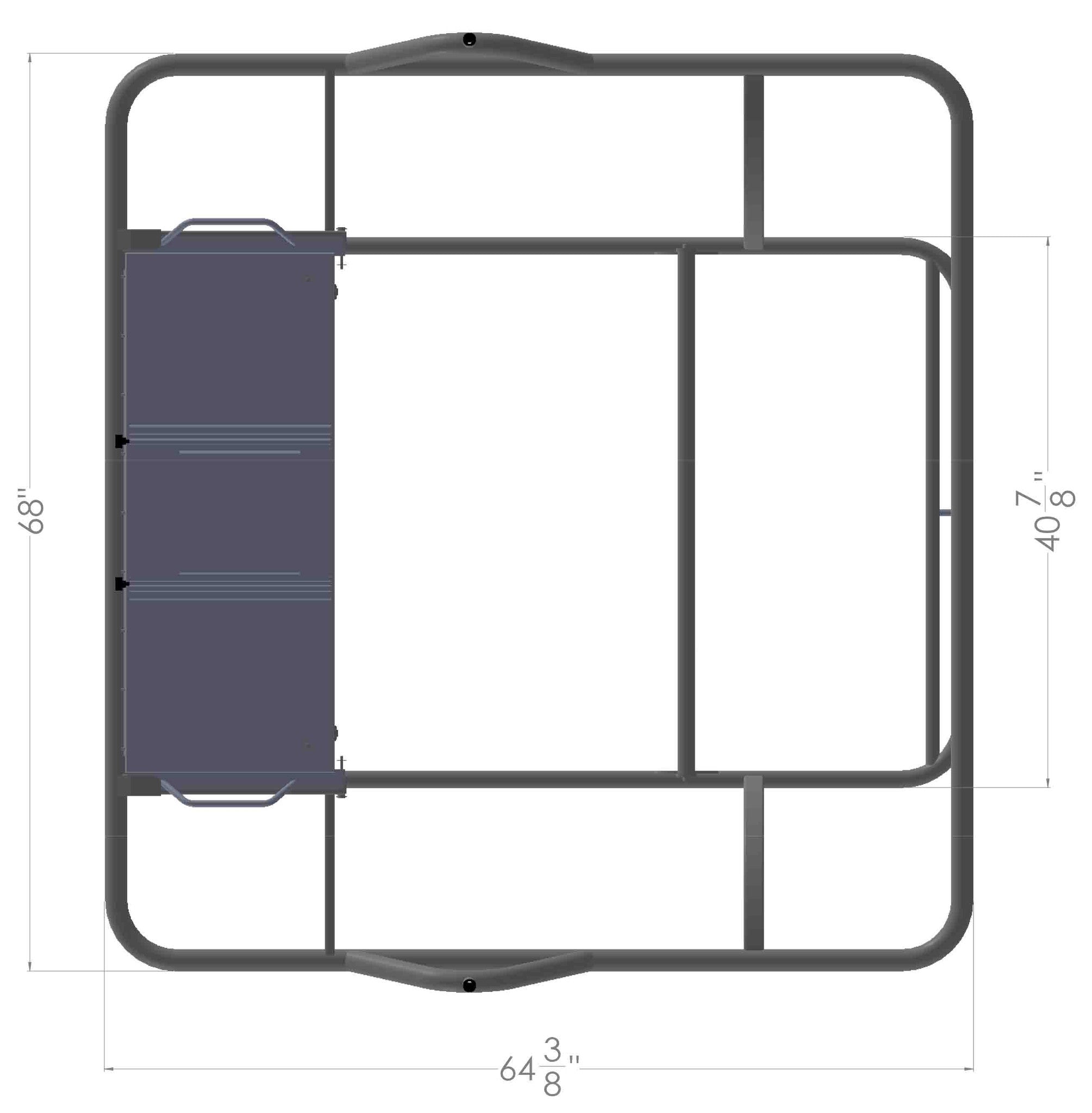

  • Length: 64 3/8" +/-
  • Width: 68" +/-
  • Inside width: 40 7/8"

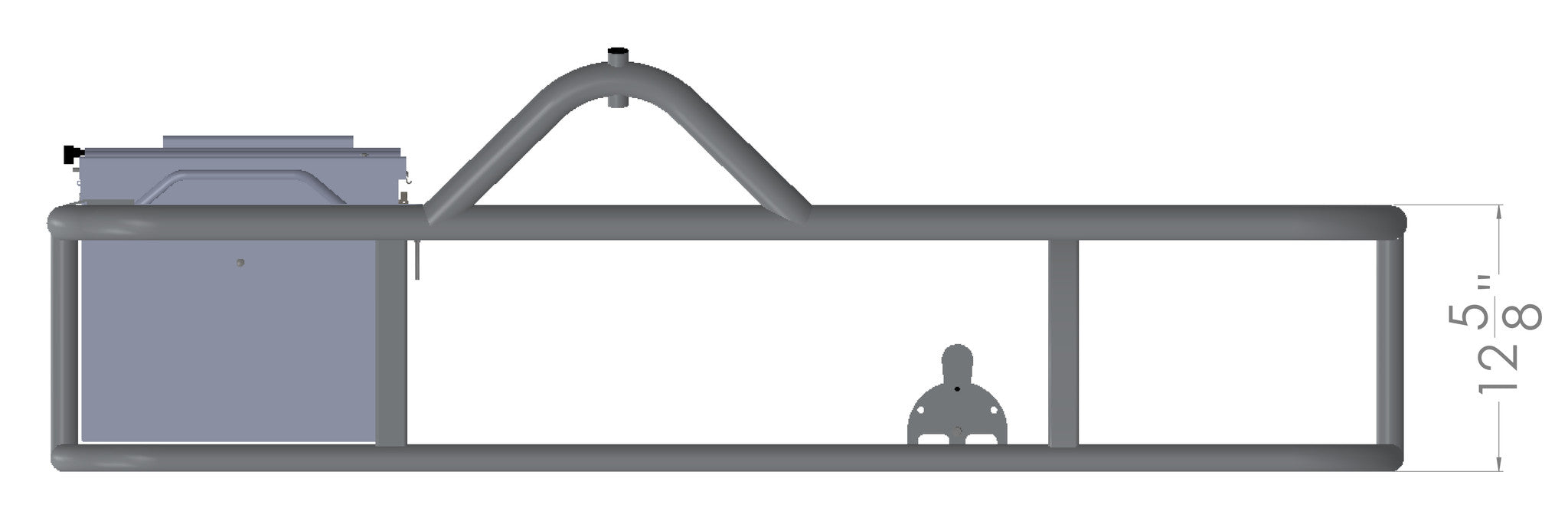

  • Drop: 12 5/8" +/-

***Webbing for the floor is not included please contact for information***
