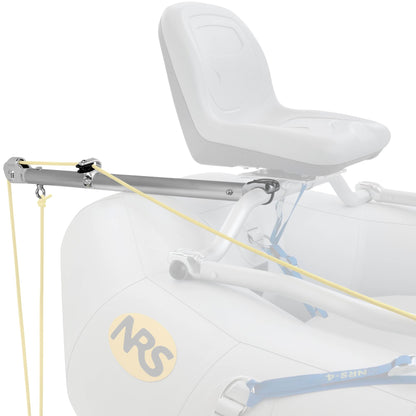

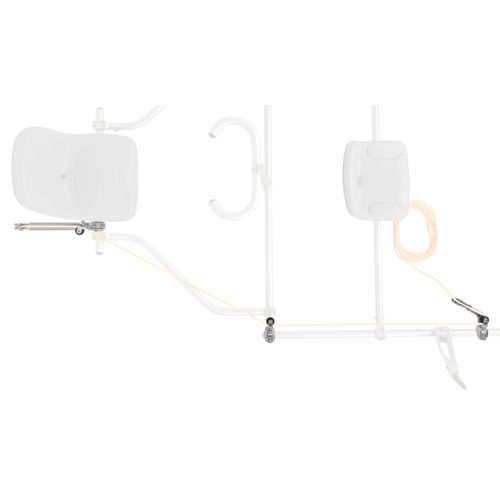

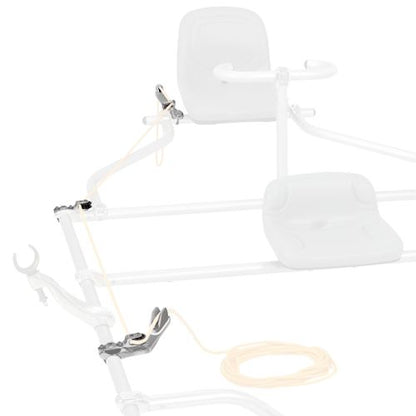

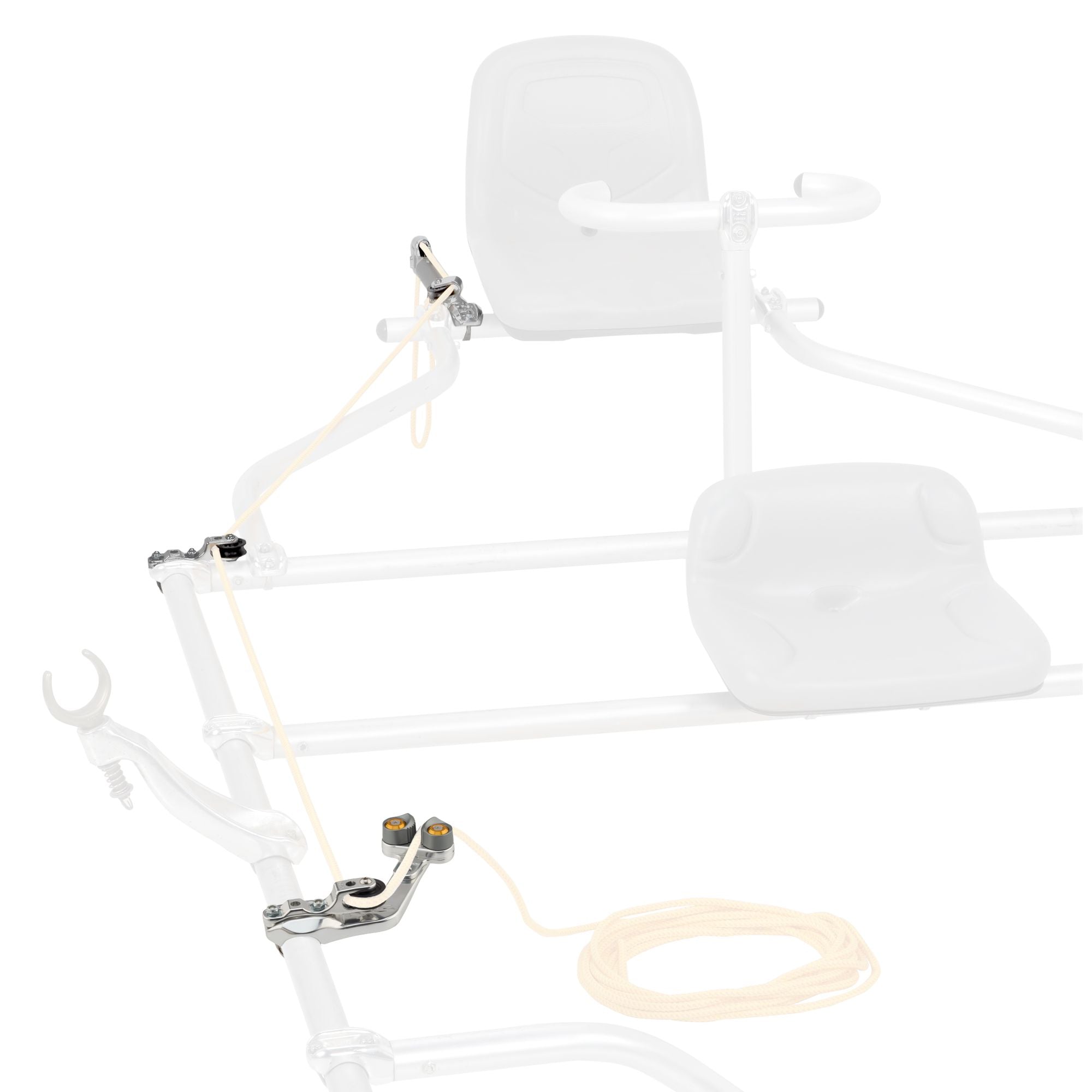

Raise or lower your anchor seamlessly without leaving the guide seat or breaking a sweat. The multi-craft NRS Frame Anchor System with 2:1 can attach to rafting frame bars and drop rails and yokes on Catarafts. This system mounts easily and the 2:1 system enhances ease of operation.

• Three main components, a remote bracket with a jam cleat and an intermediate pulley, create a 2:1 mechanical advantage, halving anchor weight when dropped or lowered.
• The stern pulley on the mast is slotted to allow for angle adjustment depending on the amount of kick the craft has. It is preset for maximum kick. For a flatter angle, loosen the bolt and nut and adjust to the desired angle and tighten.

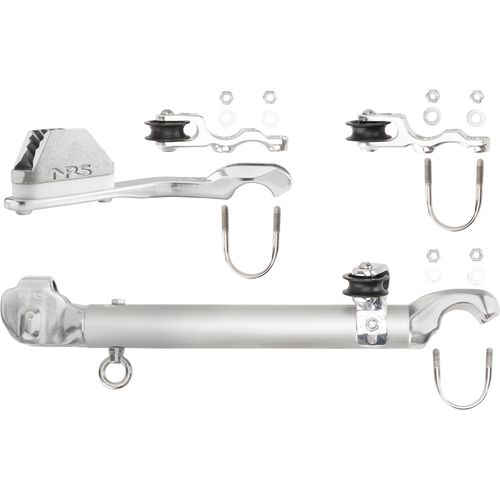

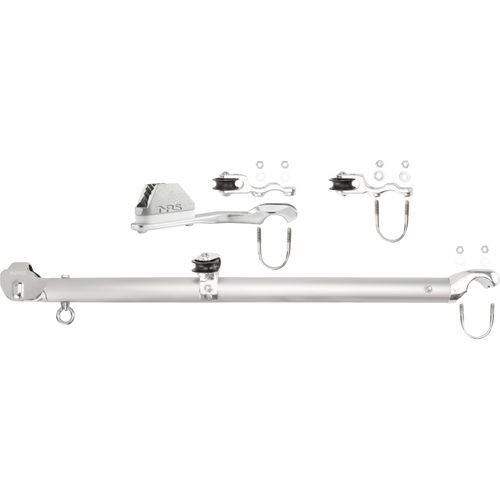

• 1 - Anchor Control System with Rope Jam Cleat 2 - Intermediate Pulley 1 - Anchor Mast 1 - U-bolt with nuts and washers 2 - Oversized U-bolts with nuts and washers



  	A	B	C	D

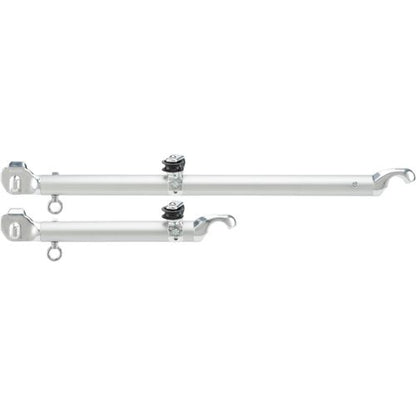

  Long Mast	26"	13 3/4"	1"	31"
  Standard Mast	12"	13 3/4"	1"	17"
